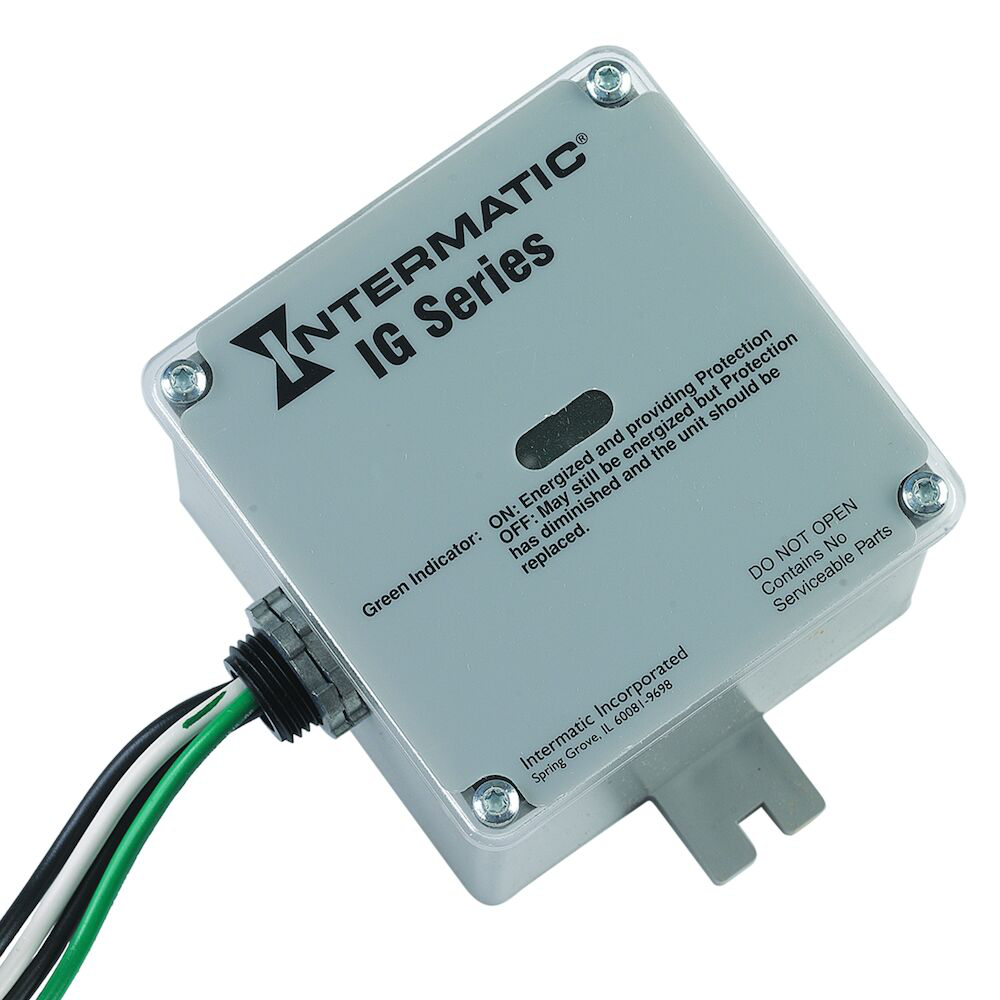

Features

• Six modes of surge protection
• TPMOV® surge protection technology
• Green LED indicator provides status of protection
• Type 3R rainproof enclosure for indoor/outdoor applications in plastic
• 5-year product warranty
• $10,000 connected equipment warranty on appliances and electronics
• UL Listed to ANSI/UL 1449 5th edition

Compliance

• UL Standard -> ANSI/UL 1449 5th Edition

Prop 65

• Please see the Warning @ www.P65Warnings.ca.gov - DEHP

Specifications

• Country of Origin: Mexico
• Product Height: 4.1875 in; 106.4 mm
• Product Depth: 3.4375 in; 87.3 mm
• Wire Lead Length: 30 in; 762 mm
• Operating Temperature Min: -31°F; -35°C
• Operating Temperature Max: 185°F; 85°C
• Warranty Period: 5-Year limited
• Modes Of Protection: 6 (L1-N, L2-N, L1-G, L2-G, N-G, L1-L2)
• Nominal Discharge Current: 20 kA
• Short Circuit Current Rating: 100 kA
• Number Of Wire Leads: 4
• Voltage Protection Rating LN: 700
• Connected Equipment Warranty Coverage: 10000
• Voltage Protection Rating LL: 1200
• Applications: Whole Home Protection
• Wiring Option: Wire leads
• Surge Protection Technology: TPMOV®
• Wire Size Max: #12 AWG, Tinned Copper
• Surge Protection Types: 1; 2
• Enclosure Type: Outdoor type 3R plastic
• LED Surge Protection Indicator: Green
• Number Of Power Phases: Single
• PDF Standards And Certifications: cCSAus
• Maximum Surge Current Rating Per Phase: 50 kA
• Voltage: 120/240 VAC Single-Phase

Certifications

• CSA Certification: cCSAus SPD Type 1;cCSAus SPD Type 2

Voltage

• Maximum Continuous Operating Voltage LG: 300
• Maximum Continuous Operating Voltage LL: 300
• Maximum Continuous Operating Voltage LN: 150
• Maximum Continuous Operating Voltage NG: 150
