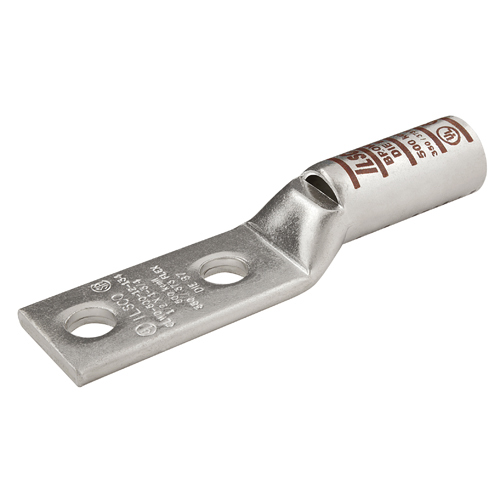

Specifications

• Height: 1.358 in | 34.4932 mm
• Length: 5.027 in | 127.6858 mm
• Weight: 0.755135389584417 lbs
• Width: 1.313 in | 33.3502 mm

Additional Technical Specifications

• Conductor Type: Flex, Stranded

Additional Class Attributes

• Barrel Marking: Ink
• Barrel Type: Long
• Connecting Angle: 180°
• Connection: Compression
• Contains DE-OX®: No
• Flared End: No
• ILSCOs Die Catalog Number: ILD-106
• ILSCOs Die Index Number: I-106
• Mounting Hole Type: Thru
• Narrow Tang: Yes
• Number of Mounting Holes: 1
• Sight Window: Yes
• Slotted: No
• Tang End Shape: Square
• Undrilled: No

Material and Finish

• Conductor Material: Copper
• Connector Finish: Tin
• Material: Copper

Bolt and Screw Sizes

• Mounting Bolt/Stud Size: 1/2

Environment and Temperature

• Temperature Rating: 90°C

Conductor Ranges

• Conductor Range CU Stranded (Primary, run, main, line): 750 kcmil
• Expanded Conductor Range: 750 kcmil - 500 kcmil
• Flex Conductor Range: 600 G,H,I,M 646.4 DLO

Color

• Color: Silver
• Color Code: Black

Voltage

• Voltage Rating: 35 kV

Testing Standards

• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• NEBS Rating: Level 3
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• UL Control Number: 453G
• UL / CULUS Specification: UL 486A/B Listed
• UL File Number: E6207

Dimensions

• Barrel Length (IN): 2.875
• Barrel Length (mm): 73.025
• Dimension G (IN): 0.546
• Dimension G (mm): 13.8684
• Height BX (IN): 2
• Height (mm): 34.4932
• Inside Diameter (IN): 1.031
• Inside Diameter (mm): 26.1874
• Length (mm): 127.6858
• Mounting Bolt/Stud Size (mm): 304.8
• Mounting Hole Diameter (IN): 0.562
• Mounting Hole Diameter (mm): 14.2748
• Mounting Hole Spacing (mm): 0
• Outside Diameter (IN): 1.313
• Outside Diameter (mm): 33.3502
• Strip Length (mm): 74.6125
• Tang Length (IN): 1.25
• Tang Length (mm): 31.75
• Tang Thickness (IN): 0.36
• Tang Thickness (mm): 9.144
• Tang Width (IN): 1.298
• Tang Width (mm): 32.9692
• Weight BX (LB): 4.7741
• Width BX (IN): 6.184
• Width (mm): 33.3502

General

• Bag Quantity: 1
• Carton Quantity Description: STD PACK QTY 6
• Direct Burial: No
• Dual Rated: No
• NEMA Code: S-588-3
• UPC Code: 78366968621
