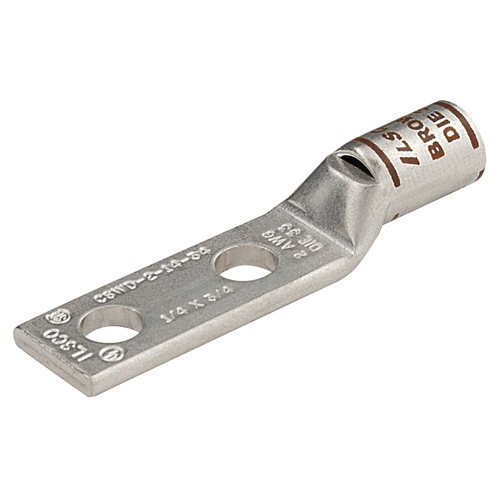

Specifications

• Height: 0.929 in | 23.5966 mm
• Length: 3.623 in | 92.0242 mm
• Weight: 0.252714174353521 lbs
• Width: 1.291 in | 32.7914 mm

Additional Technical Specifications

• Conductor Type: Stranded, Flex

Additional Class Attributes

• Barrel Marking: Ink
• Barrel Type: Standard
• Connecting Angle: 180°
• Connection: Compression
• Contains DE-OX®: No
• Flared End: No
• ILSCOs Die Catalog Number: ILD-71
• ILSCOs Die Index Number: I-71
• Mounting Hole Type: Thru
• Narrow Tang: No
• Number of Mounting Holes: 2
• Sight Window: Yes
• Slotted: No
• Tang End Shape: Square
• Undrilled: No

Material and Finish

• Conductor Material: Copper
• Connector Finish: Tin
• Material: Copper

Bolt and Screw Sizes

• Mounting Bolt/Stud Size: 3/8

Environment and Temperature

• Temperature Rating: 90°C

Conductor Ranges

• Conductor Range CU Stranded (Primary, run, main, line): 350 kcmil
• Expanded Conductor Range: 350 kcmil - 3/0 Str
• Flex Conductor Range: 250 I,K,M 262.2 DLO

Color

• Color: Silver
• Color Code: Red

Voltage

• Voltage Rating: 35 kV

Testing Standards

• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• NEBS Rating: Level 3
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• UL Control Number: 453G
• UL / CULUS Specification: UL 467 Listed, UL 486A/B Listed
• UL File Number: E6207

Dimensions

• Barrel Length (IN): 1.063
• Barrel Length (mm): 27.0002
• Dimension G (IN): 0.414
• Dimension G (mm): 10.5156
• Height BX (IN): 2
• Height (mm): 23.5966
• Inside Diameter (IN): 0.703
• Inside Diameter (mm): 17.8562
• Length (mm): 92.0242
• Mounting Bolt/Stud Size (mm): 965.2
• Mounting Hole Diameter (IN): 0.406
• Mounting Hole Diameter (mm): 10.3124
• Mounting Hole Spacing (IN): 1
• Mounting Hole Spacing (mm): 25.4
• Outside Diameter (IN): 0.889
• Outside Diameter (mm): 22.5806
• Strip Length (mm): 28.575
• Tang Length (IN): 1.937
• Tang Length (mm): 49.1998
• Tang Thickness (IN): 0.187
• Tang Thickness (mm): 4.7498
• Tang Width (IN): 1.291
• Tang Width (mm): 32.7914
• Weight BX (LB): 2.798
• Width BX (IN): 6.1875
• Width (mm): 32.7914

General

• Bag Quantity: 1
• Carton Quantity Description: STD PACK QTY 10
• Direct Burial: Yes
• Dual Rated: No
• NEMA Code: S-588-3
• UPC Code: 78366964361
