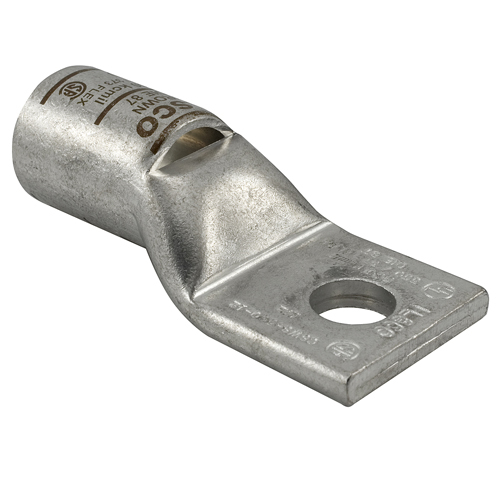

Specifications

• Height: 0.852 in | 21.6408 mm
• Length: 2.9 in | 73.66 mm
• Weight: 0.148966263549253 lbs
• Width: 1.189 in | 30.2006 mm

Additional Technical Specifications

• Conductor Type: Flex, Stranded

Additional Class Attributes

• Barrel Marking: Ink
• Barrel Type: Standard
• Connecting Angle: 180°
• Connection: Compression
• Contains DE-OX®: No
• Flared End: No
• ILSCOs Die Catalog Number: ILD-66
• ILSCOs Die Index Number: I-66
• Mounting Hole Type: Thru
• Narrow Tang: No
• Number of Mounting Holes: 1
• Sight Window: Yes
• Slotted: No
• Tang End Shape: Square
• Undrilled: No

Material and Finish

• Conductor Material: Copper
• Connector Finish: Tin
• Material: Copper

Bolt and Screw Sizes

• Mounting Bolt/Stud Size: 1/2

Environment and Temperature

• Temperature Rating: 90°C

Conductor Ranges

• Conductor Range CU Stranded (Primary, run, main, line): 300 kcmil
• Expanded Conductor Range: 300 kcmil - 2/0 Str
• Flex Conductor Range: 250 G,H

Color

• Color: Silver
• Color Code: White

Voltage

• Voltage Rating: 35 kV

Testing Standards

• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• NEBS Rating: Level 3
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• ROHS Indicator: IND
• UL Control Number: 453G
• UL / CULUS Specification: UL 486A/B Listed, UL 467 Listed
• UL File Number: E6207

Dimensions

• Barrel Length (IN): 1.063
• Barrel Length (mm): 27.0002
• Dimension G (IN): 0.546
• Dimension G (mm): 13.8684
• Height BX (IN): 2.25
• Height (mm): 21.6408
• Inside Diameter (IN): 0.66
• Inside Diameter (mm): 16.764
• Length (mm): 73.66
• Mounting Bolt/Stud Size (mm): 304.8
• Mounting Hole Diameter (IN): 0.562
• Mounting Hole Diameter (mm): 14.2748
• Mounting Hole Spacing (mm): 0
• Outside Diameter (IN): 0.812
• Outside Diameter (mm): 20.6248
• Strip Length (mm): 28.575
• Tang Length (IN): 1.25
• Tang Length (mm): 31.75
• Tang Thickness (IN): 0.152
• Tang Thickness (mm): 3.8608
• Tang Width (IN): 1.189
• Tang Width (mm): 30.2006
• Weight BX (LB): 2.42
• Width BX (IN): 5
• Width (mm): 30.2006

General

• Bag Quantity: 1
• Carton Quantity Description: STD PACK QTY 10
• Direct Burial: Yes
• Dual Rated: No
• NEMA Code: S-588-3
• UPC Code: 78366964189
