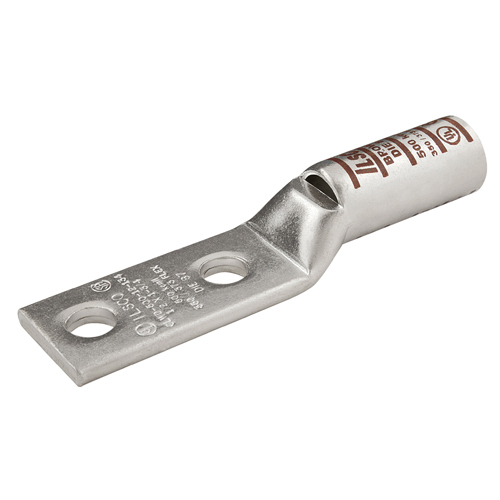

Specifications

• Height: 0.79 in | 20.066 mm
• Length: 4.719 in | 119.8626 mm
• Weight: 0.224146695556165 lbs
• Width: 1.088 in | 27.6352 mm

Additional Technical Specifications

• Conductor Type: Flex, Stranded

Additional Class Attributes

• Barrel Marking: Ink
• Barrel Type: Long
• Connecting Angle: 180°
• Connection: Compression
• Contains DE-OX®: No
• Flared End: No
• ILSCOs Die Catalog Number: ILD-62
• ILSCOs Die Index Number: I-62
• Mounting Hole Type: Thru
• Narrow Tang: No
• Number of Mounting Holes: 2
• Sight Window: Yes
• Slotted: No
• Tang End Shape: Square
• Undrilled: No

Material and Finish

• Conductor Material: Copper
• Connector Finish: Tin
• Material: Copper

Bolt and Screw Sizes

• Mounting Bolt/Stud Size: 1/2

Environment and Temperature

• Temperature Rating: 90°C

Conductor Ranges

• Conductor Range CU Stranded (Primary, run, main, line): 250 kcmil
• Expanded Conductor Range: 250 kcmil - 1/0 Str
• Flex Conductor Range: 4/0 G,H,I,K,M,DLO

Color

• Color: Silver
• Color Code: Yellow

Voltage

• Voltage Rating: 35 kV

Testing Standards

• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• NEBS Rating: Level 3
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• UL Control Number: 453G
• UL / CULUS Specification: UL 467 Listed, UL 486A/B Listed
• UL File Number: E6207

Dimensions

• Barrel Length (IN): 1.688
• Barrel Length (mm): 42.8752
• Dimension G (IN): 0.546
• Dimension G (mm): 13.8684
• Height BX (IN): 2
• Height (mm): 20.066
• Inside Diameter (IN): 0.593
• Inside Diameter (mm): 15.0622
• Length (mm): 119.8626
• Mounting Bolt/Stud Size (mm): 304.8
• Mounting Hole Diameter (IN): 0.562
• Mounting Hole Diameter (mm): 14.2748
• Mounting Hole Spacing (IN): 1.25
• Mounting Hole Spacing (mm): 31.75
• Outside Diameter (IN): 0.75
• Outside Diameter (mm): 19.05
• Strip Length (mm): 44.45
• Tang Length (IN): 2.5
• Tang Length (mm): 63.5
• Tang Thickness (IN): 0.157
• Tang Thickness (mm): 3.9878
• Tang Width (IN): 1.088
• Tang Width (mm): 27.6352
• Weight BX (LB): 2.538
• Width BX (IN): 6.1875
• Width (mm): 27.6352

General

• Bag Quantity: 1
• Carton Quantity Description: STD PACK QTY 10
• Direct Burial: Yes
• Dual Rated: No
• NEMA Code: S-588-3
• UPC Code: 78366964159
