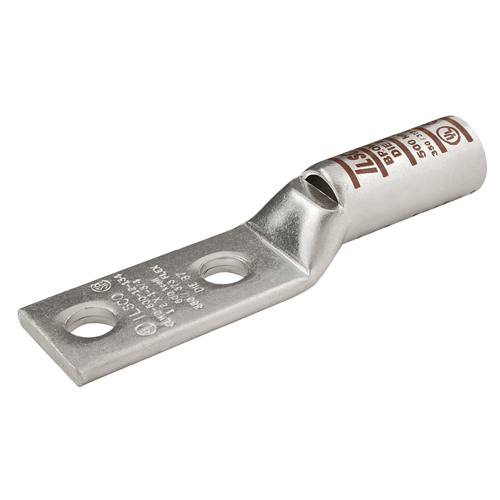

Specifications

• Height: 0.451 in | 11.4554 mm
• Length: 2.848 in | 72.3392 mm
• Weight: 0.0526647887416027 lbs
• Width: 0.599 in | 15.2146 mm

Additional Technical Specifications

• Conductor Type: Stranded, Solid

Additional Class Attributes

• Barrel Marking: Ink
• Barrel Type: Long
• Connecting Angle: 180°
• Connection: Compression
• Contains DE-OX®: No
• Flared End: No
• ILSCOs Die Catalog Number: ILD-33
• ILSCOs Die Index Number: I-33
• Mounting Hole Type: Thru
• Narrow Tang: No
• Number of Mounting Holes: 2
• Sight Window: Yes
• Slotted: No
• Tang End Shape: Square
• Undrilled: No

Material and Finish

• Conductor Material: Copper
• Connector Finish: Tin
• Material: Copper

Bolt and Screw Sizes

• Mounting Bolt/Stud Size: 1/4

Environment and Temperature

• Temperature Rating: 90°C

Conductor Ranges

• Conductor Range CU Solid (Primary, run, main, line): 2 Sol
• Conductor Range CU Stranded (Primary, run, main, line): 2 Str
• Expanded Conductor Range: 2 Str - 6 Str

Color

• Color: Silver
• Color Code: Brown

Voltage

• Voltage Rating: 35 kV

Testing Standards

• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• NEBS Rating: Level 3
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• UL Control Number: 453G
• UL / CULUS Specification: UL 467 Listed, UL 486A/B Listed
• UL File Number: E6207

Dimensions

• Barrel Length (IN): 1.125
• Barrel Length (mm): 28.575
• Dimension G (IN): 0.321
• Dimension G (mm): 8.1534
• Height BX (IN): 2.25
• Height (mm): 11.4554
• Inside Diameter (IN): 0.312
• Inside Diameter (mm): 7.9248
• Length (mm): 72.3392
• Mounting Hole Diameter (IN): 0.281
• Mounting Hole Diameter (mm): 7.1374
• Mounting Hole Spacing (IN): 0.75
• Mounting Hole Spacing (mm): 19.05
• Outside Diameter (IN): 0.421
• Outside Diameter (mm): 10.6934
• Strip Length (mm): 30.1498
• Tang Length (IN): 1.437
• Tang Length (mm): 36.4998
• Tang Thickness (IN): 0.109
• Tang Thickness (mm): 2.7686
• Tang Width (IN): 0.599
• Tang Width (mm): 15.2146
• Weight BX (LB): 2.285
• Width BX (IN): 5
• Width (mm): 15.2146

General

• Bag Quantity: 1
• Carton Quantity Description: STD PACK QTY 25
• Direct Burial: Yes
• Dual Rated: No
• NEMA Code: S-588-3
• UPC Code: 78366963351
