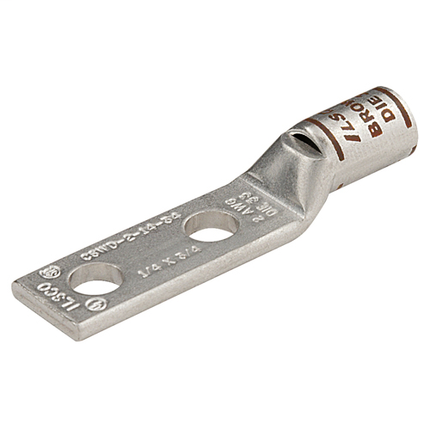

Specifications

• UPC Code: 78366963485
• UNSPSC Code: 39121448
• Dual Rated: FALSE
• Conductor Range CU Stranded (Primary, run, main, line): 1 Str
• Conductor Size CU (Primary, run, main, line): 1 Str
• Flex Conductor Range: 2 G,H,I,K,M,DLO
• Flex Conductor Size (Class G): 2 G
• Flex Conductor Size (Class H): 2 H
• Flex Conductor Size (Class I): 2 I
• Flex Conductor Size (Class K): 2 K
• Flex Conductor Size (Class M): 2 M
• Flex Conductor Size (Class DLO): 2 DLO
• Expanded Conductor Range: 1 Str - 6 Str
• Expanded Conductor Size: 1 Str,2 Str,3 Str,4 Str,5 Str,6 Str
• Mounting Bolt/Stud Size: 1/4/2020
• Length (IN): 2.392
• Length (mm): 60.7568
• Width (IN): 0.673
• Width (mm): 17.0942
• Height (IN): 0.499
• Height (mm): 12.6746
• Weight (LB): 0.049546575
• Barrel Length (IN): 0.625
• Barrel Length (mm): 15.875
• Dimension G (IN): 0.321
• Dimension G (mm): 8.1534
• Inside Diameter (IN): 0.359
• Inside Diameter (mm): 9.1186
• Mounting Hole Diameter (IN): 0.281
• Mounting Hole Diameter (mm): 7.1374
• Mounting Hole Spacing (IN): 0.75
• Mounting Hole Spacing (mm): 19.05
• Outside Diameter (IN): 0.469
• Outside Diameter (mm): 11.9126
• Strip Length (mm): 17.4498
• Tang Length (IN): 1.437
• Tang Length (mm): 36.4998
• Tang Thickness (IN): 0.109
• Tang Thickness (mm): 2.7686
• Tang Width (IN): 0.673
• Tang Width (mm): 17.0942
• Material: Copper
• Conductor Material: Copper
• Connector Finish: Tin
• Color: Silver
• Die Color Code: Green
• Direct Burial: TRUE
• Temperature Rating: 90°C
• Voltage Rating: 35 kV
• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• UL Control Number: 453G
• UL File Number: E6207
• UL / CULUS Specification: UL 486A/B Listed,UL 467 Listed
• NEBS Rating: Level 3
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• Barrel Marking: Ink
• Barrel Type: Standard
• Connection: Compression
• Connecting angle: 180°
• Conductor Type: Stranded,Flex
• Contains DE-OX: FALSE
• ILSCOs Die Catalog Number: ILD-37
• Flared End: FALSE
• Mounting Hole Type: Thru
• Narrow Tang: FALSE
• Number of Mounting Holes: 2
• Sight Window: TRUE
• Slotted: FALSE
• Tang End Shape: Square
• Undrilled: FALSE
• Bag Quantity: 1
• CrossSell: ILD-37, DE-OX-8OZ, TB-6DF1000-P
