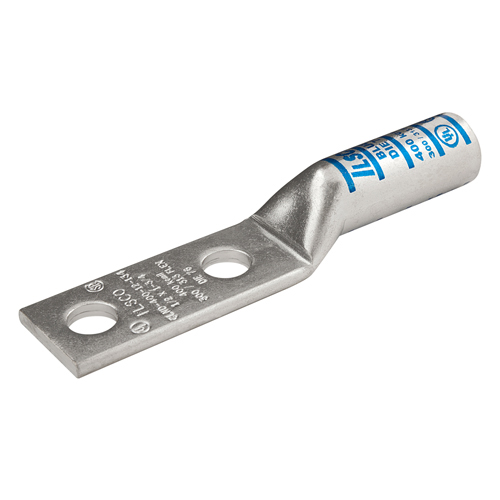

Specifications

• Height: 0.55 in | 13.97 mm
• Length: 3.543 in | 89.9922 mm
• Weight: 0.093458120989552 lbs
• Width: 0.738 in | 18.7452 mm

Additional Technical Specifications

• Conductor Type: Flex, Stranded

Additional Class Attributes

• Barrel Marking: Ink
• Barrel Type: Long
• Connecting Angle: 180°
• Connection: Compression
• Contains DE-OX®: No
• Flared End: No
• ILSCOs Die Catalog Number: ILD-42
• ILSCOs Die Index Number: I-42
• Mounting Hole Type: Thru
• Narrow Tang: No
• Number of Mounting Holes: 2
• Sight Window: No
• Slotted: No
• Tang End Shape: Square
• Undrilled: No

Material and Finish

• Conductor Material: Copper
• Connector Finish: Tin
• Material: Copper

Bolt and Screw Sizes

• Mounting Bolt/Stud Size: 5/16

Environment and Temperature

• Temperature Rating: 90°C

Conductor Ranges

• Conductor Range CU Stranded (Primary, run, main, line): 1/0 Str
• Expanded Conductor Range: 1/0 Str - 6 Str
• Flex Conductor Range: 1 G,H,I,K,M,DLO

Color

• Color: Silver
• Color Code: Pink

Voltage

• Voltage Rating: 35 kV

Dimensions

• Barrel Length (IN): 1.5
• Barrel Length (mm): 38.1
• Dimension G (IN): 0.352
• Dimension G (mm): 8.9408
• Height BX (IN): 2.25
• Height (mm): 13.97
• Inside Diameter (IN): 0.39
• Inside Diameter (mm): 9.906
• Length (mm): 89.9922
• Mounting Hole Diameter (IN): 0.343
• Mounting Hole Diameter (mm): 8.7122
• Mounting Hole Spacing (IN): 0.875
• Mounting Hole Spacing (mm): 22.225
• Outside Diameter (IN): 0.515
• Outside Diameter (mm): 13.081
• Strip Length (mm): 39.6748
• Tang Length (IN): 1.687
• Tang Length (mm): 42.8498
• Tang Thickness (IN): 0.125
• Tang Thickness (mm): 3.175
• Tang Width (IN): 0.738
• Tang Width (mm): 18.7452
• Weight BX (LB): 1.876
• Width BX (IN): 5
• Width (mm): 18.7452

Testing Standards

• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• NEBS Rating: Level 3
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• UL Control Number: 453G
• UL / CULUS Specification: UL 467 Listed, UL 486A/B Listed
• UL File Number: E6207

General

• Bag Quantity: 1
• Carton Quantity Description: STD PACK QTY 10
• Direct Burial: Yes
• Dual Rated: No
• NEMA Code: S-588-3
• UPC Code: 78366963630
