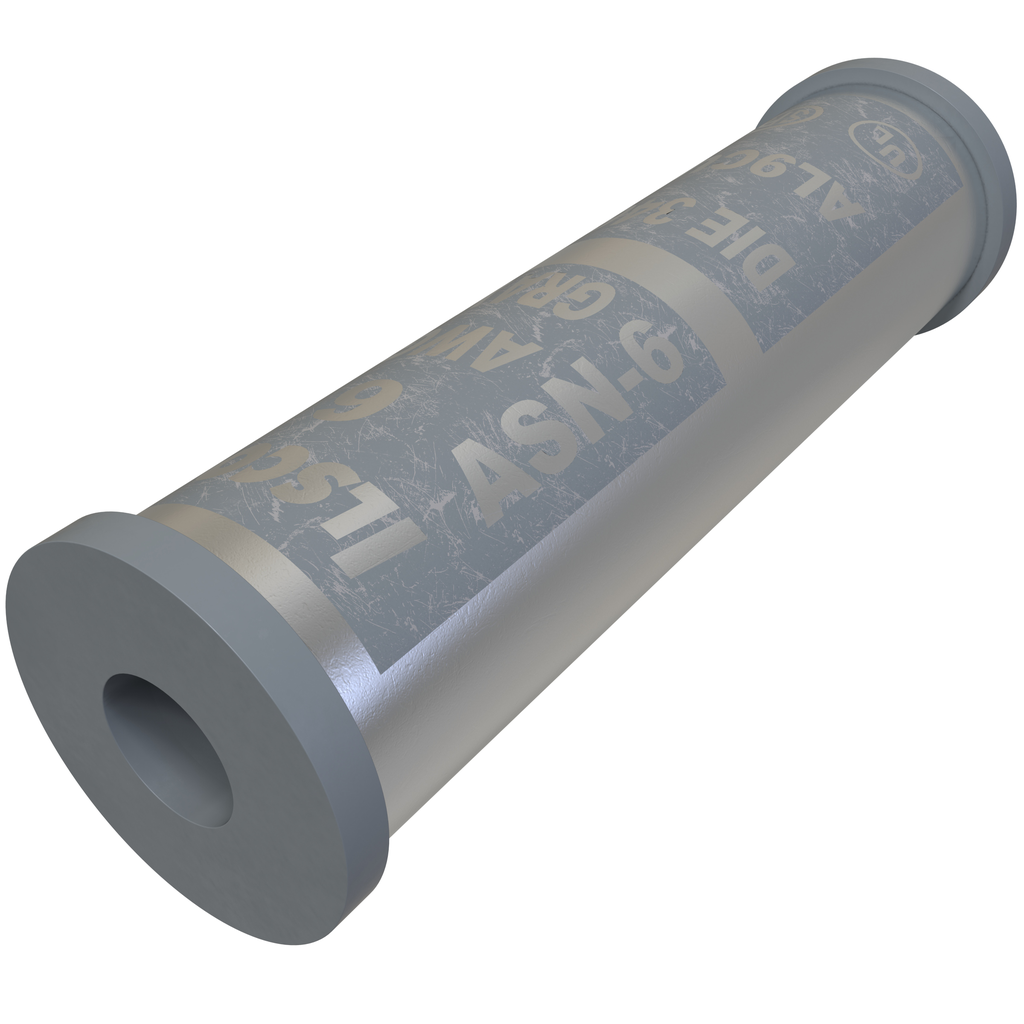

Specifications

• Height: 0.338 in | 8.5852 mm
• Length: 1.204 in | 30.5816 mm
• Weight: 0.007 lbs
• Width: 0.338 in | 8.5852 mm

Dimensions

• Height BX (IN): 2.25
• Height (mm): 8.5852
• Inside Diameter (IN): 0.194
• Inside Diameter (mm): 4.9276
• Length (mm): 30.5816
• Outside Diameter (IN): 0.338
• Outside Diameter (mm): 8.5852
• Weight BX (LB): 0.2367
• Width BX (IN): 5
• Width (mm): 8.5852

Additional Technical Specifications

• Conductor Type: Stranded

Additional Class Attributes

• Barrel Marking: Hard
• Barrel Type: Standard
• Connecting Angle: 180°
• Connection: Compression
• Contains DE-OX®: Yes
• Flared End: No
• ILSCOs Die Index Number: 346
• Number of Conductors: 1
• Sight Window: No
• Slotted: No

Material and Finish

• Conductor Material: Aluminum, Copper
• Connector Finish: Tin
• Material: Aluminum

Conductor Ranges

• Conductor Range AL Stranded (Primary, run, main, line): 6 Str
• Conductor Range CU Stranded (Primary, run, main, line): 6 Str
• Expanded Conductor Range: 6 Str

Environment and Temperature

• Temperature Rating: 90°C

Color

• Color: Silver
• Color Code: Gray

Voltage

• Voltage Rating: 35 kV

Testing Standards

• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• UL Control Number: 453G
• UL / CULUS Specification: UL 486A/B Listed
• UL File Number: E6207

General

• Bag Quantity: 1
• Carton Quantity Description: STD PACK QTY 20
• Dual Rated: Yes
• NEMA Code: S-588-1
• UPC Code: 78366918472
