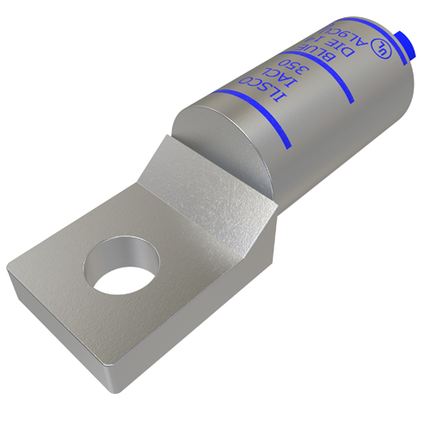

Specifications

• Height: 1.212 in | 30.7848 mm
• Length: 3.69 in | 93.726 mm
• Weight: 0.319 lbs
• Width: 1.25 in | 31.75 mm

Additional Technical Specifications

• Conductor Type: Stranded

Additional Class Attributes

• Barrel Marking: Roll
• Barrel Type: Long
• Connecting Angle: 180°
• Connection: Compression
• Contains DE-OX®: Yes
• Flared End: No
• ILSCOs Die Catalog Number: ILD-14
• ILSCOs Die Index Number: 14
• Mounting Hole Type: Thru
• Narrow Tang: No
• Number of Mounting Holes: 1
• Sight Window: No
• Slotted: No
• Tang End Shape: Square
• Undrilled: No

Material and Finish

• Conductor Material: Copper, Aluminum
• Connector Finish: Tin
• Material: Aluminum

Bolt and Screw Sizes

• Mounting Bolt/Stud Size: 1/2

Conductor Ranges

• Conductor Range AL Stranded (Primary, run, main, line): 350 kcmil
• Conductor Range CU Stranded (Primary, run, main, line): 350 kcmil
• Expanded Conductor Range: 350 kcmil - 3/0 Str

Environment and Temperature

• Temperature Rating: 90°C

Color

• Color: Silver
• Color Code: Blue

Voltage

• Voltage Rating: 35 kV

Dimensions

• Barrel Length (IN): 2
• Barrel Length (mm): 50.8
• Dimension G (IN): 0.63
• Dimension G (mm): 16.002
• Height BX (IN): 2.25
• Height (mm): 30.7848
• Inside Diameter (IN): 0.704
• Inside Diameter (mm): 17.8816
• Length (mm): 93.726
• Mounting Bolt/Stud Size (mm): 304.8
• Mounting Hole Diameter (IN): 0.562
• Mounting Hole Diameter (mm): 14.2748
• Mounting Hole Spacing (mm): 0
• Outside Diameter (IN): 1.152
• Outside Diameter (mm): 29.2608
• Tang Length (IN): 1.31
• Tang Length (mm): 33.274
• Tang Thickness (IN): 0.38
• Tang Thickness (mm): 9.652
• Tang Width (IN): 1.25
• Tang Width (mm): 31.75
• Weight BX (LB): 1.857
• Width BX (IN): 5
• Width (mm): 31.75

Testing Standards

• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• UL Control Number: 453G
• UL / CULUS Specification: UL 486A/B Listed
• UL File Number: E6207

General

• Bag Quantity: 1
• Carton Quantity Description: STD PACK QTY 3
• Direct Burial: No
• Dual Rated: Yes
• NEMA Code: S-588-3
• UPC Code: 78366992916
