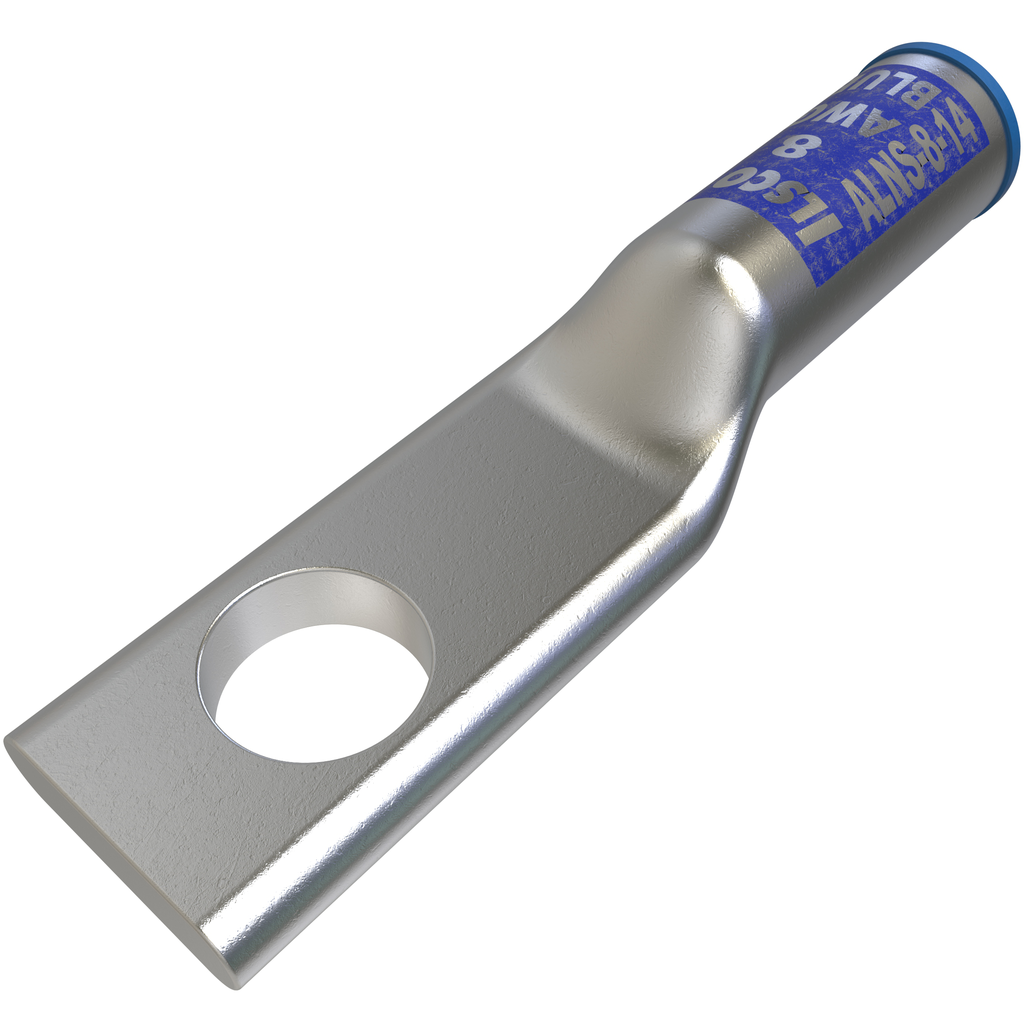

Specifications

• Height: 0.33 in | 8.382 mm
• Length: 1.672 in | 42.4688 mm
• Weight: 0.007 lbs
• Width: 0.435 in | 11.049 mm

Additional Technical Specifications

• Conductor Type: Stranded

Additional Class Attributes

• Barrel Marking: Hard
• Barrel Type: Long
• Connecting Angle: 180°
• Connection: Compression
• Contains DE-OX®: Yes
• Flared End: No
• ILSCOs Die Catalog Number: ILD-374
• ILSCOs Die Index Number: 374
• Mounting Hole Type: Thru
• Narrow Tang: No
• Number of Mounting Holes: 1
• Sight Window: No
• Slotted: No
• Tang End Shape: Square
• Undrilled: No

Material and Finish

• Conductor Material: Aluminum, Copper
• Connector Finish: Tin
• Material: Aluminum

Bolt and Screw Sizes

• Mounting Bolt/Stud Size: 1/4

Environment and Temperature

• Temperature Rating: 90°C

Conductor Ranges

• Conductor Range AL Stranded (Primary, run, main, line): 8 Str
• Conductor Range CU Stranded (Primary, run, main, line): 8 Str

Color

• Color: Silver
• Color Code: Blue

Voltage

• Voltage Rating: 35 kV

Testing Standards

• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• UL Control Number: 453G
• UL / CULUS Specification: UL 486A/B Listed
• UL File Number: E6207

Dimensions

• Barrel Length (IN): 0.602
• Barrel Length (mm): 15.2908
• Dimension G (IN): 0.321
• Dimension G (mm): 8.1534
• Height BX (IN): 2.25
• Height (mm): 8.382
• Inside Diameter (IN): 0.155
• Inside Diameter (mm): 3.937
• Length (mm): 42.4688
• Mounting Hole Diameter (IN): 0.281
• Mounting Hole Diameter (mm): 7.1374
• Mounting Hole Spacing (mm): 0
• Outside Diameter (IN): 0.3
• Outside Diameter (mm): 7.62
• Strip Length (mm): 16.8783
• Tang Length (IN): 0.81
• Tang Length (mm): 20.574
• Tang Thickness (IN): 0.125
• Tang Thickness (mm): 3.175
• Tang Width (IN): 0.435
• Tang Width (mm): 11.049
• Weight BX (LB): 2.39
• Width BX (IN): 5
• Width (mm): 11.049

General

• Bag Quantity: 1
• Carton Quantity Description: STD PACK QTY 20
• Direct Burial: No
• Dual Rated: Yes
• NEMA Code: S-588-3
• UPC Code: 78366969052
