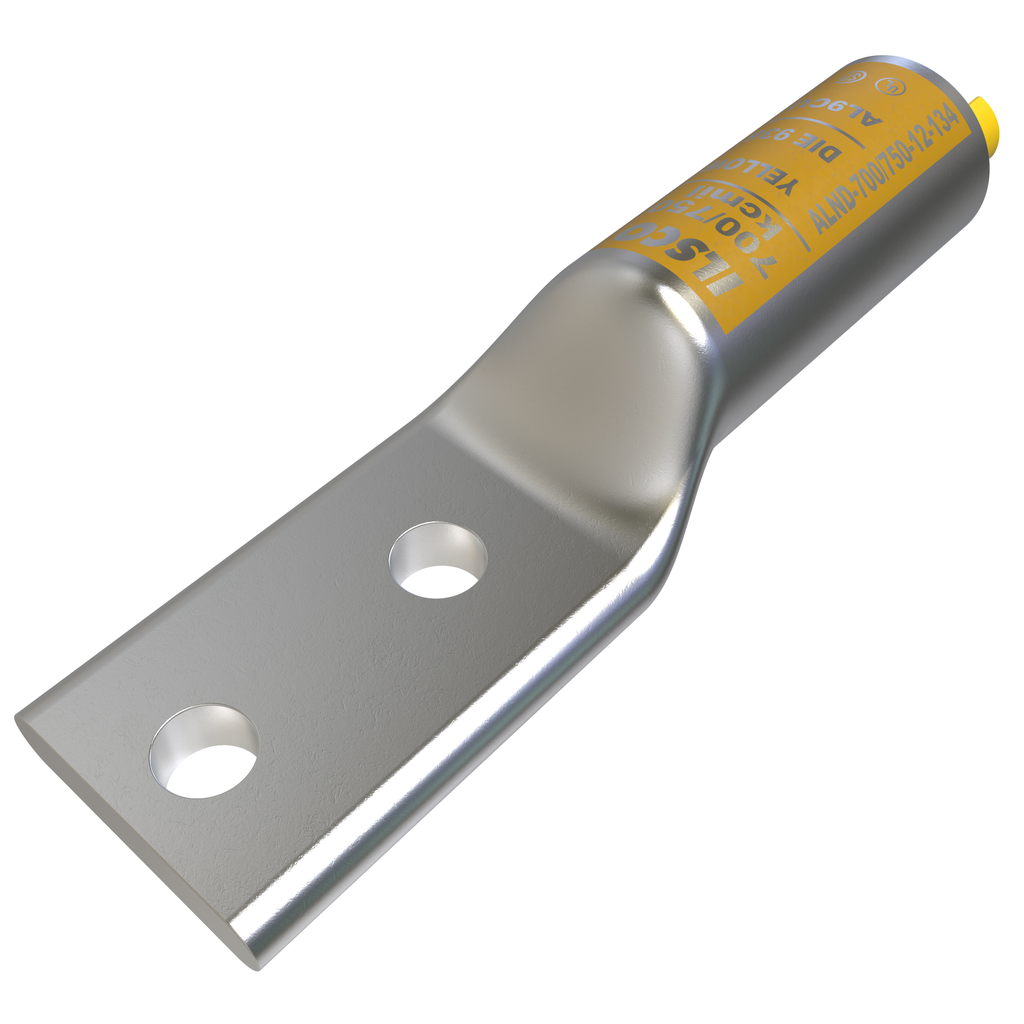

Specifications

• Height: 1.505 in | 38.227 mm
• Length: 7.07 in | 179.578 mm
• Weight: 0.525 lbs
• Width: 2.048 in | 52.0192 mm

Additional Technical Specifications

• Conductor Type: Stranded

Additional Class Attributes

• Barrel Marking: Hard
• Barrel Type: Long
• Connecting Angle: 180°
• Connection: Compression
• Contains DE-OX®: Yes
• Flared End: No
• ILSCOs Die Index Number: 936
• Narrow Tang: No
• Number of Mounting Holes: 2
• Sight Window: No
• Slotted: No
• Tang End Shape: Square
• Undrilled: No

Material and Finish

• Connector Finish: Tin
• Material: Aluminum

Bolt and Screw Sizes

• Mounting Bolt/Stud Size: 1/2

Environment and Temperature

• Temperature Rating: 90°C

Conductor Ranges

• Conductor Range AL Stranded (Primary, run, main, line): 750 kcmil - 700 kcmil
• Conductor Range CU Stranded (Primary, run, main, line): 750 kcmil - 700 kcmil
• Expanded Conductor Range: 750 kcmil - 500 kcmil / 900 kcmil compact AL

Color

• Color: Silver
• Color Code: Yellow

Voltage

• Voltage Rating: 35 kV

Dimensions

• Barrel Length (IN): 2.964
• Barrel Length (mm): 75.2856
• Height BX (IN): 2.25
• Height (mm): 38.227
• Inside Diameter (IN): 1.03
• Inside Diameter (mm): 26.162
• Length (mm): 179.578
• Mounting Hole Diameter (IN): 0.562
• Mounting Hole Diameter (mm): 14.2748
• Mounting Hole Spacing (IN): 1.75
• Mounting Hole Spacing (mm): 44.45
• Outside Diameter (IN): 1.46
• Outside Diameter (mm): 37.084
• Strip Length (mm): 76.8731
• Tang Length (IN): 3
• Tang Length (mm): 76.2
• Tang Thickness (IN): 0.43
• Tang Thickness (mm): 10.922
• Tang Width (IN): 2.048
• Tang Width (mm): 52.0192
• Weight BX (LB): 0.6385
• Width BX (IN): 4.25
• Width (mm): 52.0192

Testing Standards

• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• ROHS Indicator: IND
• UL Control Number: 453G
• UL / CULUS Specification: UL 486A/B Listed
• UL File Number: E6207

General

• Bag Quantity: 1
• Carton Quantity Description: STD PACK QTY 1
• Dual Rated: Yes
• NEMA Code: S-588-3
• UPC Code: 78366969053
