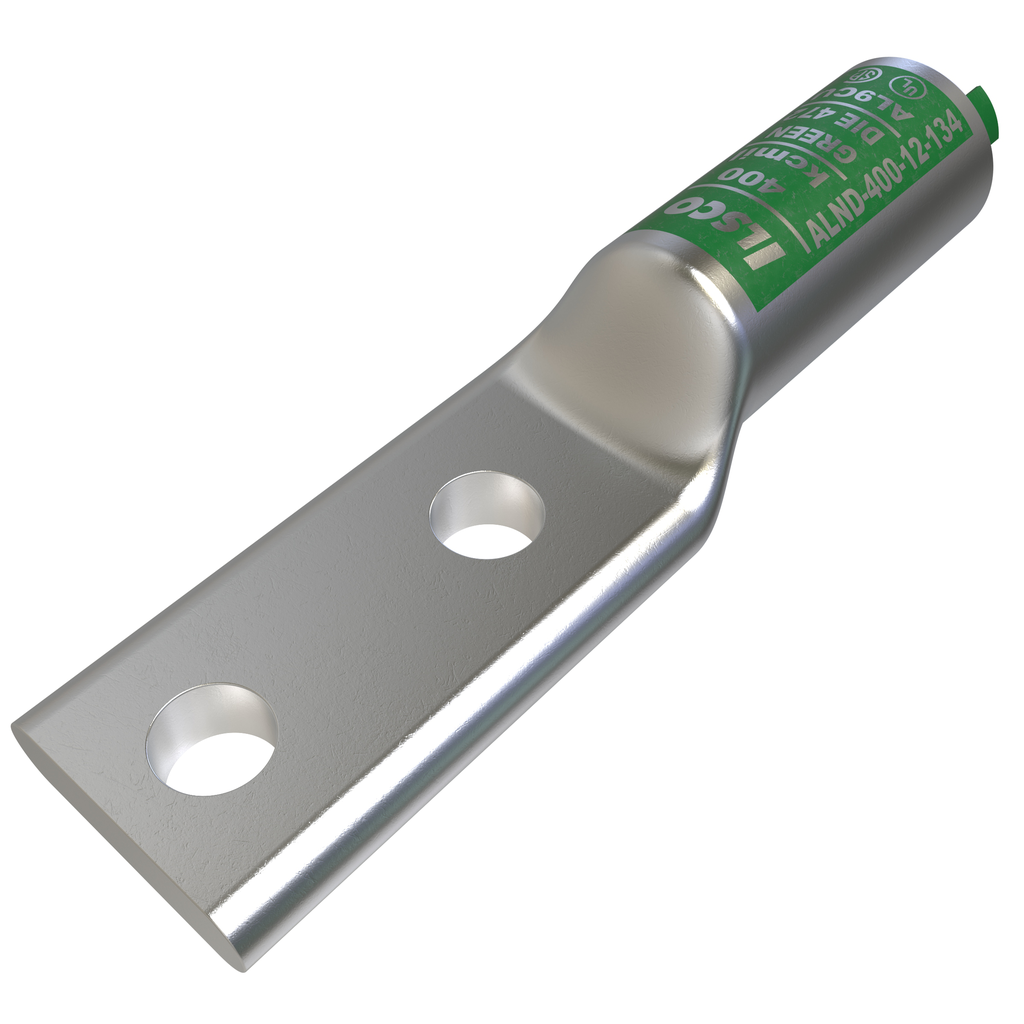

Specifications

• Height: 1.233 in | 31.3182 mm
• Length: 5.99 in | 152.146 mm
• Weight: 0.357 lbs
• Width: 1.623 in | 41.2242 mm

Additional Technical Specifications

• Conductor Type: Stranded

Additional Class Attributes

• Barrel Marking: Hard
• Barrel Type: Long
• Connecting Angle: 180°
• Connection: Compression
• Contains DE-OX®: Yes
• Flared End: No
• ILSCOs Die Catalog Number: ILD-472
• ILSCOs Die Index Number: 472
• Mounting Hole Type: Thru
• Narrow Tang: No
• Number of Mounting Holes: 2
• Sight Window: No
• Slotted: No
• Tang End Shape: Square
• Undrilled: No

Material and Finish

• Conductor Material: Aluminum, Copper
• Connector Finish: Tin
• Material: Aluminum

Bolt and Screw Sizes

• Mounting Bolt/Stud Size: 1/2

Conductor Ranges

• Conductor Range AL Stranded (Primary, run, main, line): 400 kcmil
• Conductor Range CU Stranded (Primary, run, main, line): 400 kcmil
• Expanded Conductor Range: 400 kcmil - 4/0 Str

Environment and Temperature

• Temperature Rating: 90°C

Color

• Color: Silver
• Color Code: Green

Voltage

• Voltage Rating: 35 kV

Dimensions

• Barrel Length (IN): 2.303
• Barrel Length (mm): 58.4962
• Dimension G (IN): 0.546
• Dimension G (mm): 13.8684
• Height BX (IN): 2.25
• Height (mm): 31.3182
• Inside Diameter (IN): 0.762
• Inside Diameter (mm): 19.3548
• Length (mm): 152.146
• Mounting Hole Diameter (IN): 0.562
• Mounting Hole Diameter (mm): 14.2748
• Mounting Hole Spacing (IN): 1.75
• Mounting Hole Spacing (mm): 44.45
• Outside Diameter (IN): 1.188
• Outside Diameter (mm): 30.1752
• Strip Length (mm): 60.0837
• Tang Length (IN): 3
• Tang Length (mm): 76.2
• Tang Thickness (IN): 0.426
• Tang Thickness (mm): 10.8204
• Tang Width (IN): 1.623
• Tang Width (mm): 41.2242
• Weight BX (LB): 1.8985
• Width BX (IN): 4.25
• Width (mm): 41.2242

Testing Standards

• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• ROHS Indicator: IND
• UL Control Number: 453G
• UL / CULUS Specification: UL 486A/B Listed
• UL File Number: E6207

General

• Bag Quantity: 1
• Carton Quantity Description: STD PACK QTY 5
• Direct Burial: No
• Dual Rated: Yes
• NEMA Code: S-588-3
• UPC Code: 78366968763
