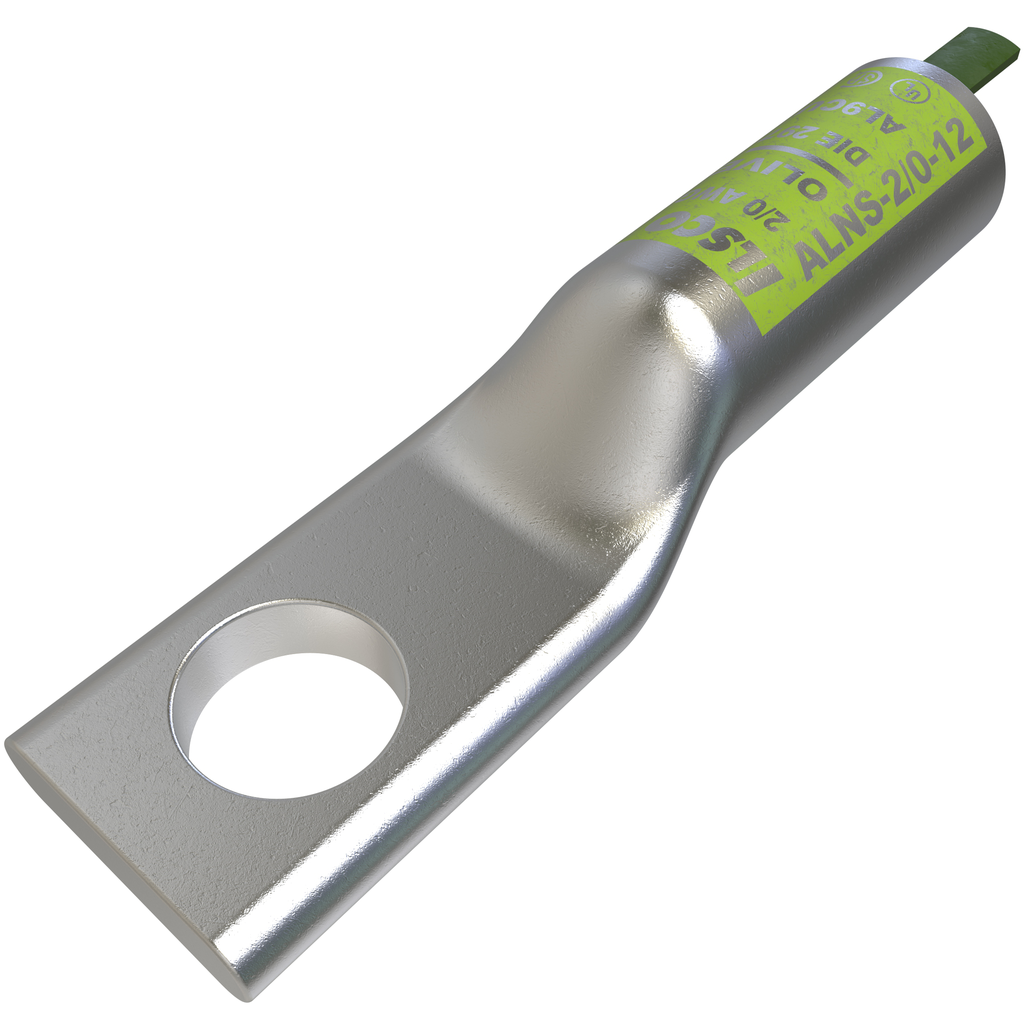

Specifications

• Height: 0.709 in | 18.0086 mm
• Length: 3.285 in | 83.439 mm
• Weight: 0.055 lbs
• Width: 0.921 in | 23.3934 mm

Additional Technical Specifications

• Conductor Type: Stranded

Additional Class Attributes

• Barrel Marking: Hard
• Barrel Type: Long
• Connecting Angle: 180°
• Connection: Compression
• Contains DE-OX®: Yes
• Flared End: No
• ILSCOs Die Catalog Number: ILD-297
• ILSCOs Die Index Number: 297
• Mounting Hole Type: Thru
• Narrow Tang: No
• Number of Mounting Holes: 1
• Sight Window: No
• Slotted: No
• Tang End Shape: Square
• Undrilled: No

Material and Finish

• Conductor Material: Copper, Aluminum
• Connector Finish: Tin
• Material: Aluminum

Bolt and Screw Sizes

• Mounting Bolt/Stud Size: 1/2

Environment and Temperature

• Temperature Rating: 90°C

Conductor Ranges

• Conductor Range AL Stranded (Primary, run, main, line): 2/0 Str
• Conductor Range CU Stranded (Primary, run, main, line): 2/0 Str
• Expanded Conductor Range: 2/0 Str - 1 Str

Color

• Color: Silver
• Color Code: Olive

Voltage

• Voltage Rating: 35 kV

Testing Standards

• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• UL Control Number: 453G
• UL / CULUS Specification: UL 486A/B Listed
• UL File Number: E6207

Dimensions

• Barrel Length (IN): 1.355
• Barrel Length (mm): 34.417
• Dimension G (IN): 0.546
• Dimension G (mm): 13.8684
• Height BX (IN): 2.25
• Height (mm): 18.0086
• Inside Diameter (IN): 0.432
• Inside Diameter (mm): 10.9728
• Length (mm): 83.439
• Mounting Bolt/Stud Size (mm): 304.8
• Mounting Hole Diameter (IN): 0.562
• Mounting Hole Diameter (mm): 14.2748
• Mounting Hole Spacing (mm): 0
• Outside Diameter (IN): 0.674
• Outside Diameter (mm): 17.1196
• Strip Length (mm): 36.0045
• Tang Length (IN): 1.283
• Tang Length (mm): 32.5882
• Tang Thickness (IN): 0.242
• Tang Thickness (mm): 6.1468
• Tang Width (IN): 0.921
• Tang Width (mm): 23.3934
• Weight BX (LB): 0.64
• Width BX (IN): 5
• Width (mm): 23.3934

General

• Bag Quantity: 1
• Carton Quantity Description: STD PACK QTY 10
• Direct Burial: No
• Dual Rated: Yes
• NEMA Code: S-588-3
• UPC Code: 78366969040
