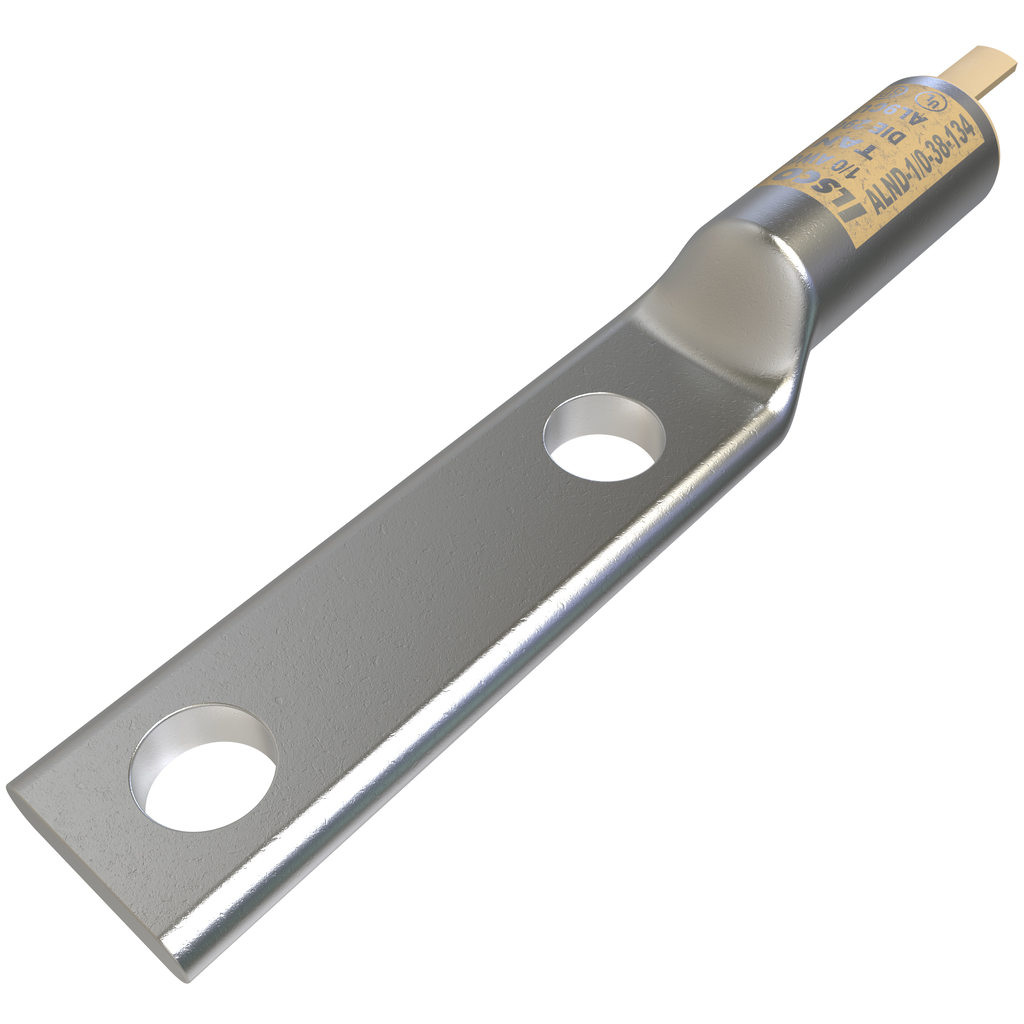

Specifications

• Height: 0.634 in | 16.1036 mm
• Length: 4.185 in | 106.299 mm
• Weight: 0.048 lbs
• Width: 0.819 in | 20.8026 mm

Additional Technical Specifications

• Conductor Type: Stranded

Additional Class Attributes

• Barrel Marking: Hard
• Barrel Type: Long
• Connecting Angle: 180°
• Connection: Compression
• Contains DE-OX®: Yes
• Flared End: No
• ILSCOs Die Catalog Number: ILD-296
• ILSCOs Die Index Number: 296
• Mounting Hole Type: Thru
• Narrow Tang: No
• Number of Mounting Holes: 2
• Sight Window: No
• Slotted: No
• Tang End Shape: Square
• Undrilled: No

Material and Finish

• Conductor Material: Copper, Aluminum
• Connector Finish: Tin
• Material: Aluminum

Bolt and Screw Sizes

• Mounting Bolt/Stud Size: 3/8

Environment and Temperature

• Temperature Rating: 90°C

Conductor Ranges

• Conductor Range AL Stranded (Primary, run, main, line): 1/0 Str
• Conductor Range CU Stranded (Primary, run, main, line): 1/0 Str
• Expanded Conductor Range: 1/0 Str - 1 Str

Color

• Color: Silver
• Color Code: Tan

Voltage

• Voltage Rating: 35 kV

Testing Standards

• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• UL Control Number: 453G
• UL / CULUS Specification: UL 486A/B Listed
• UL File Number: E6207

Dimensions

• Barrel Length (IN): 1.2
• Barrel Length (mm): 30.48
• Dimension G (IN): 0.414
• Dimension G (mm): 10.5156
• Height BX (IN): 2.25
• Height (mm): 16.1036
• Inside Diameter (IN): 0.385
• Inside Diameter (mm): 9.779
• Length (mm): 106.299
• Mounting Hole Diameter (IN): 0.406
• Mounting Hole Diameter (mm): 10.3124
• Mounting Hole Spacing (IN): 1.75
• Mounting Hole Spacing (mm): 44.45
• Outside Diameter (IN): 0.599
• Outside Diameter (mm): 15.2146
• Strip Length (mm): 28.7655
• Tang Length (IN): 2.646
• Tang Length (mm): 67.2084
• Tang Thickness (IN): 0.214
• Tang Thickness (mm): 5.4356
• Tang Width (IN): 0.819
• Tang Width (mm): 20.8026
• Weight BX (LB): 0.69
• Width BX (IN): 5
• Width (mm): 20.8026

General

• Bag Quantity: 1
• Carton Quantity Description: STD PACK QTY 10
• Direct Burial: No
• Dual Rated: Yes
• NEMA Code: S-588-3
• UPC Code: 78366969067
