Features

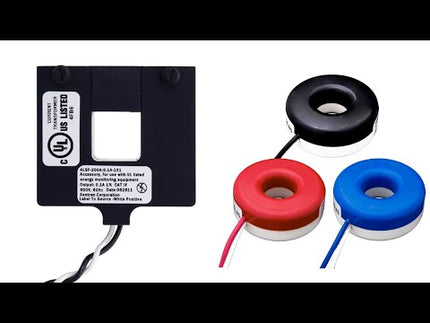

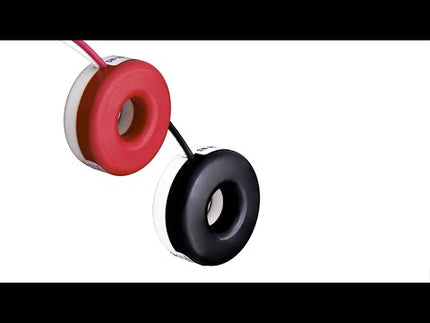

• • Measures kWh and demand (optional) • Conform to all applicable standards of ANSI C12.1 • Equipped with an Isolated Pulse Output channel • Utilizes revenue grade 0.3% accuracy class 0.1A secondary solid core CTs that conform to all applicable ANSI requirements or 1.0% accuracy split-core CTs • Up to three sets of CTs per phase can be paralleled per meter without the need for a meter multiplier • Enclosures include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor • Interfaces with numerous communication systems – Hardwired Automatic Meter Reading (AMR) or wireless AMR • Large LCD display shows kWh and instantaneous and peak demand (optionally) with manual keyed reset • Load Indicator LED verifies meter functionality • Reverse Phase Indicator LED illuminates if the meter is improperly installed • UL/cUL Listed for UL 916 Energy Monitoring Equipment • Five year warranty

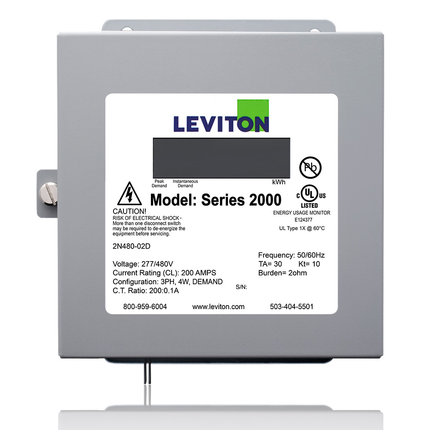

• The Leviton VerifEye™ Series 2000 line of revenue-grade submeters meets all measurement and verification-based opportunities – including load management and LEED rating achievement. Designed to provide a simple and effective process for accurately capturing measurements of power consumption, Series 2000 submeters are easy to specify and install for new construction and retrofits.

Specifications

• Country of Origin: United States
• RoHS Compliant: False

Electrical Specifications

• Amperage: 200 A
• Voltage: 277/480 VAC 3PH 4W

Product Features

• CTs Included: No Meter Only
• Communication: Pulse Output
• Enclosure: Indoor (NEMA 1)
• Meter Configuration: Single Meter
• Product Line: Series 2000
• Product Type: Electric Submeter
