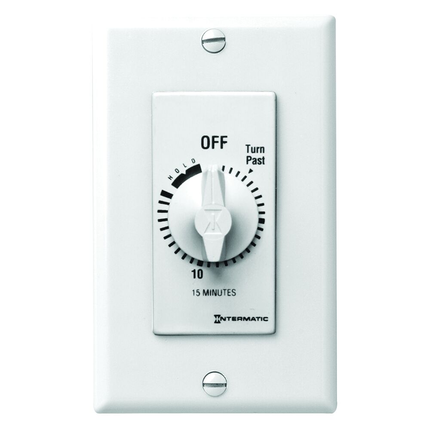

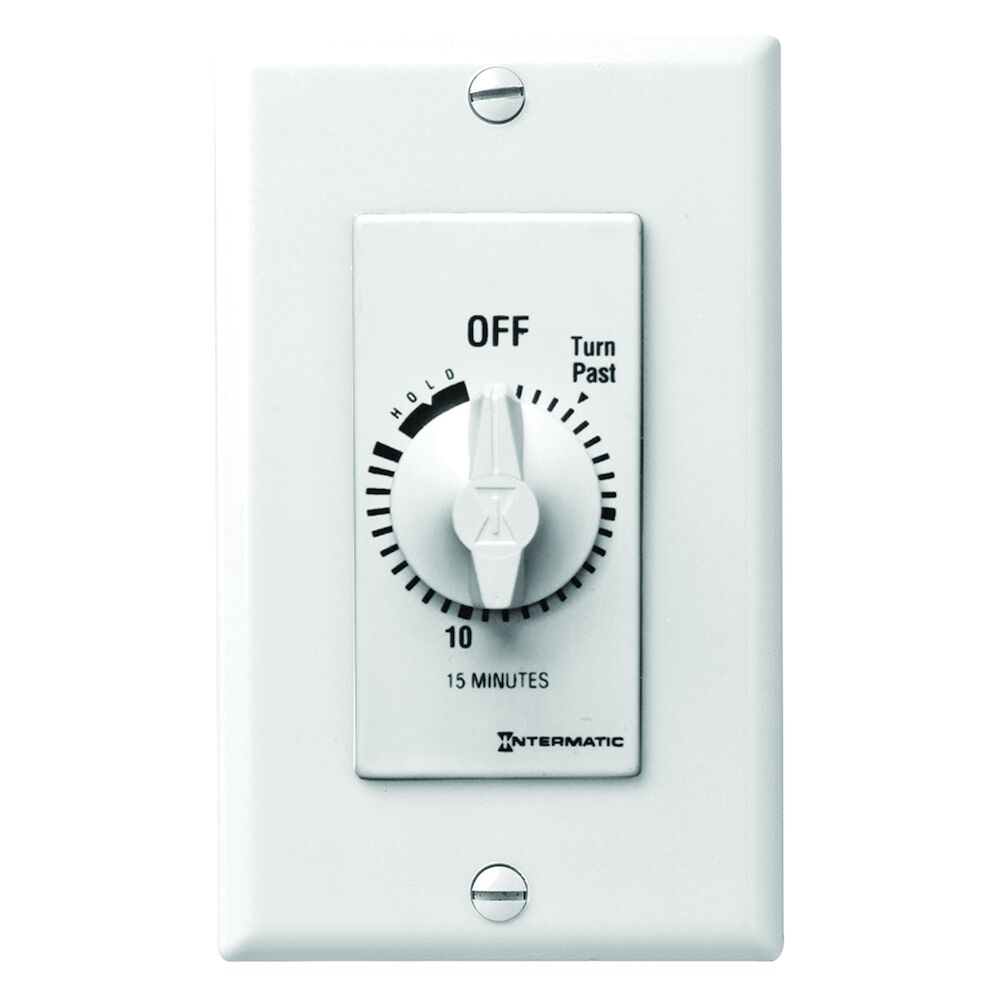

Features

• 15-Minute timer with hold
• SPST (Single-Pole Single-Throw)
• Breaks circuit at end of timing cycle
• No electricity required to operate
• Replaces any standard or decorator single- or multi-gang wall switch
• Automatically limits ON time for energy consuming loads
• Quick and easy installation
• Time-saving up front terminal connection with teeter-type terminals
• Incandescent/fluorescent/CFL/LED compatible
• No neutral connection is required

Prop 65

• Please see the Warning @ www.P65Warnings.ca.gov - DEHP

Specifications

• Country of Origin: Tunisia
• Product Height: 4.125 in; 104.8 mm
• Product Depth: 1.25 in; 31.8 mm
• Operating Temperature Min: 32°F
• Operating Temperature Max: 104°F; 40°C
• Warranty Period: 1-Year limited
• In Wall Wiring Configurations: Single
• Operation Mode: Countdown
• Color: White
• Applications: Indoor Lighting Control; Outdoor Lighting Control; Motor Control; Air Movement & Ventilation
• Application Compatibilities: Incandescent; Fluorescent; CFL; LED
• Wall Plate Configuration: Single-Gang; Multi-Gang
• Input Voltage Ranges: 125-277 VAC, 50/60 Hz
• Countdown Time: 15 min
• Mechanism Type: Analog/Mechanical
• Switch Type: SPST
• Tungsten Incandescent: 7 A, 125 VAC, 50 Hz; 7 A, 125 VAC, 60 Hz; 875 W
• Hold Mode Included CVL: Yes
• Neutral Connection Required CVL: No
• Resistive Heater: 20 A, 2500 W, 125 VAC; 10 A, 2500 W, 250 VAC; 10 A, 2770 W, 277 VAC
• PDF Standards And Certifications: cCSAus; RU
• Tungsten Incandescent Ranges: 7 A, 125 VAC, 50/60 Hz, 875 W

Certifications

• CSA Certification: cCSAus
• Other Certifications: RU

Load Ratings

• Motor Load Ratings Ranges: 1 HP, 125 VAC; 2 HP, 250 VAC
