Description
Specifications
- Height: 4.19 IN
- Length: 1.3 IN
- Width: .87 IN
- Allowable Wire Size: #14 to 10 AWG
- Amperage Rating: 20A
- Mounting Type: Flush
- Voltage Rating: 125V
- Wiring Method: Side
- Color: White
- Contact Material: Brass

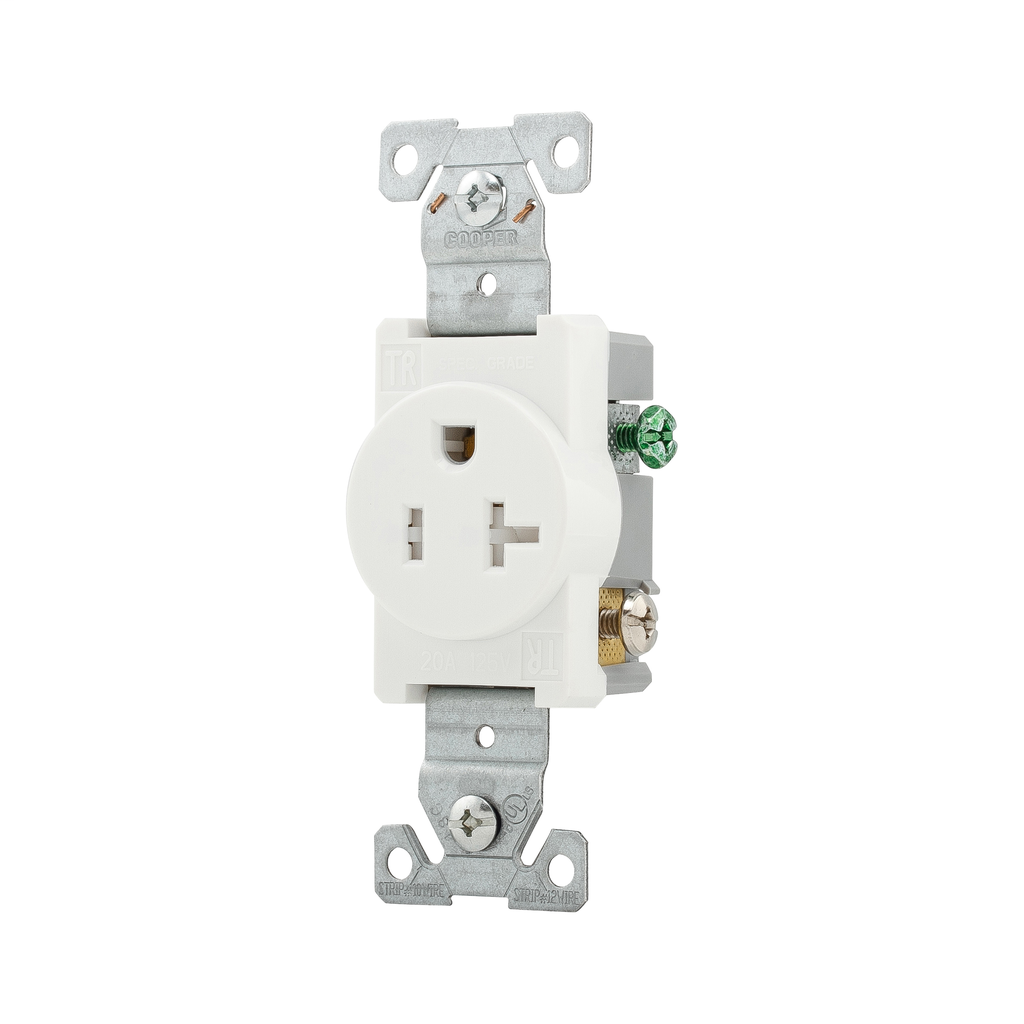

- Design Type: Receptacle
- Nema Configuration: 5-20R
- Number Of Poles: Two-pole
- Number Of Wires: Three-wire
- Receptacle Type: Two-pole, three-wire, grounding
- Style Type: Single
- Connection Type: Screw
- Material: PVC
More Information
Manufacturer Catalog Number
TR1877W-BXSP
Weight
.1550
Material
PVC
Color
White
Amperage
20 amperes
Number Of Poles
2
Number Of Wires
3
Voltage
125 volts
