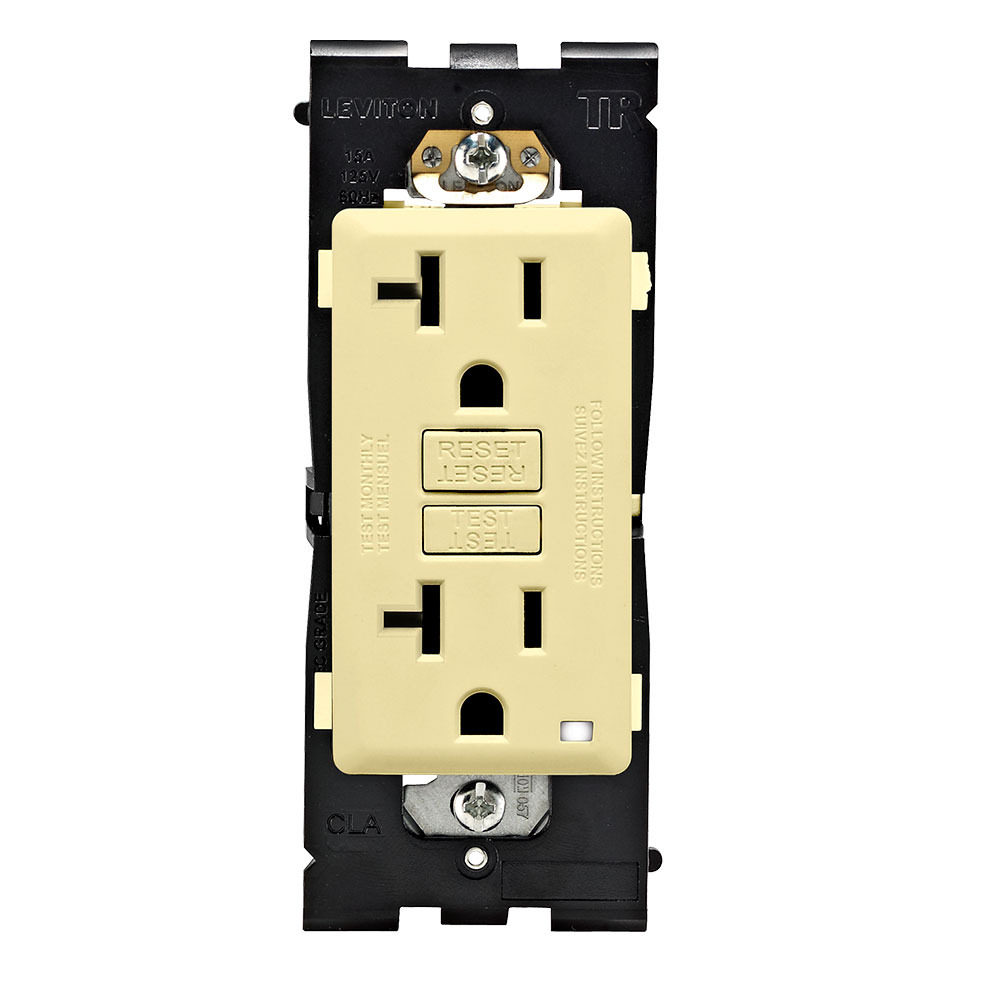

Features

• 20A-125V
• Tamper-resistant to meet the child safety requirements of the National Electrical Code®
• Designed to meet the latest UL standard for auto-monitoring (self-test); periodically conducts an automatic internal test to confirm that it can respond to a ground fault
• Patented lockout feature for added safety prevents RESET if GFCI is not operating properly
• Built-in shutters help prevent access by most foreign objects
• Available in 20 popular colors to match any décor
• Once installed, Renu outlets can be updated to a new color by ordering an RKG20 color change kit
• Outlet face easily snaps OFF and ON to change color
• To complete the look, snap on a matching or contrasting Renu screwless wallplate (sold separately)
• Turns the electrical device into a decorative, easily updated accessory
• Shallow size is easy to install in any wallbox
• Self-grounded when installed in a properly grounded metal wallbox
• Back and side wired for fast, easy installation
• Terminals designed to withstand high torque and resist wire pullout
• 15A tamper-resistant outlet is also available
• Use only with Renu wallplates
• SAFE - Patented lockout feature for added safety prevents RESET if GFCI is not operating properly. Two Tamper-Resistant receptacles for improved safety, TR symbol located on strap
• CONVENIENT - Features a shallow design that easily installs in any wallbox, back and side wiring options allow for quick installation
• FLEXIBLE – Once installed, Renu outlets can be updated to a new color by ordering an RKG20 color change kit
• EASY - Matte finish available in 20 popular colors that works with Leviton Renu wallplate REWP1/REWP2/REWP3/REWP4

NEMA

• 5-20R

Color Variations

• Cafe Latte

Specifications

• Country of Origin: China
• RoHS Compliant: False

Mechanical Specifications

• ANSI: C-73
• CSA C22.2 No. 42: Yes
• NEMA: WD-6
• NOM: Yes
• Product ID: Ratings are permanently marked on device
• Terminal Accom.: 14-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Torque Range: 14 – 18 in.-lbs

Standards and Certifications

• ANSI: C-73
• CSA C22.2 No. 42: Yes
• Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
• NEMA: WD-6
• NOM: Yes
• Short Circuit Current Rating: 10KA
• UL 498: Yes

Material Specifications

• Amperage: 20 A
• Body Material: Polycarbonate
• Brand: Renu
• Clamps: Brass
• Color: Corn Silk
• Color Change Kit: RKG20
• Face Material: Thermoplastic
• Feature: Renu Self-Test GFCI
• Grade: Residential/Commercial Specification Grade
• Grounding: Self-Grounding Clip and Green Ground Screw
• Grounding Screw: Plated Steel
• Line Contacts: Brass Double Wipe .031 Thick
• NEMA: 5-20R
• Notes: Wallplate Sold Separately
• Pole: 2
• Standards and Certifications: cULus
• Strap Material: Galvanized Steel
• Tamper Resistant: Yes
• Terminal Screws: Plated Steel
• Termination: Back & Side
• Trip Level: Class A, 5mA plus or minus 1mA
• Type: Standard
• Voltage: 125 VAC
• Warranty: 2-Year Limited
• Wire: 3
• Yoke: Zinc-Plated Steel

Product Features

• Wallplate: Not Included

AC Horsepower Ratings

• At Rated Voltage: 1 HP
• Product ID: Ratings are permanently marked on device
• Terminal Accom.: 14-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral

Electrical Specifications

• Body Material: Polycarbonate
• Clamps: Brass
• Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
• Face Material: Thermoplastic
• Grounding Screw: Plated Steel
• Line Contacts: Brass Double Wipe .031 Thick
• Notes: Wallplate Sold Separately
• Short Circuit Current Rating: 10KA
• Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
• Terminal Screws: Plated Steel
• Yoke: Zinc-Plated Steel

Environmental Specifications

• Flammability: Rated HB or better UL94
• Operating Temperature: -35C to +66C
