Features

• Wide range of conductors are accommodated, Length fits the long barrel connector design (YS, YA), Can be used on all long barrel connectors. Field cut to fit shorter length compression barrels (YS-L, YA-L), Manufactured from high conductivity electrolytic copper and electro-tin plated

Specifications

• Country of Origin: United States
• Buy American Compliant: Yes
• Conductor - Copper Str Run: 750 kcmil
• Conductor - Copper Str Size: 600 kcmil
• Conductor - Copper Str Size Range: 600 kcmil
• Conductor - Copper Str Tap: 600 KCMIL
• Conductor - Material: COPPER

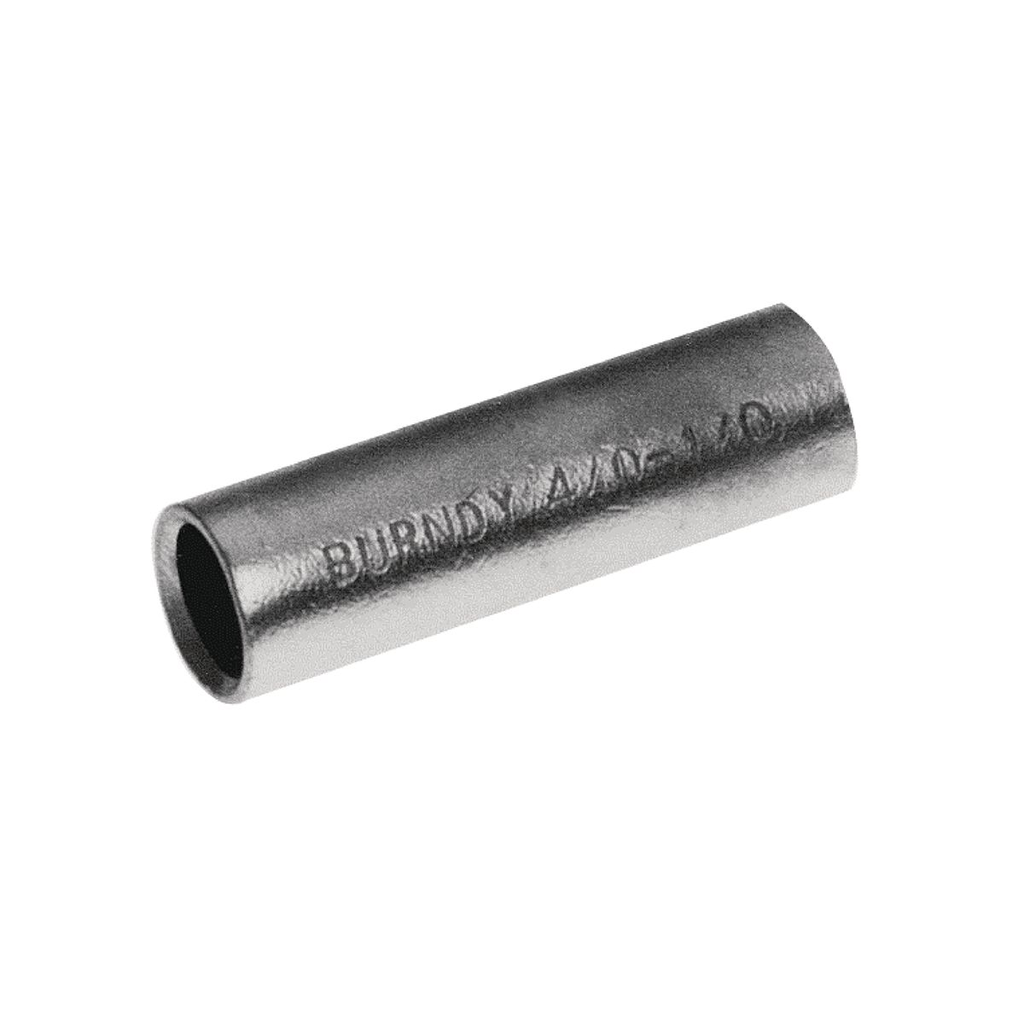

• Description - Slang: Copper Reducer Adaptor Sleeves
• Dimension - B Length inch: 2.06 in
• Dimension - Inside Diameter inch: 0.92 in
• Dimension - L Length Overall mm: 73 mm
• Dimension - Length Overall inch: 2.88 in
• Dimension - Outside Diameter inch: 1.017 in
• Width: 1.02 in
• Each - Width: 1.02 in
• Feature - Barrel Style: Chamfered
• Feature - Barrel Type: Long
• Plated: Y
• Plating Type: Tin - Electro Plated
• Product Type: SPLICE REDUCER
• Standards - RoHS Compliance Status: CM
• Application: Wire Reducing Splice Adapter Insert
• Finish: Tin-Plated
• Special Features: Wide range of conductors are accommodated, Length fits the long barrel connector design (YS, YA), Can be used on all long barrel connectors. Field cut to fit shorter length compression barrels (YS-L, YA-L), Manufactured from high conductivity electrolytic copper and electro-tin plated
• Sub Brand: REDUCER/ADAPTER
• Temperature Rating: 194
• Type: Y-R, Compression
• Conductor Type: CODE
• Connector Type: LONG BARREL
• Finish Type: Tin-Plated
• Wire Size: 600 kcmil
• ARRA Compliant: Yes
• Certification Agency: Proposition 65
• Class Code: B55
• Description - Invoice: CU REDUCER ADAPTER 750KCMIL-600KCMIL
• Freight Class Code: 16027000
• Harmonization Code: 8535908020
• Image Actual Or Representative: A
• Lead Time: 11 wk
• MSDS Flag: No
• Order Multiple: 1 EA
• Stock Indicator: N - Non-stock
• Sub Class Code: B55BIGF
• Die Index: 24
• UL Listed: No
• Color Code: Black
• Material: COPPER
• Voltage - Maximum: 35000
• Base Unit of Measure: EA
• BOX SIZE: 5.125x6.438x4.875 (in)
• Carton - Gross Weight per Pack: 3.250 lb.
• Carton - Number of Sub Packs: 25
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 00781810081921
• Carton - Total Units: 25
• Case - SCC-14 Next Lower Level Sub Pack: 30781810081922
• Each - Number of Sub Packs: 1
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Package - Gross Weight per Pack: 3.25 lb.
• Package - GTIN - Package: 30781810081922
• Package - Number of Sub Packs: 25
• Package - Pack Description: Package
• Package - SCC-14 Next Lower Level Sub Pack: 00781810081921
• Package - Total Units: 25 EA
• Package Height: 4.50 in
• Package Length: 6.13 in
• Package Quantity: 25 EA
• Package Weight: 3.25 lb.
• Package Width: 4.56 in
• Pallet - GTIN - Package: 70781810081920
• Pallet Height: 46.750 in
• Pallet Length: 48.000 in
• Pallet Weight: 1553.000 lb.
• Pallet Width: 40.000 in
• Standard Package Quantity: 25

Certifications

• CSA Approved: No
• cULus: No
• ETL: No
• UL Recognized: No
• EU RoHS Indicator: Yes
