Features

• All data, video, communication, power, and control cabling shall be installed through sleeves wherever said cables penetrate fire resistance rated barriers. In the case of existing cable installation, a split sleeve device with corresponding split escutcheon plates to facilitate installation around existing cables shall be used. Sleeves shall be sized to accommodate present cable bundle diameter as well as anticipated growth. Split sleeve kit provided with intumescent gaskets and non-hardening intumescent firestop putty. When irregularly shaped openings are encountered, the split sleeve device shall be UL tested and certified for this purpose. The split sleeve device shall be UL Certified and tested to the requirements of ASTM E814 (UL1479) and CAN/ULC-S115. Split sleeve kit shall be UL tested in larger or irregularly shaped openings and include provisions for mounting device in such openings.

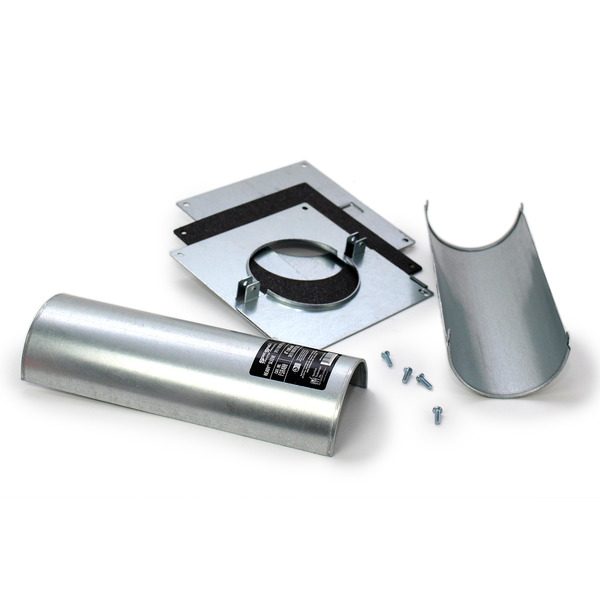

• Complete kit including wall labels., Offered in three sizes: 1in., 2 in., & 4 in. diam., Sized for assemblies up to 10 in. thick., Oversized escutcheon plates and gaskets available for larger openings.

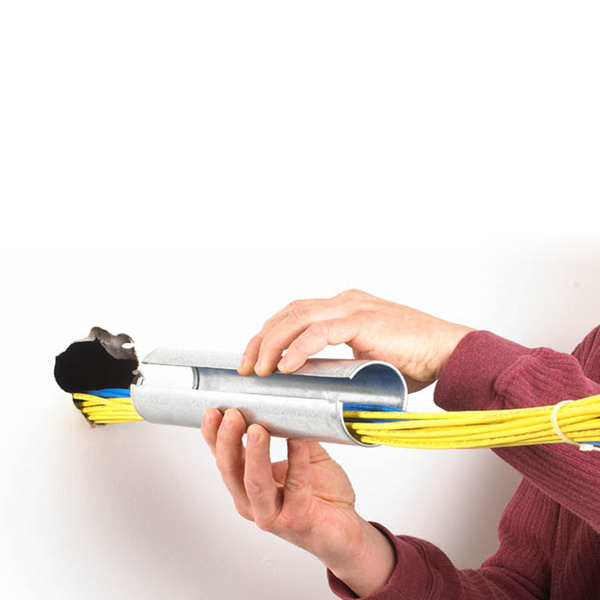

• Split design - for use with existing cables
• Oversize openings - UL tested for larger and irregularly shaped openings
• Ready to install - no cutting required, no waste

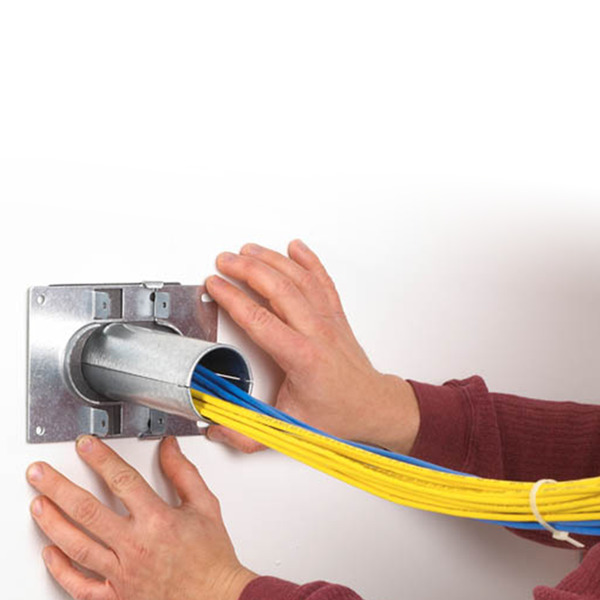

• Locks into place - no support struts and clamps required
• No external firestop seal required - factory supplied intumescent firestop gasket

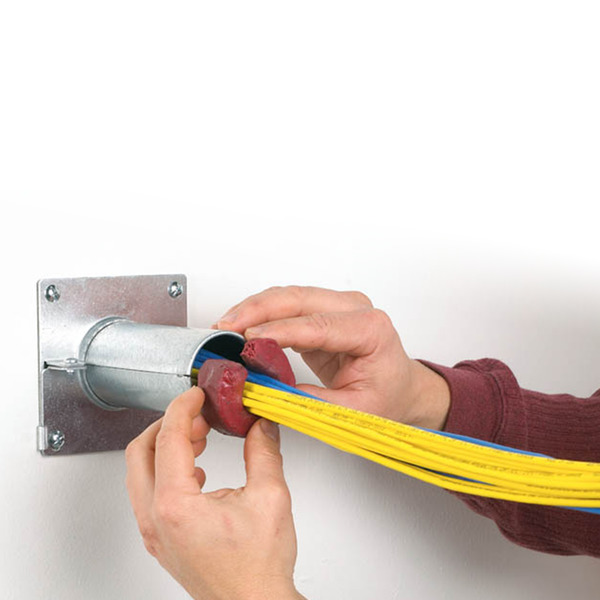

• Firestop putty provided with kit - sufficient to seal ends to 1 in (25 mm) depth
• UL Certified and code compliant
• For rated and non-rated barriers - putty seal impedes the passage of fire, smoke, superheated gases, particulate dust, and minimizes noise transmission
• Offered in three sizes: 1", 2", & 4" diameter

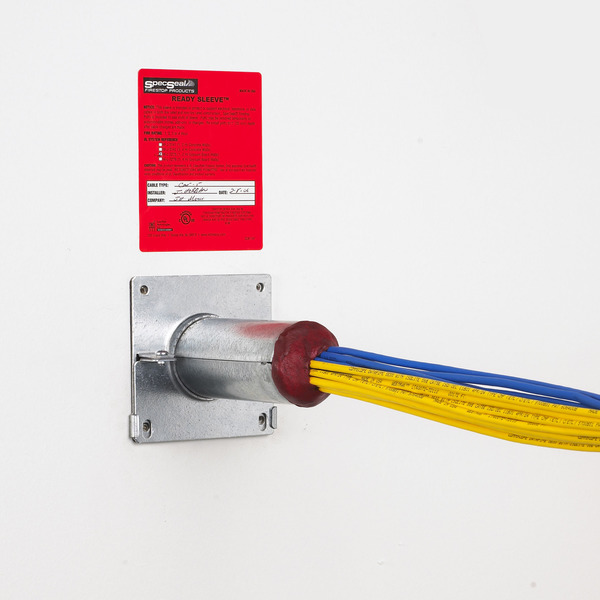

• Complete kit including wall labels

Standards and Certifications

• ASTM E814
• UL 1479
• CAN/ULC S115
• ASTM E814 (UL1479)
• CAN/ULC-S115
• FM Approved: No
• UL Certified Firestop: Yes
• FBC System Compatible: No

Applications

• Cables
• Cable Tray

Properties

• Low VOC
• No Expiration
• Re-Enterable
• Smoke Barrier

Construction Type

• Ready split sleeves are used to protect or support cables in both non-rated and rated construction. Ready split sleeves are suitable for use in all common constructions including concrete floors, concrete walls, concrete block walls, and gypsum board/stud wall assemblies up to 10 in (250 mm) thick.

Industry

• Residential
• Commercial
• Industrial
• Construction
• Government

Recommended Use

• Ready split sleeves are a complete UL Certified out-of-the-box solution for new or existing cable penetrations through walls and floors.

Specifications

• Country of Origin: USA
• Weight: 7.47 lbs.
• Length: 19 in.
• Width: 11.5 in.
• Height: 3 in.
• Color: Silver
• Composition: Steel, Zinc, Intumescent
• Material: Thick Steel
• Firestop Device Type: Ready Sleeve
