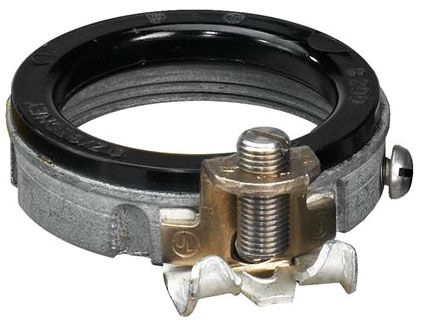

Features

• Tin Plated Copper Saddle for Use with Copper or Aluminum Conductors
• Allows Easy Insertion of Grounding Conductor for Thru or End Connection
• Low Grounding Connector Profile
• Spring Action Design Maintains Positive Firm Contact on Grounding Conductor
• Phenolic Insulation, with 150 Deg C UL Rating, Molded on Over Metallic Conduit Stop will Not Shatter or Shrink at Sub-Zero Temperatures
• To Protect Insulated Conductors from Abrasion During Pulling and Mechanical Vibration
• Lugs Not Sold Separately

Additional Information

• Applicable Standard W-F-408E, NEMA FB-1

Specifications

• Type: Threaded, Set Screw
• Trade Size: 2 Inch
• Wire Size: 14 to 4 AWG Solid/Stranded
• Lug Type: Lay-In
• Conductor Material: Copper
• Throat Type: Phenolic Insulated
• Diameter: 2-3/4 Inch
• Height: 7/8 Inch
• Material: Bronze
• Approval: UL 467/514B, CSA 22.2
• Used On: Threaded Rigid Conduit/IMC
• Series/Model: RBLG
