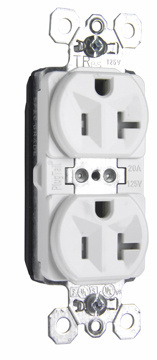

Features

Certifications

• Federal Spec Listed
• cULus Listed

• .036 inch thick, brass, triple-wipe power contacts for lasting retention.
• Smooth wall plate.
• No exposed terminals create a finger safe application before, during, and after installation.
• Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
• Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
• Crimped and welded contacts.
• Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
• Pre-wired with one welded pre-stripped wire lead to facilitate switched receptacle circuit applications.
• Auto-ground clip assures positive ground.
• Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
• PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6"" leads, stripped, solid or stranded, for use with PlugTail Receptacles only

Specifications

• Depth: 0.625 in
• Height: 2.75 in
• Width: 1.5 in
• Country of Origin: Mexico

Specifications

• Color: White
• Finish: Matte
• Product Line: Pass & Seymour
