Features

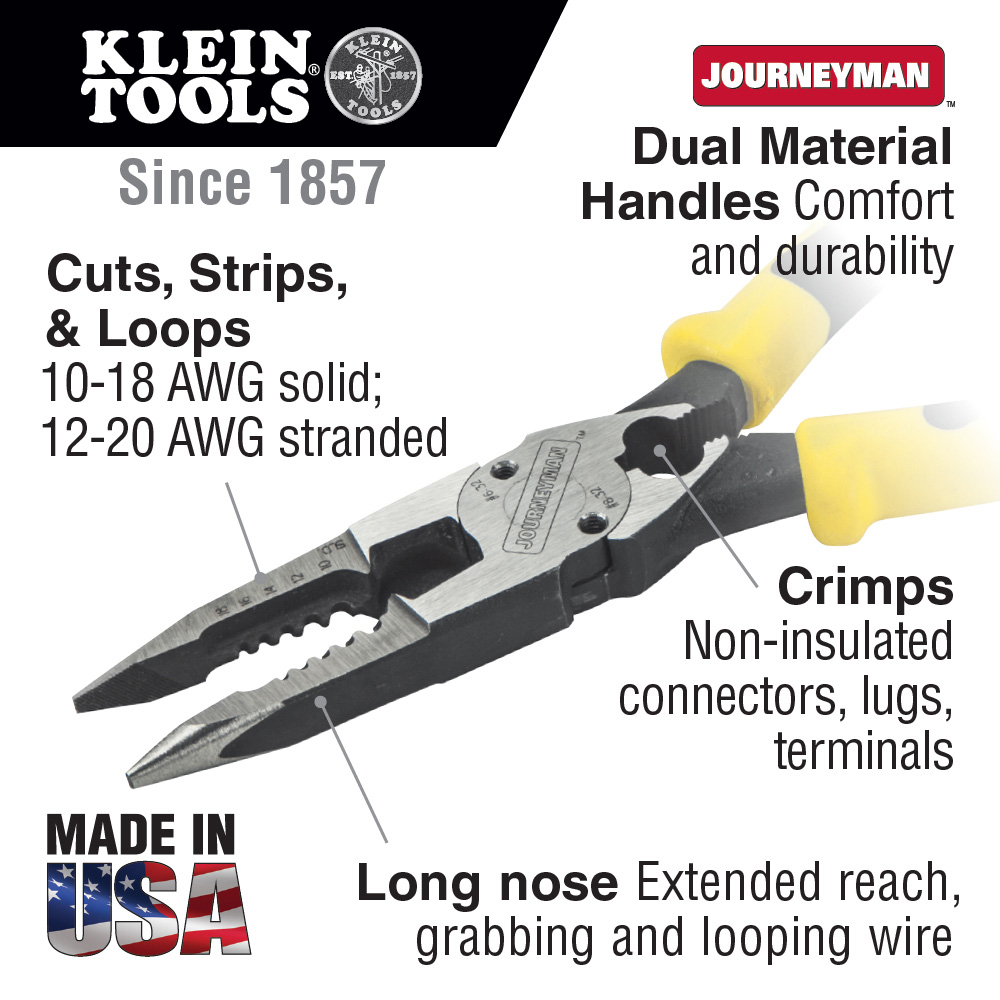

• Needle Nose Pliers strip, cut, loop, crimp and shear

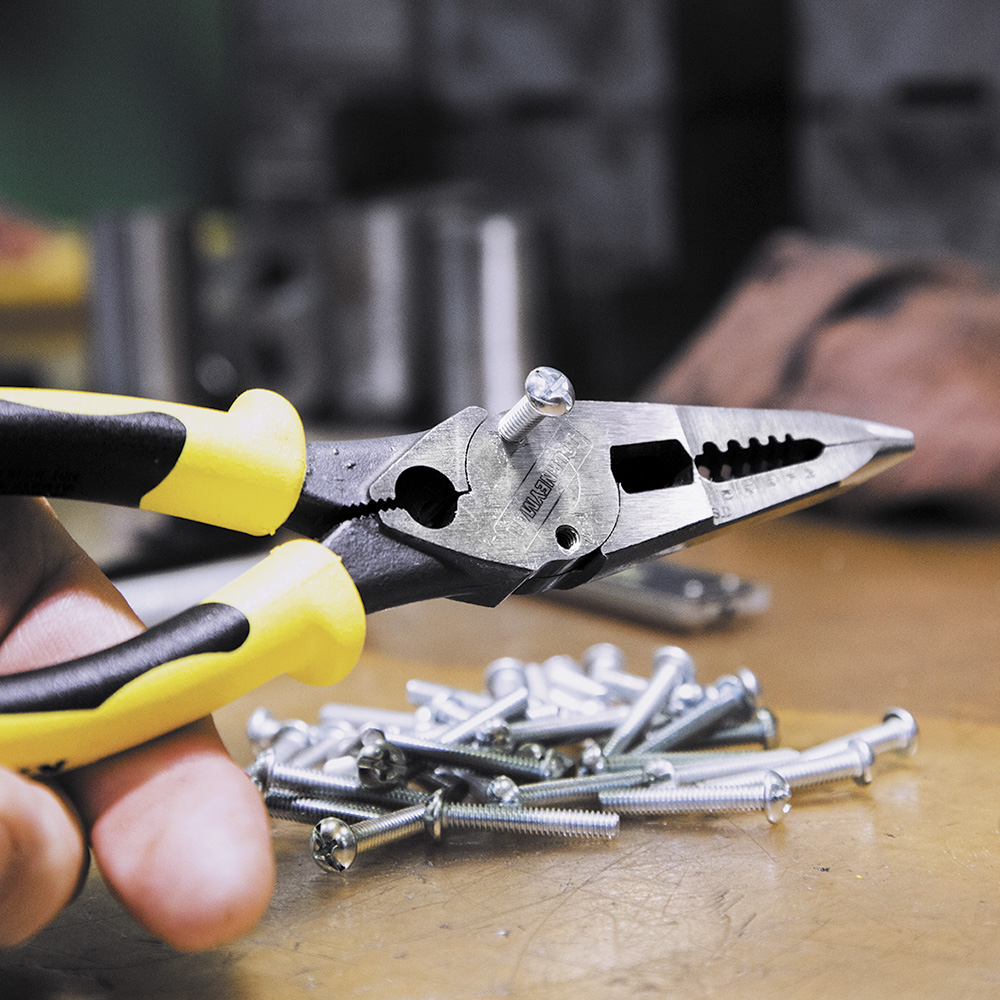

• Strips 10-18 AWG Solid and 12-20 AWG Stranded wire; 6-32 and 8-32 screw shearing

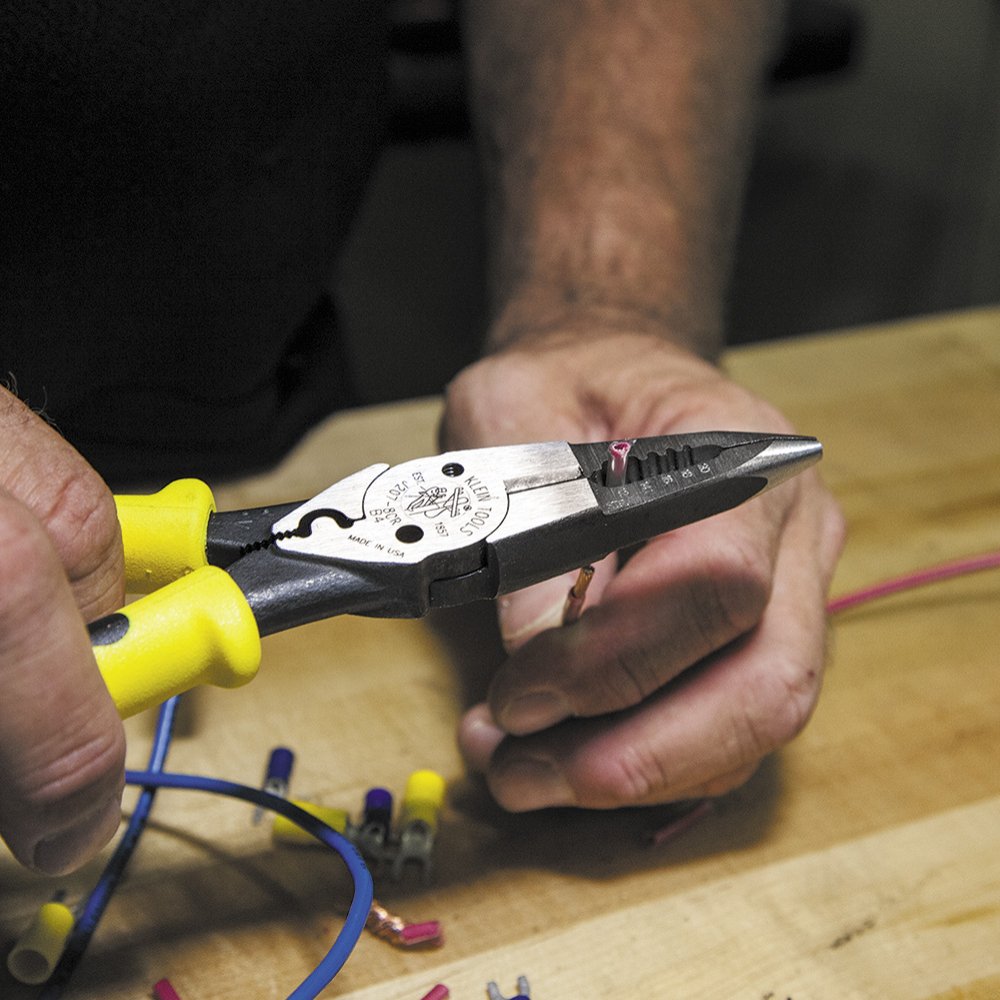

• Crimps non-insulated connectors, lugs and terminals
• Dual material Journeyman™ handles provide better grip
• Made in USA

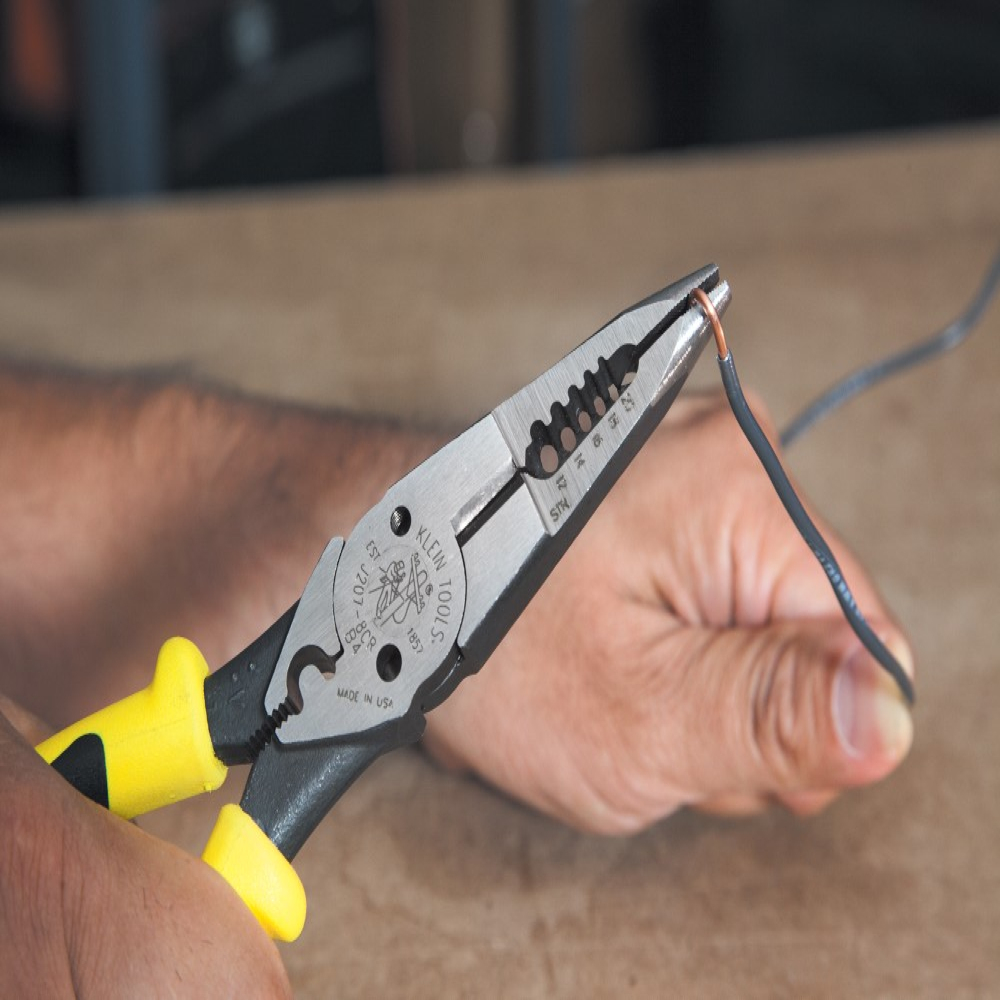

• Long nose for extended reach, grabbing and looping wire
• Forged steel for maximum durability
• Includes Crimper

Warnings

• NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.
• Never use on or near live electrical circuits.
• Always wear approved eye protection.

Specifications

• Jaw Width: 1" (2.5 cm)
• Jaw Length: 2.214" (5.6 cm)
• Material: Steel
• Knife Length: 0.5" (1.3 cm)
• Application: 8-16 AWG Solid and 10-18 AWG Stranded Wire
• Handle Length: 4.55" (11.6 cm)
• Handle Color: Yellow/Black
• Type: All-Purpose Pliers - Crimping
• Insulated: No
• Point Diameter: 0.15" (0.38 cm)
• Jaw Thickness: 0.5" (1.3 cm)
• Overall Length: 8.48" (21.5 cm)
• Joint Type: Hot Riveted
• Tether Capable: No
• Handle Finish: Journeyman™ Dual-Material
• Height: 0.3600 in
• Width: 2.0800 in
• Depth: 8.4800 in
• Weight: 0.6000 lbs
