Permaground Copper Grounding Grid, Main Conductor Range 500-250, Tap Range 2-6, Ground Rod Sizes 5/8 to 3/4in, Rebar Sizes #5-#6, UL, CSA
SKU: #256977
Part: #GGA-4
UPC: 783669260069
Permaground Copper Grounding Grid, Main Conductor Range 500-250, Tap Range 2-6, Ground Rod Sizes 5/8 to 3/4in, Rebar Sizes #5-#6, UL, CSA
SKU: #256977
Part: #GGA-4
UPC: 783669260069
Next day delivery
Description

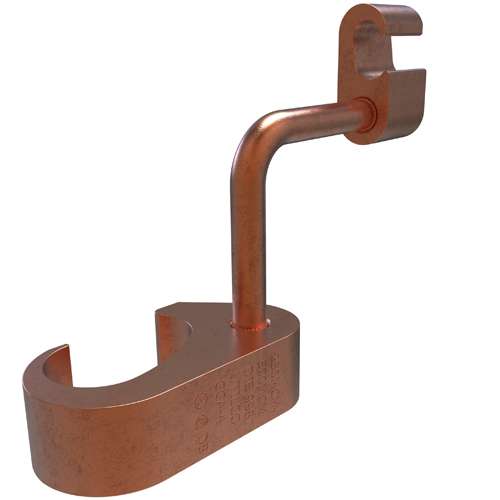

Permaground Copper Grounding Grid GGA-4 – Copper Grounding Connector
The Permaground Copper Grounding Grid GGA-4 by ILSCO is a compression connector designed for grounding and bonding copper conductors in electrical distribution systems. It is suitable for connecting copper ground grid systems or linking copper ground grids to copper clad ground rods. This connector supports applications in electrical distributor setups, lighting solutions, wire and cable grounding, and switchgear supplier systems. The GGA-4 is engineered for direct burial in earth or concrete, ensuring reliable grounding in demanding environments.
- Main Conductor Range: 250 kcmil to 500 kcmil
- Tap Range: 6 Sol - 2 Str
- Ground Rod Sizes: 5/8 inch to 3/4 inch
- Rebar Sizes: #5 to #6
- Product Weight: 70 lbs
- Certifications: UL Listed, CSA Certified
- Manufacturer: ILSCO
- Manufacturer Part Number: GGA-4
- UPC: 0783669260069
- Suitable for direct burial in earth or concrete
Specifications
- Pre-filled with inhibiting compound to prevent corrosion
- Allows adjustment of each side of the connector prior to installation
- Compatible with ILSCO and Burndy Type U and P dies for proper crimping
- Provides good rotational resistance when used with ground rod or rebar
- Supports crimping tools applying at least 12 tons of pressure for secure connections
- Each side of the connector can be rotated around the ground rod or rebar before crimping
- Designed for use in grounding and bonding systems in electrical distribution and lighting solutions
Features
- GGA Series Information Sheet (PDF)
