Features

• 2 ON/2 OFF settings per day with removable trippers, more ON/OFF events with addition of extra trippers
• Minimum 30-min ON/OFF time

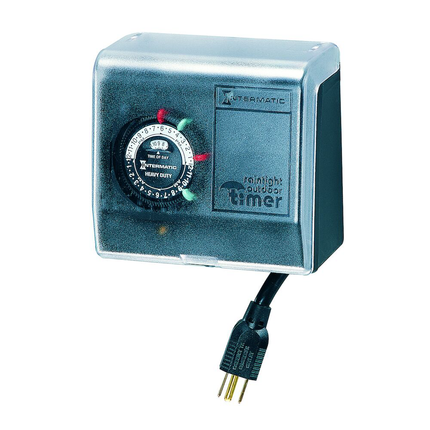

• Built into outdoor rated enclosure with clear or black flip cover
• Grounded standard or locking type style NEMA plug and receptacle
• Plugs directly into wall outlet

Prop 65

• Please see the Warning @ www.P65Warnings.ca.gov - DEHP

Specifications

• Country of Origin: Mexico
• Product Height: 5.375 in; 137 mm
• Product Depth: 2.5 in; 64 mm
• Warranty Period: 1-Year limited
• Minimum On Off Time: 30 min
• Usage Environments: Outdoor
• On Off Operations: 2
• Plug Configuration: 5-15
• Color: Black
• Cord Size: 22"
• Applications: Outdoor Lighting Control; Landscape Water Control; Pool Pump; Outdoor Water Fountains
• Application Compatibilities: Incandescent; Tungsten
• Input Voltage Ranges: 120 VAC, 60 Hz
• Cover Color: Clear
• Mechanism Type: Analog/Mechanical
• PDF Standards And Certifications: cCSAus

Certifications

• CSA Certification: cCSAus

Load Ratings

• Incandescent Load Ratings: 1800 W, 120 VAC, 60 Hz
• Tungsten Load Ratings: 1800 W, 120 VAC, 60 Hz
• Resistive Load Ratings: 15 A, 120 VAC, 60 Hz
• Motor Load Ratings Ranges: 1 HP, 15 FLA, 90 LRA @ 120 VAC
