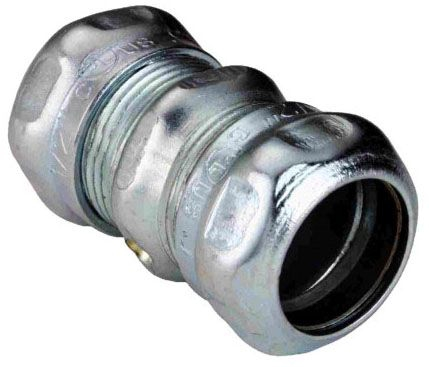

OF7618, EMT Conduit Coupling – Steel EMT Compression Coupling

Orbit Industries OF7618 EMT conduit coupling is a steel compression fitting designed to connect the ends of two EMT thinwall conduits, effectively extending the raceway in electrical installations. This product is suitable for electrical distributors, lighting solutions, wire and cable management, and switchgear suppliers requiring durable and mechanically protective conduit connections. The zinc electroplated steel construction ensures corrosion resistance and mechanical strength, making it appropriate for applications above 600 volts.

Specifications

• Manufacturer: Orbit Industries
• Manufacturer Part Number: OF7618
• Material: Zinc Electroplated Steel
• Trade Size: 3 inches
• Length (A): 3.425 inches
• Diameter (B): 3.843 inches
• Dimension (C): 3.543 inches
• Product Weight: 29.84 lbs
• UL Certification: UL file E310660 (1/2” - 2”), UL file E310658 (2-1/2” - 4”)
• Conforms to UL 514B standard

Features

• Steel construction provides mechanical protection for conduit connections
• Electroplated zinc finish for corrosion resistance
• Compression type coupling for secure and reliable conduit joining
• Concrete-tight when taped, suitable for embedded conduit applications
• Suitable for electrical installations above 600V
• Compression cap color may vary

Downloads and Links

• Orbit Industries Official Website
• EMT Fittings Catalog (PDF)
• OF7618 Specification Sheet (PDF)
