Features

• First true industry-exclusive “fail safe” design assures lights ON meeting life safety requirements of NFPA 101
• Robust power pack meets intense plug load control requirements of CA Title 24/ASHRAE 90.1
• Industry exclusive Switched Daylighting Power Pack models for use with Wall Switches, Occupancy Sensors and Photocells
• Robust and reliable mechanical latching relays specifically designed to operate LED’s and high inrush electronic ballast loads
• Surpasses industry standards for short circuit protection (NEMA 410 16 Amp ballast overload testing)
• Tested to exceed 1.5 million switching cycles under standard load
• Built in manual ON switching control to meet CA Title 24 standards
• Models support a wide range of applications including switched daylighting, occupancy sensing control, bi-level switching, and metering/mechanical applications
• Overloaded at 16A

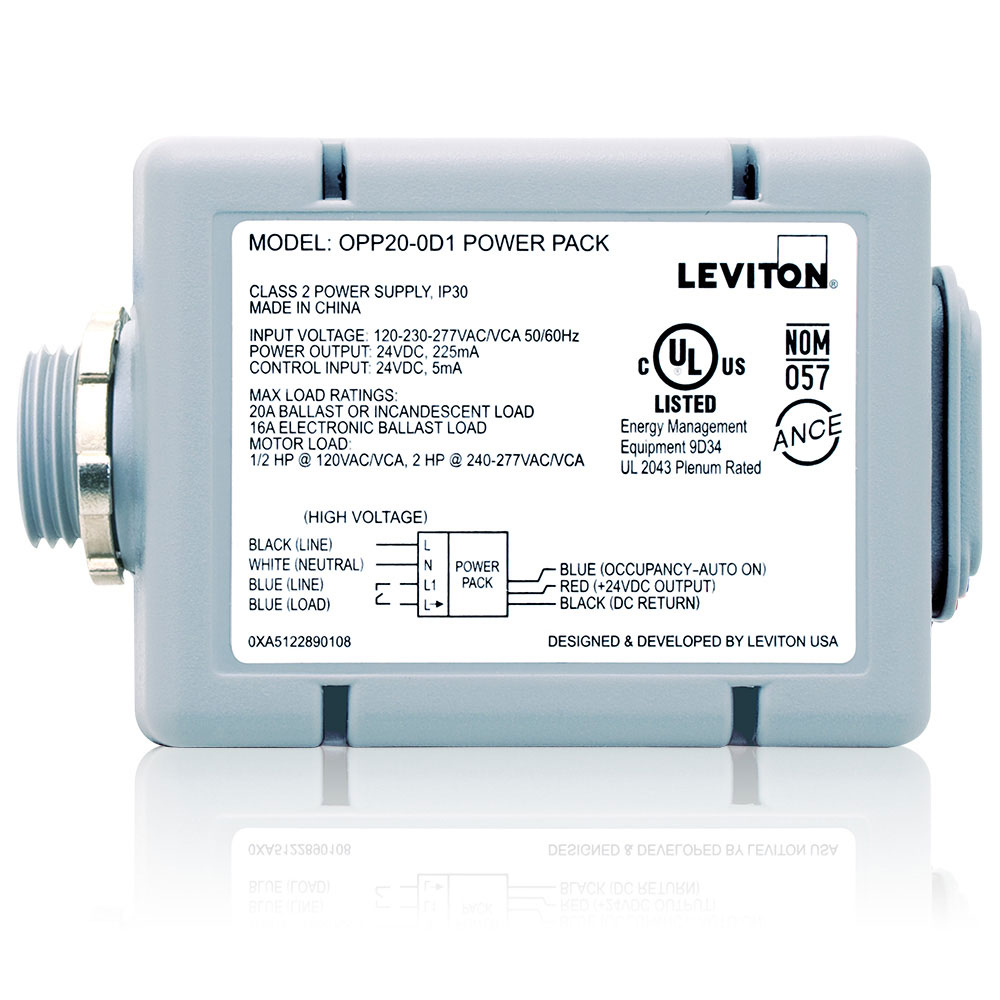

• The Leviton OPP20 Super Duty Power Pack is the first power pack designed to control virtually any lighting or receptacle circuit load to meet today’s challenges for solid state lighting control and tougher code requirements for unmatched performance and durability. The Power Pack models are cost-effective with simplified energy management tools for daylight harvesting and energy management. Do you have a question about an occupancy sensor or vacancy sensor? Contact us to learn more.

Specifications

• Country of Origin: China
• RoHS Compliant: False

Product Features

• Color: Gray
• Product Line: OPP20
• Sensor Type: Power Pack

Electrical Specifications

• Frequency: 50/60Hz
• Voltage: 120/230/277 VAC

Mechanical Specifications

• Neutral Wire Connection: Required
• Relay Type: Latching

Standards and Certifications

• Title 24 Compliant: Yes

Downloads

Product Specification

Application Note

Product Bulletin

Instruction Sheet
