Features

• Ocal conduit bodies are shipped with a cover and encapsulated stainless steel screws.
• Covers are coated with a molded flange to seal the conduit body while the conduit body is molded with a flat surface on its opening to seal with the cover.
• Bodies are designed with a flat back, allowing more cubic inch capacity. The flat back also keeps the body more stable during installation, requiring fewer conduit straps.
• A minimum of .040 in. PVC coating is bonded to the exterior.
• The conduit body and cover are double coated with a nominal .002 in. blue urethane on both the interior and exterior, before PVC coating is applied
• Ocal pressure-sealing sleeves on all threaded hubs.

Application

• Connect conduit sections
• Provide taps for branch conduit runs
• Provide for access to conductors for maintenance and future system changes
• Make 90° bends in conduit runs
• Provide openings for making splices and taps in conductors
• Act as pull outlets for conductors being installed

General

• Finish: PVC Coated
• Color: Dark Gray
• Conduit Body Shape: LB
• Material: Gray Iron
• Trade Size (inches): 1

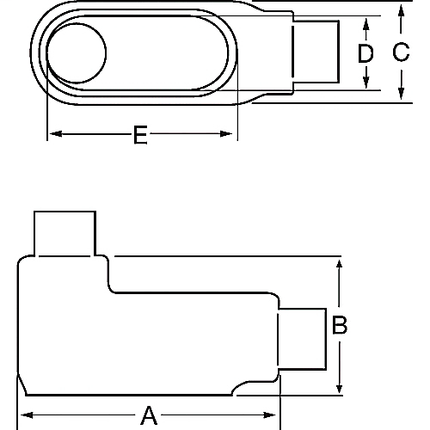

Dimension Information

• Dimension B (inches): 2.65
• Dimension A (inches): 6
• Dimension D (inches): 1.35
• Dimension E (inches): 4.55
• Dimension C (inches): 1.8

Technical Information

Specifications

Packaging

• T&B Sold in UOM: Each
• Outer Package: 10
• T&B Weight Per UOM: 2.11 lbs. Each
• Package Height: 8.4
• Package Width: 8.5
• Package Length: 14.15

Application Support

Notes

• Available in dark gray, white and light blue. Custom colors are also available upon request. Please contact Technical Services-888-862-3289
• Dimensional values are of uncoated conduit bodies.

Certifications

• UL
• CSA
