Features

• Available for 120-277V line voltage switching (sink- only control) 0- 10 V- LED drivers and ballasts (power pack not required for loads up to 8 A)
• Excellent for residential or commercial applications
• Intuitive operation; easy to use
• Slide-to-off and preset models available
• Enclosed heat sink for aesthetically pleasing appearance
• Multi-gang alignment for quick and easy installation
• Full family of products for most lighting sources, plus matching accessories and wallplates
• Rated at 120V, 60Hz, unless noted otherwise
• Custom products (CPN) are available to meet specific customer needs. Please contact Lutron Customer Assistance at 1.844.LUTRON1 (588.7661) for availability

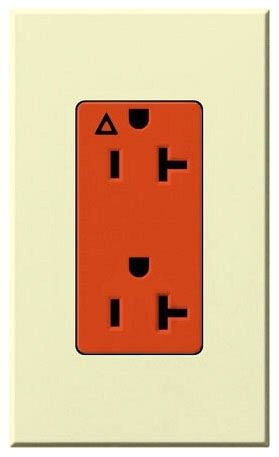

• Receptacle is orange for easy ID and circuit delineation
• Model number color code is for wallplate only
• Includes 1-gang wallplate.

Standards and Certifications

• UL
• CSA
• NOM

Specifications

• Amperage Rating: 20.000000000000000 A
• Connection: Screw terminal
• Environmental Conditions: 0 to 90% humidity, non-condensing
• Mounting: Wallbox
• NEMA Rating: 5-20R
• Number of Poles: 2
• Number of Wires: 3,4,5
• Type: Isolated ground receptacle
• Voltage Rating: 125
• Wattage: 2500.000000000000000 W
• Wire Size: 10 to 12
• Insulation: Plastic
• Material: Plastic/Metal
• Temperature Rating: 32 to 104 F
• Color: Almond
• Size: 4.56 x 2.75 in
