Specifications

General

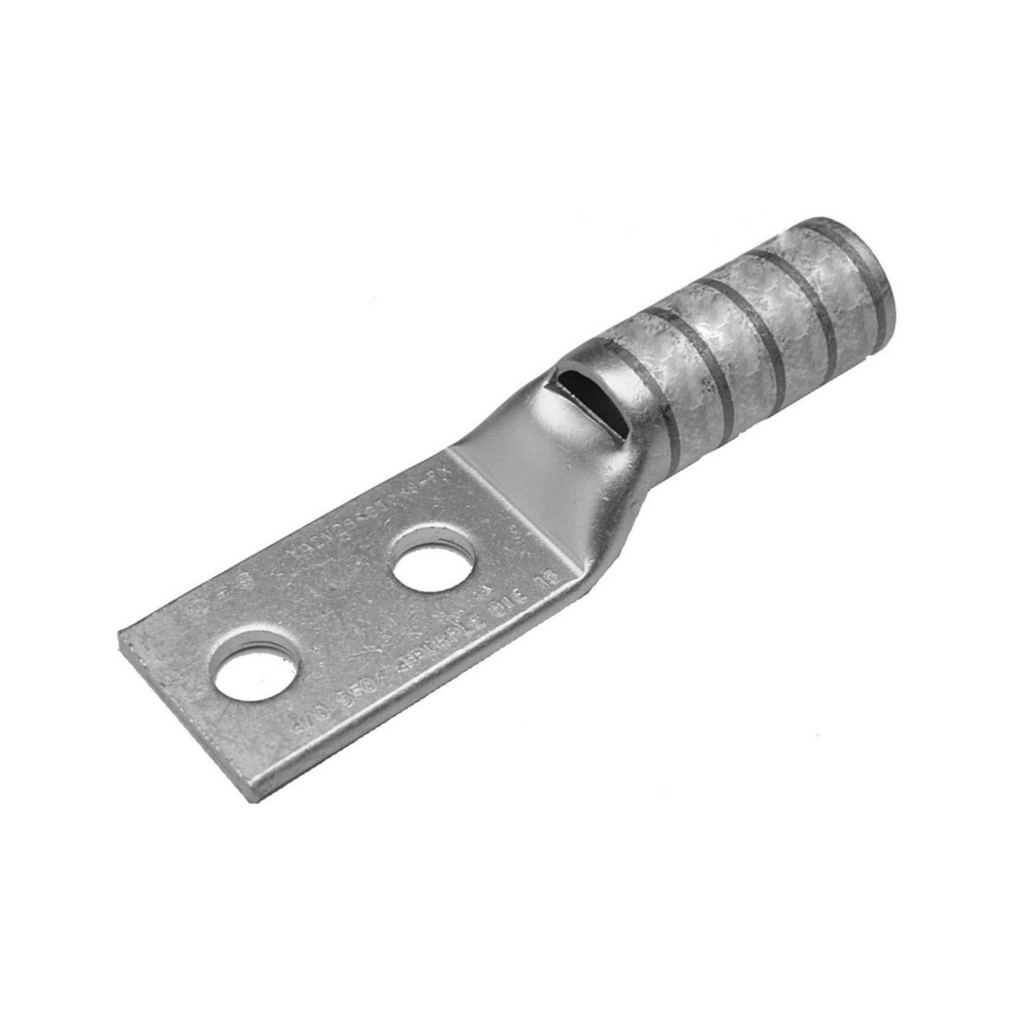

• Application: For Flex Conductors
• Color Code: Pink
• Connector Type: Terminal
• Die Index: L99
• Feature - Barrel Style: Skived
• Feature - Barrel Type: Long
• Material: Copper
• Physical Attribute - Number of Holes: 2
• Plated: Y
• Plating Type: Tin
• Sub Brand: HYLUG
• Trade Name: HYLUG™
• Type: Long Barrel, Skive
• UPC: 781810228678
• UPC 12 Digit: 7818102286788

Dimensions

• Dimension - B Length fraction: 2-13/16 in
• Dimension - B Length inch: 2.81 in
• Dimension - Bolt Hole Size inch: 0.56 in
• Dimension - Bolt Size fraction: 1/2
• Dimension - Hole Size inch: 0.56 in
• Dimension - Hole Size mm: 14 mm
• Dimension - L Length Overall mm: 171 mm
• Dimension - Length Overall inch: 6.72 in
• Dimension - Length Side B inch: 6.72 in
• Dimension - N inch: 0.62 in
• Dimension - Outside Diameter inch: 1.25 in
• Dimension - Pad Width inch: 1.84 in
• Dimension - Strip Length inch: 2-3/4
• Dimension - Z inch: 0.65 in
• Physical Attribute - Tongue Angle: Straight

Electrical Ratings

• Rating - KVA: 35 kV
• Rating - Minimum Voltage: 600
• Voltage - Maximum: 35000

Conductor Related

• Conductor - Copper DLO Size: 535.3 (1325/#24) DLO
• Conductor - Copper DLO Size Range: 535.3 (1325/#24) DLO
• Conductor - Copper Flex G Size: 500 kcmil
• Conductor - Copper Flex G Size Range: 500 kcmil
• Conductor - Copper Flex H Size: 500 kcmil
• Conductor - Copper Flex H Size Range: 500 kcmil
• Conductor - Copper Flex I Size: 500 kcmil
• Conductor - Copper Flex I Size Range: 500 kcmil
• Conductor - Copper Flex K Size: 500 kcmil
• Conductor - Copper Flex K Size Range: 500 kcmil
• Conductor - Copper Flex M Size: 500 kcmil
• Conductor - Copper Flex M Size Range: 500 kcmil
• Conductor - Material: Copper

Certifications and Compliance

• Certification - CSA Approved: Yes
• Certification - ETL: No
• Certification - UL Recognized: No
• Certification - cULus: No
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes

Logistics

• Minimum Pack Quantity: 1
