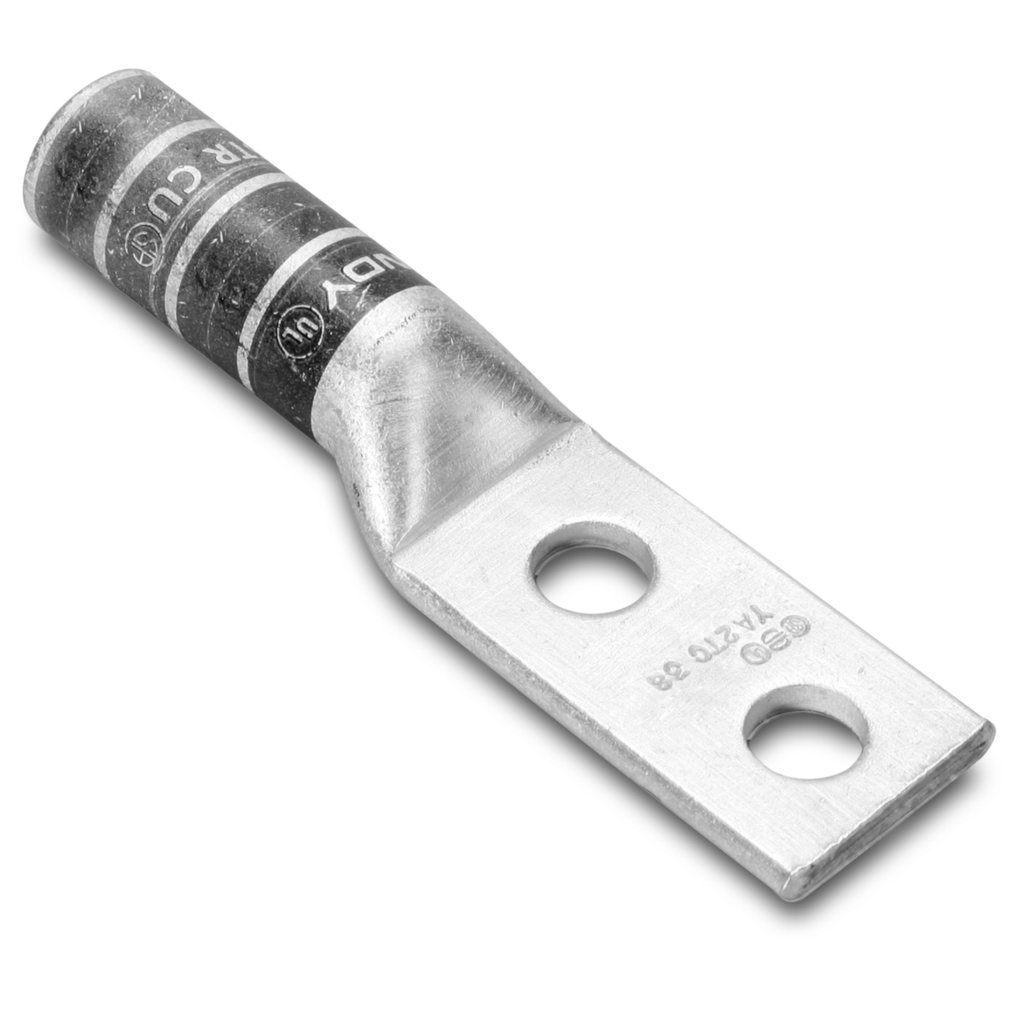

Specifications

General

• Application: For Flex Conductor
• Color Code: Blue
• Connector Type: Terminal
• Die Index: 7;374
• Feature - Barrel Style: Chamfered
• Feature - Barrel Type: Long
• Material: Copper
• Physical Attribute - Number of Holes: 2
• Physical Attribute - Tongue Type: Straight
• Plated: Y
• Plating Type: Tin
• Sub Brand: HYLUG
• Trade Name: HYLUG™
• Type: Long Barrel, Tin Plated
• UPC: 781810019160
• UPC 12 Digit: 7818100191600

Dimensions

• Dimension - B Length inch: 1.12
• Dimension - Bolt Hole Size inch: 0.41
• Dimension - Hole Size inch: 0.41
• Dimension - Hole Size mm: 10
• Dimension - L Length Overall mm: 82
• Dimension - Length Overall inch: 3.22
• Dimension - N inch: 0.41
• Dimension - Outside Diameter inch: 0.29
• Dimension - Pad Width inch: 0.58
• Dimension - Strip Length inch: 1-3/16 in
• Dimension - Stud Size inch: 3/8 in
• Dimension - Z inch: 0.43 in
• Physical Attribute - Tongue Angle: Straight

Electrical Ratings

• Rating - KVA: 35 kV
• Rating - Minimum Voltage: 600
• Voltage - Maximum: 35000

Conductor Related

• Conductor - Copper Solid Size: 6 AWG
• Conductor - Copper Str Navy Size: 30 (19) Navy
• Conductor - Copper Str Navy Size Range: 30 (19) Navy
• Conductor - Copper Str Size: 6 AWG
• Conductor - Material: Copper

Certifications and Compliance

• Certification - CSA Approved: Yes
• Certification - ETL: No
• Certification - UL Recognized: No
• Certification - cULus: No
• Industry Standard(s): UL468A-468B
• Standards - Industry Standards Met: UL468A-468B
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes

Logistics

• Minimum Pack Quantity: 1

Conductor Type

• CU C Str-Size
• CU C Str Navy-Size
