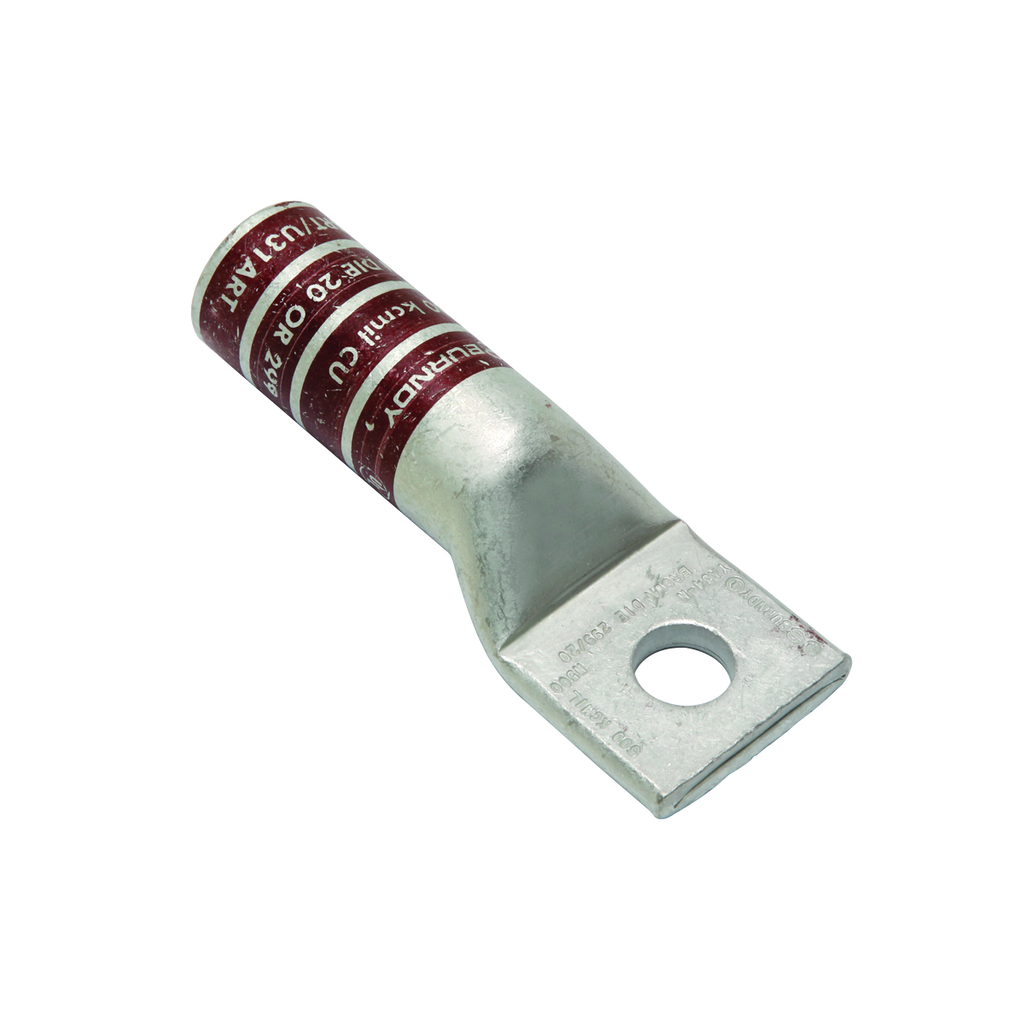

Specifications

General

• Application: For Code Conductor
• Color Code: Brown
• Connector Type: Terminal
• Die Index: 20;299
• Feature - Barrel Style: Chamfered
• Feature - Barrel Type: Long
• Material: Copper
• Physical Attribute - Number of Holes: 1
• Physical Attribute - Tongue Type: Standard
• Plated: Y
• Plating Type: Tin - Electro Plated
• Sub Brand: HYLUG
• Trade Name: HYLUG™
• Type: Long Barrel, Tin Plated
• UPC: 781810017937
• UPC 12 Digit: 7818100179377

Dimensions

• Dimension - B Length fraction: 2-1/4 in
• Dimension - B Length inch: 2.25 in
• Dimension - Bolt Hole Size inch: 0.52 in
• Dimension - Bolt Size fraction: 1/2
• Dimension - Hole Size inch: 0.56 in
• Dimension - Hole Size mm: 14 mm
• Dimension - L Length Overall mm: 110 mm
• Dimension - Length Overall inch: 4.32 in
• Dimension - N inch: 0.63 in
• Dimension - Outside Diameter inch: 1.06 in
• Dimension - Pad Width inch: 1.55 in
• Dimension - Strip Length inch: 2-5/16
• Dimension - Stud Size inch: 1/2
• Dimension - Z inch: 0.64 in
• Physical Attribute - Tongue Angle: Straight

Electrical Ratings

• Rating - KVA: 35 kV
• Rating - Minimum Voltage: 600
• Voltage - Maximum: 35000

Conductor Related

• Conductor - Copper DLO Size Range: N/A
• Conductor - Copper Str Size: 500 kcmil
• Conductor - Material: Copper

Certifications and Compliance

• Certification - CSA Approved: Yes
• Certification - ETL: No
• Certification - UL Recognized: No
• Certification - cULus: No
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes

Logistics

• Minimum Pack Quantity: 1
