Features

• Voltage Tester automatically detects and indicates low voltage (12-48V AC) and standard voltage (48-1000V AC) allowing broad application

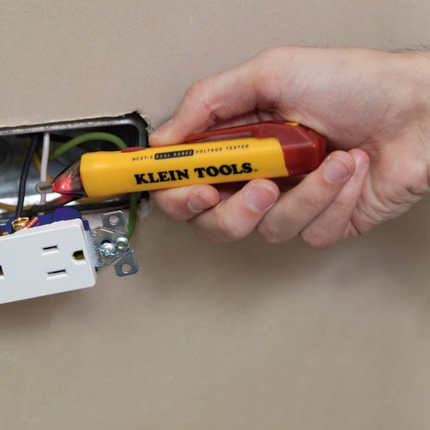

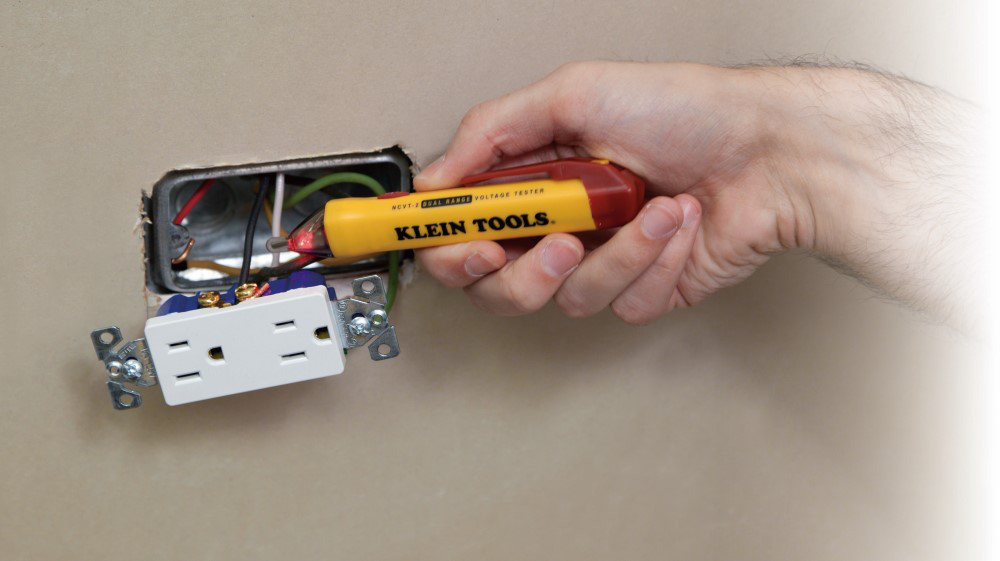

• Non-contact detection of standard voltage in cables, cords, circuit breakers, lighting fixtures, switches, outlets and wires

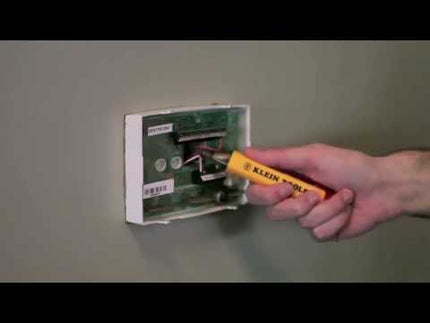

• Non-contact detection of low voltage in security, entertainment, communications, environmental control, and irrigation systems
• High intensity, bright green LED indicates the tester is operational and aids in illuminating the workspace

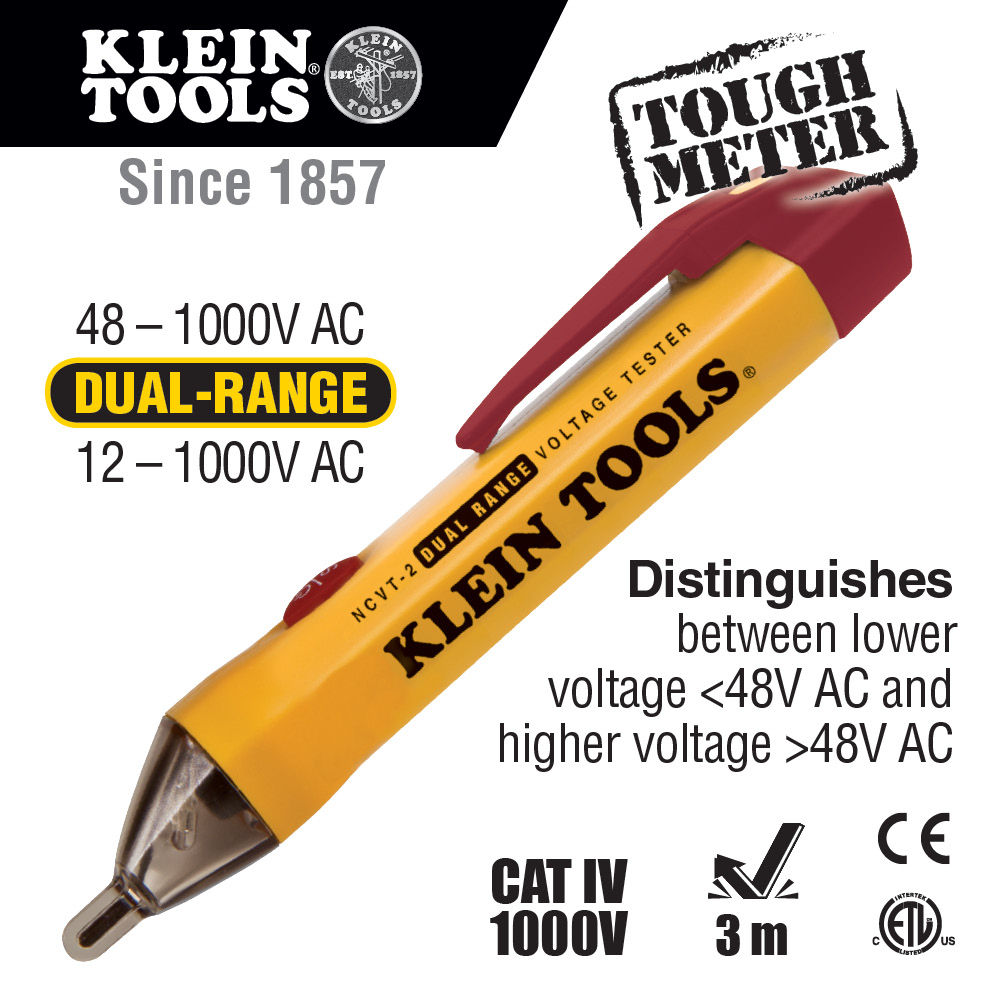

• Dual Range testing, select 12-1000V AC or 48-1000V AC
• Auto power-off feature conserves and extends battery life
• CAT IV 1000 Volt rating provides expanded operation and protection
• Lightweight, durable polycarbonate plastic resin construction; convenient pocket clip
• 9.8 ft / 3 m drop protection
• Safety Rating: CAT IV 1000V
• Conforms to CE requirements

Warnings

• Read, understand, and follow all warnings, cautions, safety information, and instructions in the manual before operating or servicing this tester. Failure to follow instructions could result in death or serious injury.
• Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.

Specifications

• Special Features: 50 - 500 Hz Low-Pitched Pulsing Beeping Sound; Blue LED Turns Off and Red LED Blinks (Approximately 2x Per Second)
• Voltage: 12 - 1000V AC
• Included: (2) Alkaline 1.5V AAA Batteries
• Standard: CAT IV 1000V
• Overall Width: 0.72" (1.8 cm)
• Weight: 0.80 oz (22.70 g)
• Frequency: 50 - 500 Hz
• Drop Protection: 9.8' (3 m)
• Overall Length: 5.50" (14 cm)
• Pollution Degree: 2
• Batteries: 2 x AAA
• Overall Height: 1.00" (2.5 cm)
• Style_Name: Dual Range
