Features

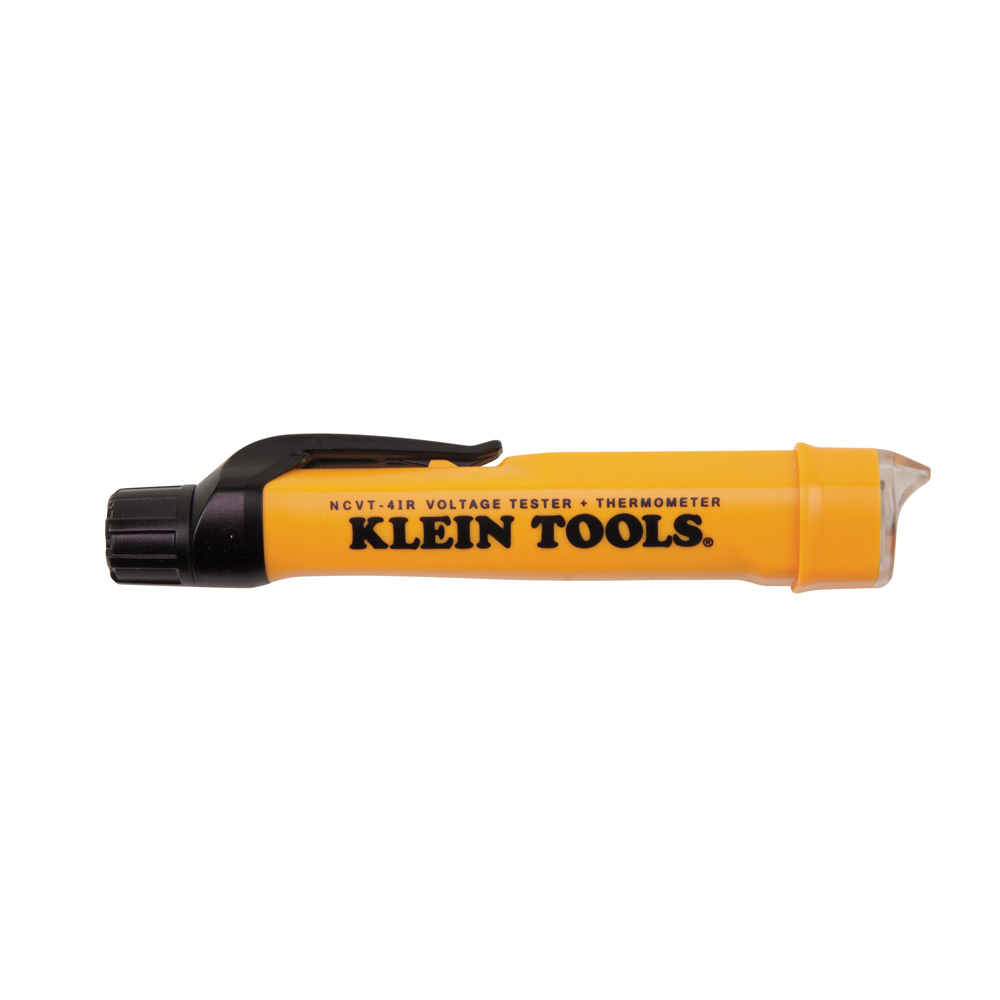

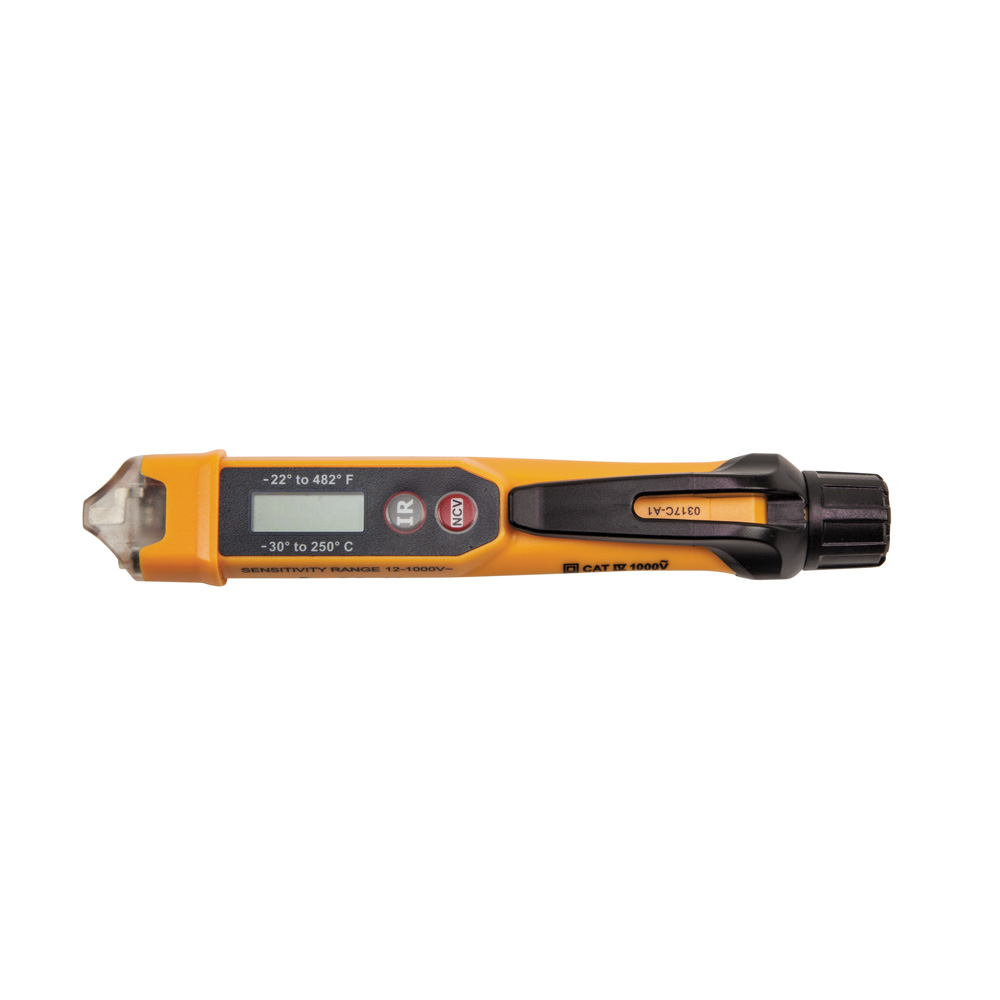

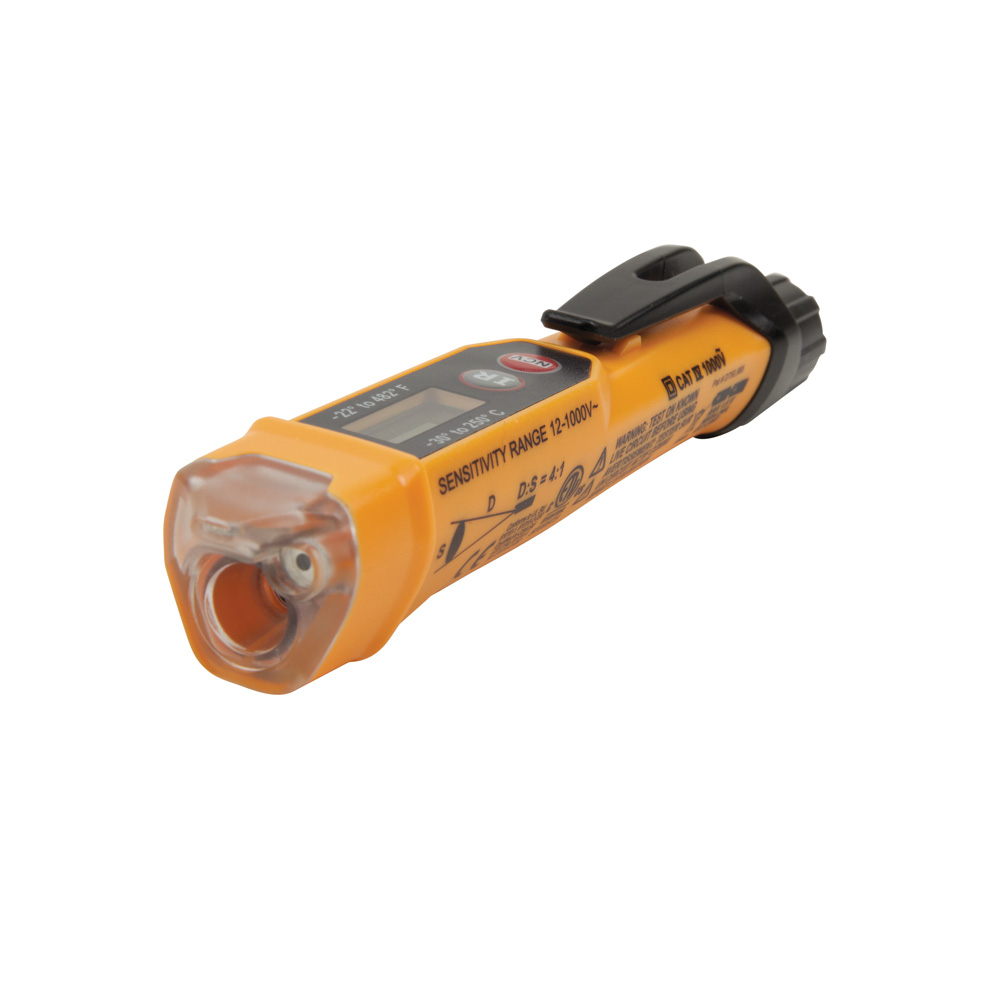

• Voltage Tester designed specifically for HVAC applications
• Non-Contact Voltage Tester provides non-contact determination of AC voltage in cables, cords, circuit breakers, switches, outlets and wires, and AC voltage in security, entertainment, communications, environmental control, and irrigation systems

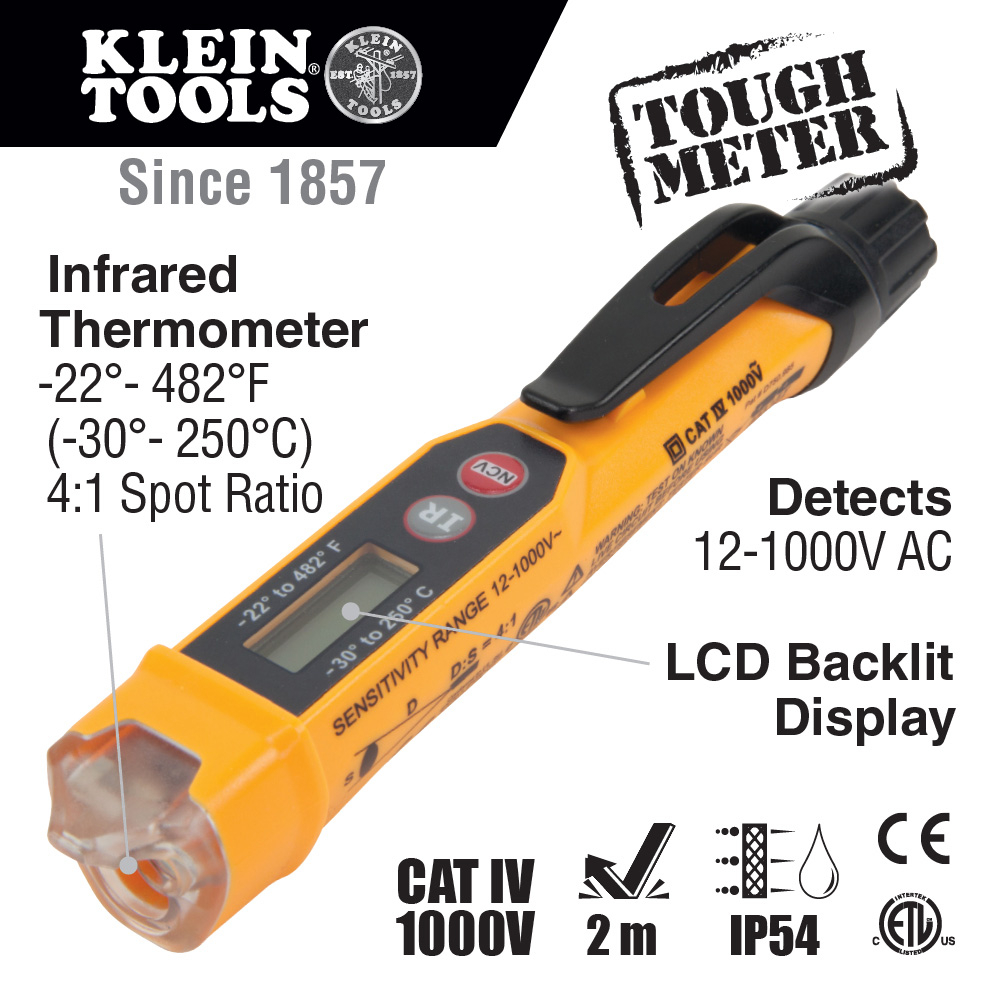

• Detects AC voltage from 12 to 1000V with visual and audible indicators
• 4 -1 distance-to-spot ratio IR thermometer with user selectable Degrees Fahrenheit or Degrees Celsius from -22 to 482-Degree Fahrenheit (-30 to 250-Degree Celsius)

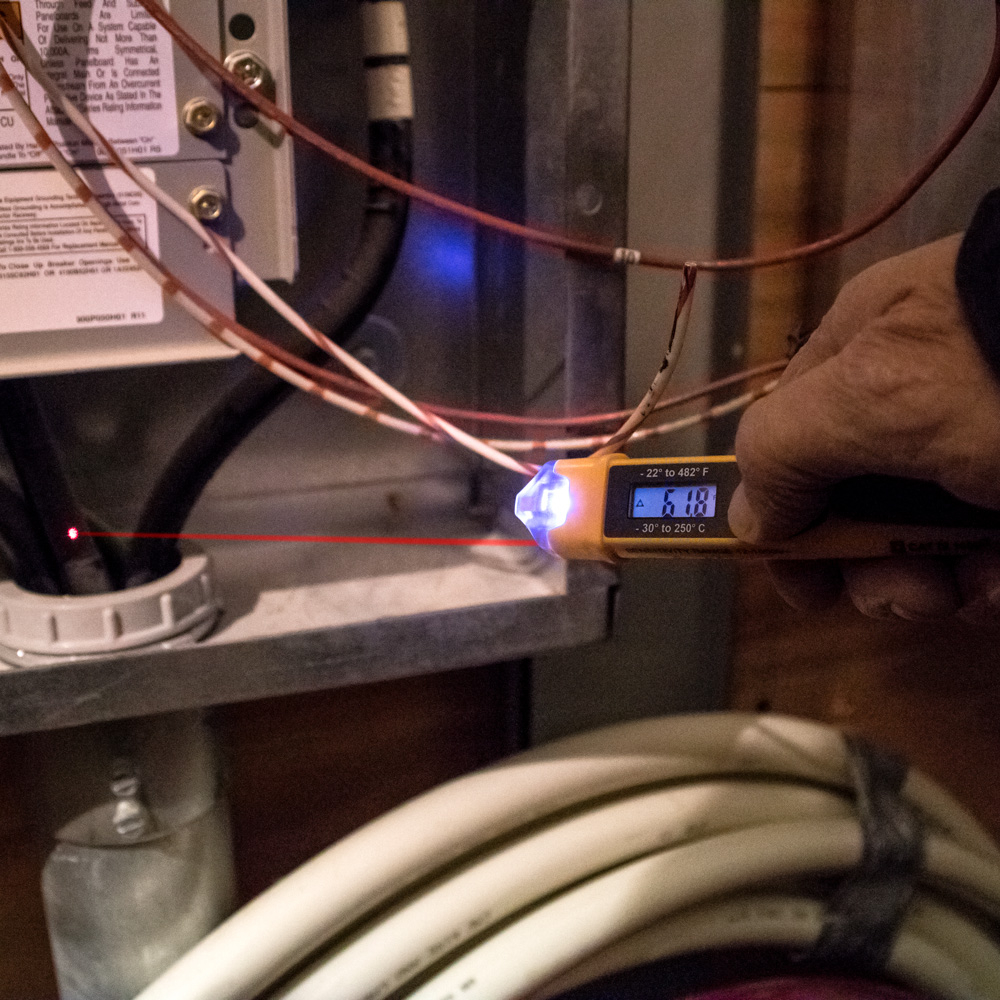

• Convenient laser pointer to target measurement area for temperature measurement

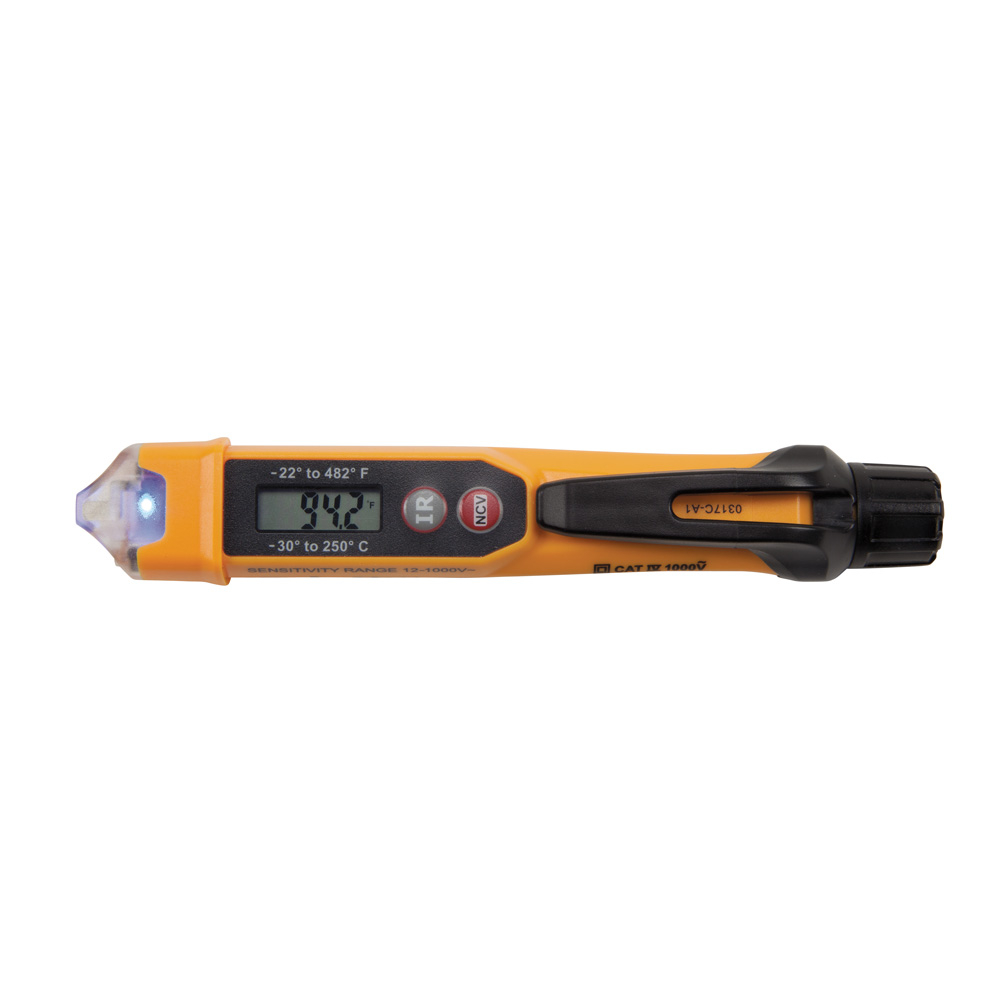

• Backlit LCD display with 0.1-Degree resolution
• Auto power-off conserves and extends battery life
• Screw-thread battery cap with O-ring ensures dust and water resistance
• Lightweight, compact tool with pocket clip provides easy storage and quick access
• : IR Thermometer, Laser Pointer, LCD, LED and Audible Beep Indications, Auto-Power Off, Pocket Clip

Warnings

• Do not direct laser beam into eyes, as this can cause permanent eye damage.
• Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all Test & Measurement devices before each use.
• Thermometer is NOT intended for use on people or animals.

Specifications

• Voltage: 12 - 1000V AC
• Weight: 2.00 oz (57.00 g)
• Overall Length: 6.25" (15.9 cm)
• Overall Width: 1.25" (3.2 cm)
• Application: HVAC
• Drop Protection: 6.6' (2 m)
• Type: Non-Contact
• Batteries: 2 x AAA
• Frequency: 50 - 500 Hz
• Ingress Protection: IP54
• Included: NCVT; Batteries
• Overall Height: 1.19" (3 cm)
• Standard: CAT IV 1000V
• Battery Life: Average - 134 hr; Continuous IR - 64 hr
• Item Height: 1.2100 in
• Item Width: 1.0800 in
• Item Depth: 6.2600 in
• Item Weight: 0.1120 lbs
