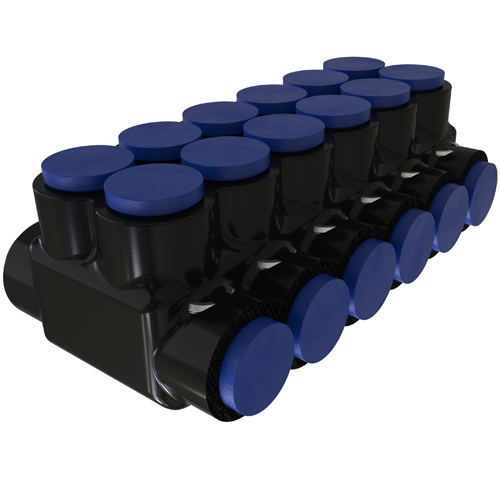

Specifications

• Height: 2.046 in | 51.9684 mm
• Length: 5.83 in | 148.082 mm
• Weight: 0.979 lbs
• Width: 3.198 in | 81.2292 mm

Additional Class Attributes

• Connection: Mechanical
• Contains DE-OX®: Yes
• Number of Conductors: 12
• Number of Poles: 1
• Number of Ports / Wireways: 12
• Number of Usable Ports: 12
• Replacement Part(s): Cap

Dimensions

• Drive Size Main: 5/16
• Drive Type Main: Internal Hex
• Height BX (IN): 3
• Height (mm): 51.9684
• Length (mm): 148.082
• Max Insulation OD (IN): 0.75
• Max Insulation OD (mm): 19.05
• Weight BX (LB): 2.854
• Width BX (IN): 6
• Width (mm): 81.2292

Additional Technical Specifications

• Conductor Type: Stranded, Flex

Material and Finish

• Conductor Material: Copper, Aluminum
• Connector Finish: Tin
• Insulation: Plastisol
• Material: Aluminum
• Wire Binding Hardware Finish: Tin
• Wire Binding Hardware Material: Aluminum

Bolt and Screw Sizes

• Number of Wire Binding Screws per Port: 1
• Wire Binding Screw Size: 9/16
• Wire Binding Torque: 335

Conductor Ranges

• Conductor Range AL Stranded (Primary, run, main, line): 250 kcmil - 6 Str
• Conductor Range AL Stranded (Secondary, tap, load): 250 kcmil - 6 Str
• Conductor Range CU Stranded (Primary, run, main, line): 250 kcmil - 6 Str
• Conductor Range CU Stranded (Secondary, tap, load): 250 kcmil - 6 Str
• Flex Conductor Range: 4/0-6 H,I,K 2/0-6 M 3/0-6 DLO

Voltage

• Voltage Rating: 600 V

Color

• Cap Color Main: Blue
• Cap Color Tap: Blue
• Color: Black

Testing Standards

• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• UL Control Number: 453G
• UL / CULUS Specification: UL 486A/B Listed
• UL File Number: E6207

General

• Bag Quantity: 1
• Carton Quantity Description: STD PACK QTY 2
• Dual Rated: Yes
• NEMA Code: S-588-4
• UPC Code: 78366972867

Environment and Temperature

• Environmental Conditions: Cold temperature rated to -45°C
• Flammability Rating: Insulation rated per UL 94
• Temperature Rating: 90°C
