Features

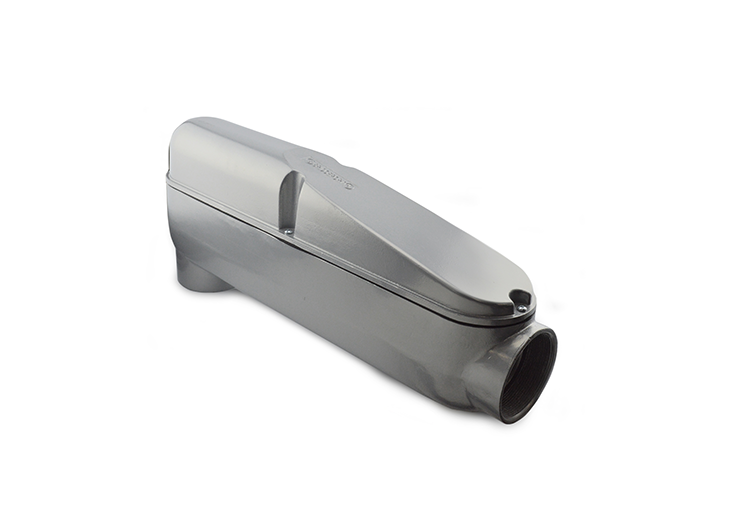

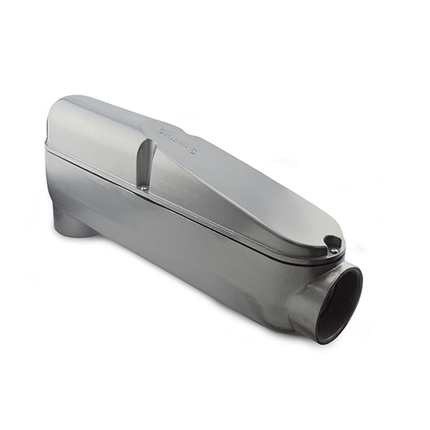

• Easy Pulling - Designed with a split diagonal cover and increased body size, mogul conduit bodies provide ample space for pulling large, heavy wires at a 90 degree angle
• Threaded Hubs - NPT threads allow rigid and intermediate metal conduit to be screwed directly into the conduit body
• Easy Access - Conduit bodies provide easy access to the interior of conduit systems for pulling, inspection and routine maintenance
• Aluminum Body - Copper-free aluminum conduit bodies reduce the weight of your wiring system while also trimming the costs of your installation
• Professional Performance - Mogul conduit bodies are UL-Listed under File No. E11077, meet the NEC 6X Rule and are NEMA TYPE 2, 3, 3R and 4

Certifications and Standards

• UL-514A

Specifications

• Country of Origin: China
• Length: 29.12 in
• Width: 11.94 in
• Depth: 5.63 in
• Weight: 1840 lbs
• BPT Trade Size: 4"
• COLOR: Gray
• Field Application: Mogul style conduit body for use with threaded Rigid/IMC Conduit. Suitable for use in wet locations. Max wire fill 3-1000 MCM THHN, THWN, XHHW. Meets NEC 6X Rule.
• FINISH: Enamel paint
• MATERIAL: Aluminum
• NEMA Rating: FB-1
• UL File #: E11077
