Features

• Cable clamp swivels at 90°, permits parallel grounding of one pipe on a 90° cable run for grounding several parallel pipes
• One-wrench installation for simplified installation
• Rated for Direct Burial in earth or concrete
• UL467 Listed for the US and Canadian Markets
• Provides quality assurance to recognized industry NEC standards from an independent part

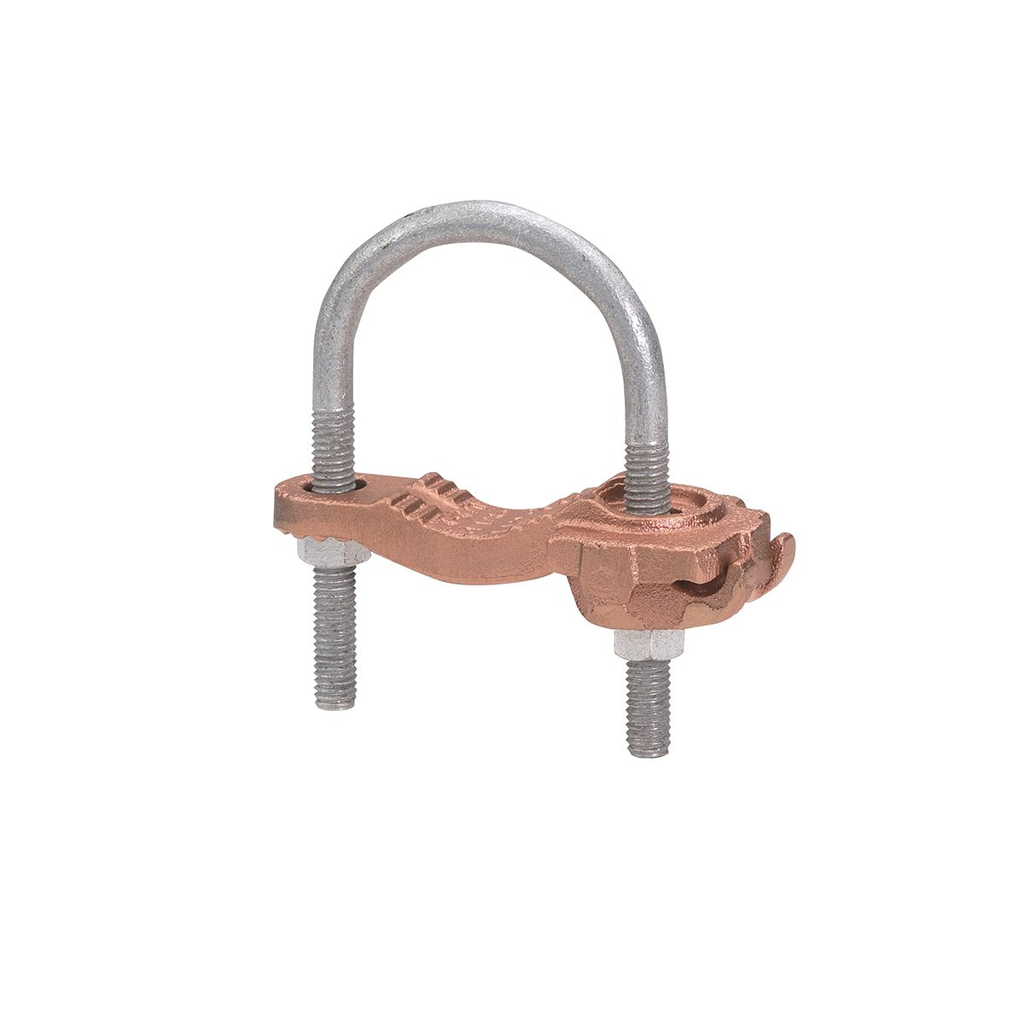

• High-Conductivity Copper Ground Connector For Connecting A Small To Medium Range Copper Ground Conductor To Water Pipe As Well As Structural And Reinforcing Rod Shapes, Cable Clamp Swivels At 90 DEG, Permits Parallel Grounding Of One Pipe Or A 90 DEG Cable Run For Grounding Several Parallel Pipes, One-Wrench Installation, Simplified Installation, Long Lasting Corrosion Resistance And Acceptable For Direct Burial In Earth Or Concrete, UL467 Listed, Provides Quality Assurance To Recognized Industry NEC Standards From An Independent Party, Ground Rod Size: 10 IN, Tube (ips) Size: 10 IN, Installation Torque: 240 IN-LB, Height: 12 IN, Width: 12.75 IN

Specifications

• Country of Origin: Mexico
• Buy American Compliant: Yes
• Conductor - Copper Solid Size Range: 4 AWG - 4/0 AWG
• Conductor - Copper Str Size: 4;3;2;1;1/0;2/0;3/0;4/0
• Conductor - Copper Str Size Range: 4 AWG - 4/0 AWG
• Conductor - Copper Tube Std Size: 10
• Conductor - Copper Tube Std Size Range: 10
• Conductor - Pipe or Round Tube Size: 10 in
• Dimension - B Length inch: 1.75 in
• Dimension - Height inch: 12.00 in
• Dimension - Length Overall inch: 1.75 in
• Dimension - Outside Diameter inch: 10.75 in
• Dimension - Width inch: 12.75 in
• Dimension - Width mm: 324 mm
• Width: 1.75 in
• Each - Width: 1.75 in
• Industry Standard(s): UL467
• Installation Torque Recommended in-lb: 200 lb-in
• Plated: N
• Plating Type: Unplated
• Product Type: Mechanical
• Standards - Industry Standards Met: UL467
• Standards - RoHS Compliance Status: CM
• U Bolt Type: 1029G
• Application: For Connecting A Small To Medium Range Copper Ground Conductor To Water Pipe As Well As Structural And Reinforcing Rod Shapes, Direct Burial Cables
• Special Features: Features: High-Conductivity Copper Ground Connector For Connecting A Small To Medium Range Copper Ground Conductor To Water Pipe As Well As Structural And Reinforcing Rod Shapes, Cable Clamp Swivels At 90 DEG, Permits Parallel Grounding Of One Pipe Or A 90 DEG Cable Run For Grounding Several Parallel Pipes, One-Wrench Installation, Simplified Installation, Long Lasting Corrosion Resistance And Acceptable For Direct Burial In Earth Or Concrete, UL467 Listed, Provides Quality Assurance To Recognized Industry NEC Standards From An Independent Party, Ground Rod Size: 10 IN, Tube (ips) Size: 10 IN, Installation Torque: 240 IN-LB, Height: 12 IN, Width: 12.75 IN
• Standard: UL467
• Sub Brand: MECHANICAL CONNECTOR
• Type: GAR3902
• ARRA Compliant: Yes
• Certification Agency: Proposition 65
• Class Code: B41
• Description - Invoice: 4-4/0, 10 IPS
• Freight Class Code: 16027000
• Harmonization Code: 8535908060
• Image Actual Or Representative: A
• Lead Time: 11 wk
• MSDS Flag: No
• Order Multiple: 1 EA
• Stock Indicator: S - Shelf Stock
• Sub Class Code: B41BDBF
• UL Listed: Yes
• Material: Copper Alloy
• Material - Hardware: Galvanized Steel
• Base Unit of Measure: EA
• Carton - SCC-14 Next Lower Level Sub Pack: 00781810234075
• Case - SCC-14 Next Lower Level Sub Pack: 30781810234076
• Each - Number of Sub Packs: 1
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Package - Gross Weight per Pack: 16.5 lb.
• Package - GTIN - Package: 30781810234076
• Package - Number of Sub Packs: 6
• Package - Pack Description: Package
• Package - SCC-14 Next Lower Level Sub Pack: 00781810234075
• Package - Total Units: 6 EA
• Package Height: 7.75 in
• Package Length: 14 in
• Package Quantity: 6 EA
• Package Weight: 16.5 lb.
• Package Width: 10.5 in
• Standard Package Quantity: 6

Certifications

• CSA Approved: No
• cULus: No
• ETL: No
• UL Listed Direct Burial: Yes
• UL Recognized: No
• EU RoHS Indicator: Yes
