Features

• Wire to Rebar
• Fence Post Grounding Connector
• Wire to Pipe
• One-wrench installation
• Rated for Direct Burial in earth or concrete
• UL467 Listed for US and Canadian Markets
• Select connectors qualified to IEEE-837-2014

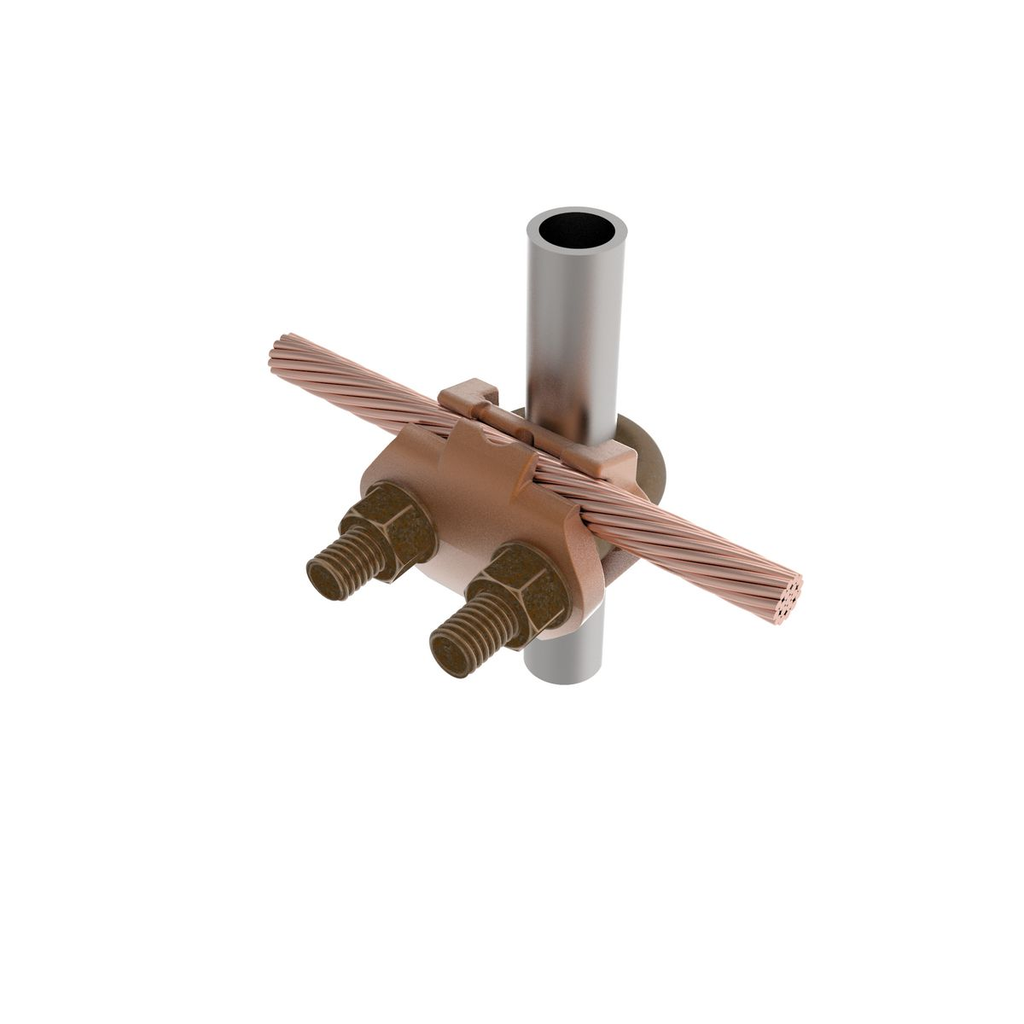

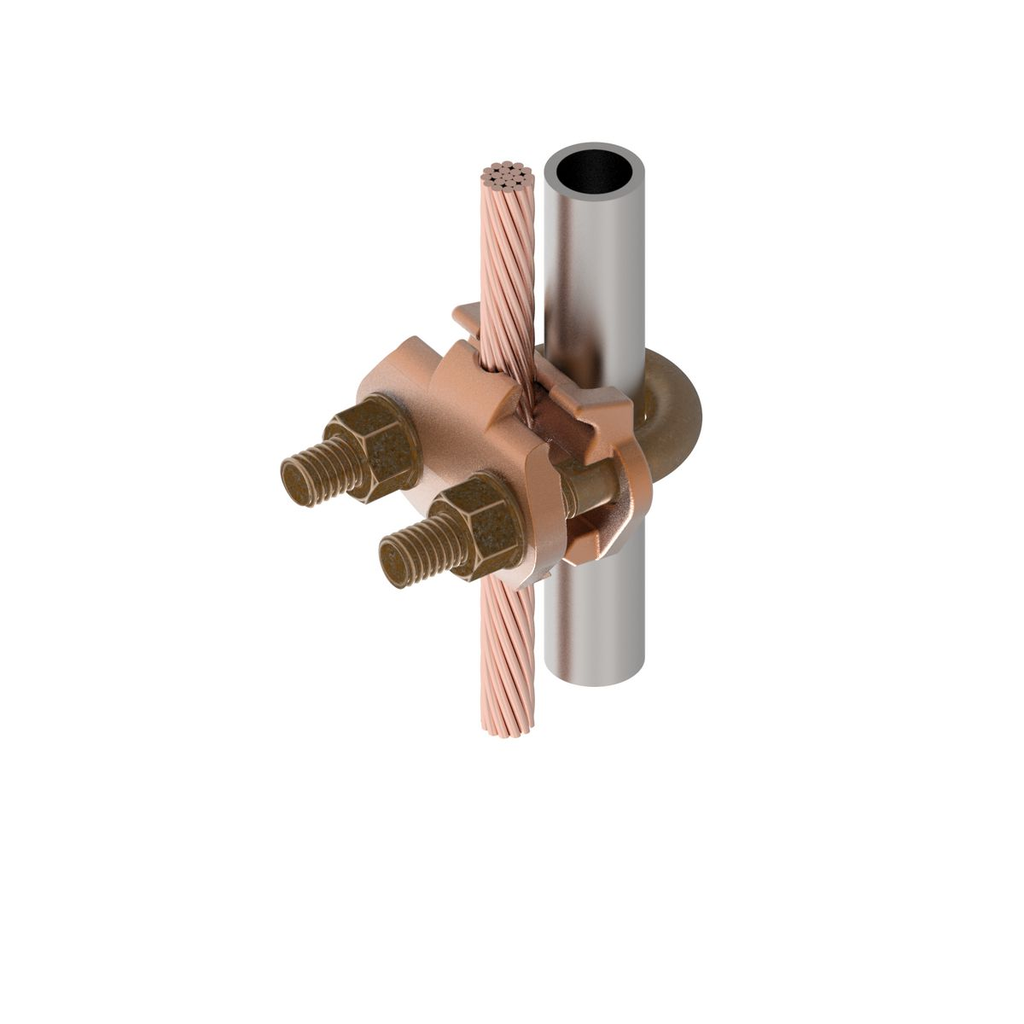

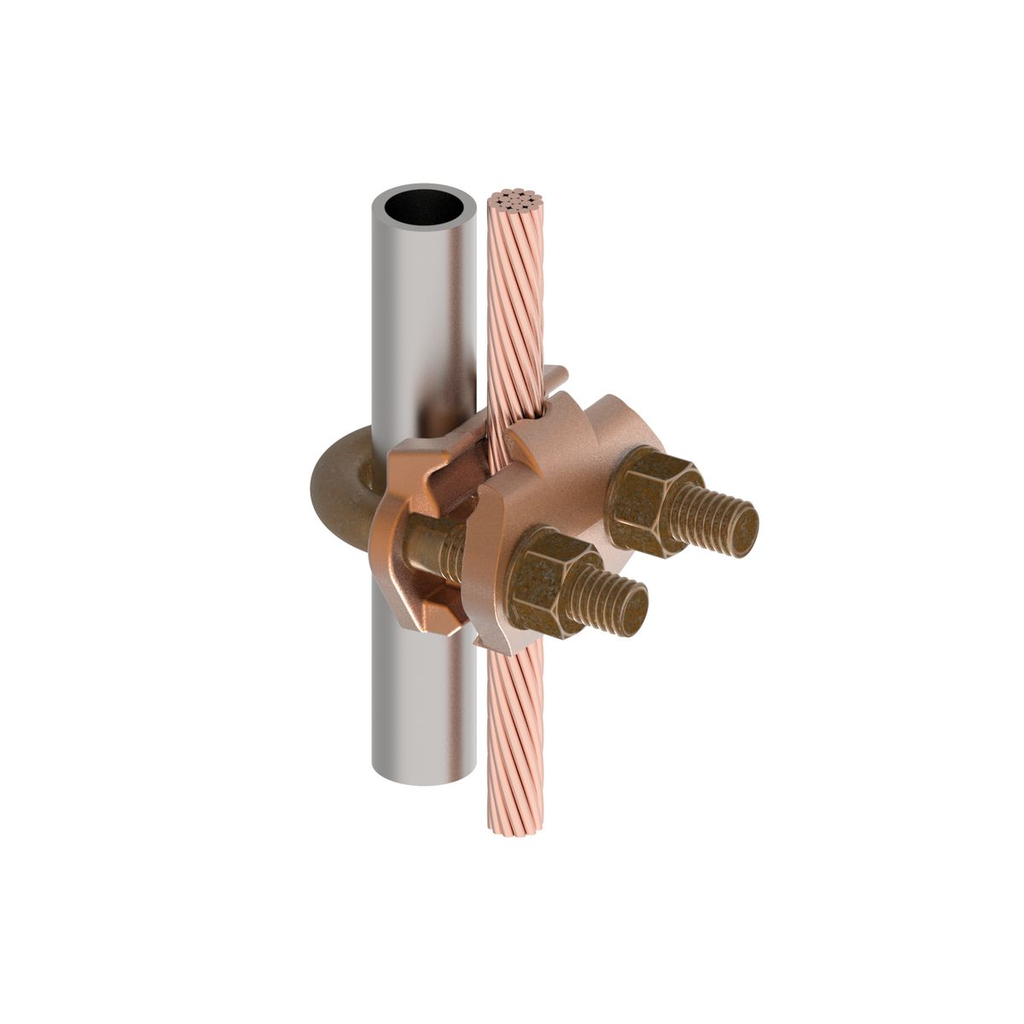

• High Copper Alloy Ground Connector For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Especially Good For Fence Posts, High Copper Alloy Cast Body With DURIUM U-Bolts, Nuts And Lockwashers, Permit Entire Connection To Be Buried In Ground Or Concrete Without Danger Of Corrosion, One-Wrench Installation, UL467 Listed, Acceptable For Direct Burial, Height: 2-7/8 IN, Ground Rod Size: 5/8 - 3/4 IN, Tube (ips) Size: 3/8 IN, Width: 2-1/8 IN, Rebar Size: #5 (5/8 IN) - #6 (3/4 IN), Installation Torque: 240 IN-LB

Specifications

• Country of Origin: Mexico
• Buy American Compliant: No
• Conductor - Copper Solid Size: 4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG
• Conductor - Copper Solid Size Range: 4 AWG-2/0 AWG
• Conductor - Copper Str Size: 5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG
• Conductor - Copper Str Size Range: 5 AWG - 2/0 AWG
• Conductor - Copper Tube Std Size: 3/8 IPS IPS
• Conductor - Copper Tube Std Size Range: 3/8 IPS IPS
• Conductor - Pipe or Round Tube Size: 3/8 in
• Conductor - Rebar Size: 5 ;6
• Conductor - Rebar Size Range: 5 -6
• Conductor - Rod Size: 0.625in - 0.75in
• Conductor - Rod Size Range: 5/8 in-3/4 in
• Dimension - B Length inch: 1.50 in
• Dimension - Height fraction: 2-7/8 in
• Dimension - Height inch: 2.88 in
• Dimension - L Length Overall mm: 40 mm
• Dimension - Length Overall inch: 1.56 in
• Dimension - Outside Diameter inch: 0.68 in
• Dimension - Width fraction: 2-1/8 in
• Dimension - Width inch: 2.06 in
• Dimension - Width mm: 52 mm
• Width: 2.06 in
• Each - Width: 2.06 in
• Industry Standard(s): UL467
• Installation Torque Recommended in-lb: 240 lb-in
• Plated: N
• Plating Type: Bright Dipped
• Product Type: Mechanical
• Standards - Industry Standards Met: UL467
• Standards - RoHS Compliance Status: EX
• U Bolt Type: 269
• Application: For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Direct Burial Cable, Fence Post
• Special Features: Features: High Copper Alloy Ground Connector For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Especially Good For Fence Posts, High Copper Alloy Cast Body With DURIUM U-Bolts, Nuts And Lockwashers, Permit Entire Connection To Be Buried In Ground Or Concrete Without Danger Of Corrosion, One-Wrench Installation, UL467 Listed, Acceptable For Direct Burial, Height: 2-7/8 IN, Ground Rod Size: 5/8 - 3/4 IN, Tube (ips) Size: 3/8 IN, Width: 2-1/8 IN, Rebar Size: #5 (5/8 IN) - #6 (3/4 IN), Installation Torque: 240 IN-LB
• Standard: UL467
• Sub Brand: MECHANICAL CONNECTOR
• Type: GAR
• Conductor Type: CU C Solid-Size;CU C Str-Size;CU Tube Std-Size;Rod-Size
• ARRA Compliant: No
• Certification Agency: Proposition 65
• Class Code: B41
• Description - Invoice: 4-2/0CU 3/8IPS
• Freight Class Code: 16027000
• Harmonization Code: 8535908060
• Image Actual Or Representative: A
• Lead Time: 10 wk
• MSDS Flag: No
• Order Multiple: 1 EA
• Stock Indicator: N - Non-stock
• Sub Class Code: B41BD1F
• UL Listed: Yes
• Material: Copper Alloy
• Material - Hardware: DURIUM™ Silicon Bronze
• Base Unit of Measure: EA
• BOX SIZE: 4.700x7.300x8.900 (in)
• Carton - Gross Weight per Pack: 0.000 lb.
• Carton - Number of Sub Packs: 25
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 00781810238202
• Carton - Total Units: 25
• Case - SCC-14 Next Lower Level Sub Pack: 30781810238203
• Each - Number of Sub Packs: 1
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Package - Gross Weight per Pack: 14.7 lb.
• Package - GTIN - Package: 30781810238203
• Package - Number of Sub Packs: 25
• Package - Pack Description: Package
• Package - SCC-14 Next Lower Level Sub Pack: 00781810238202
• Package - Total Units: 25 EA
• Package Height: 4.50 in
• Package Length: 7.06 in
• Package Quantity: 25 EA
• Package Weight: 14.7 lb.
• Package Width: 6.13 in
• Pallet - GTIN - Package: 70781810238201
• Pallet Height: 51.700 in
• Pallet Length: 48.000 in
• Pallet Weight: 4042.500 lb.
• Pallet Width: 48.000 in
• Standard Package Quantity: 25

Certifications

• CSA Approved: No
• cULus: No
• ETL: No
• UL Listed Direct Burial: Yes
• UL Recognized: No
• EU RoHS Indicator: Yes
