Features

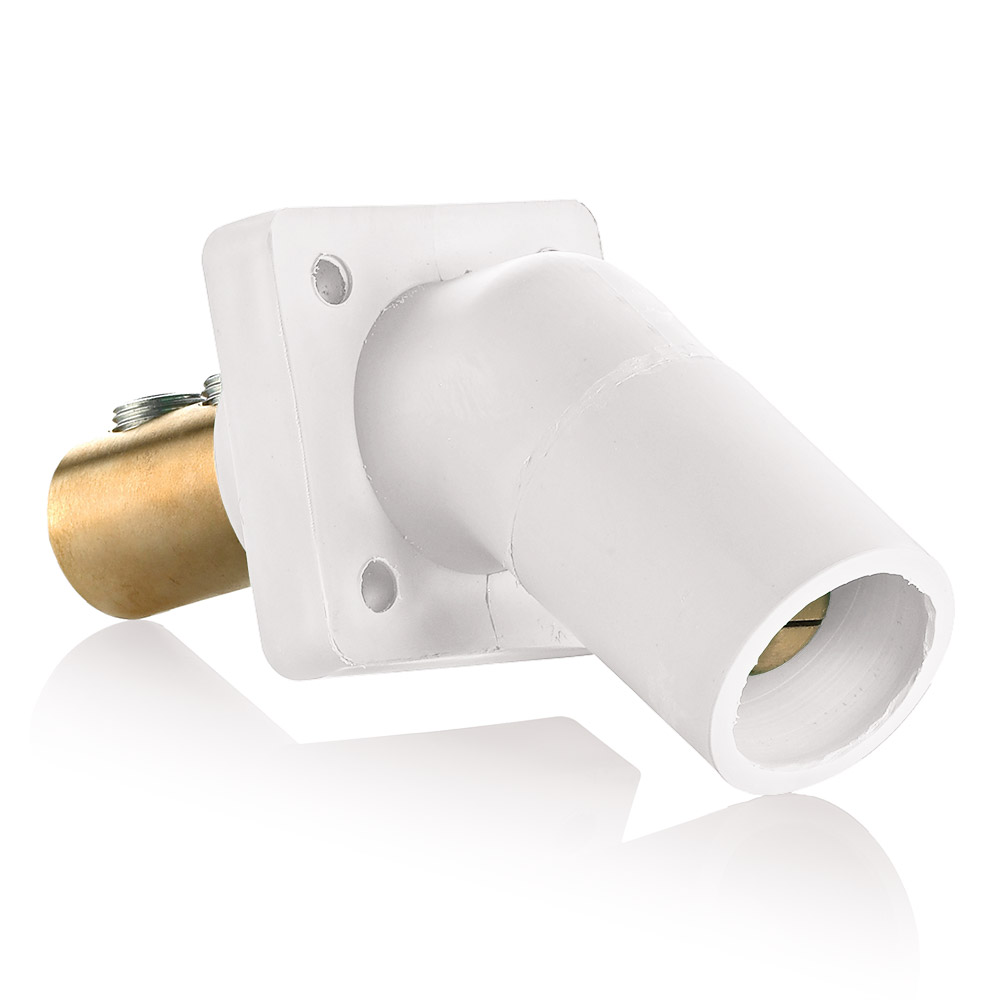

• Leviton’s Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
• Single or double set screw or crimp tube termination
• NEMA 3R rated for outdoor use when mated
• Designed with cylindrical profile to reduce snap
• UL: 1691, 508 – 35k A / 600V Short Circuit Current Rating
• Color-coding provides fast and easy phase identification
• Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications

Color Variations

• Blue

Specifications

• Country of Origin: Mexico
• RoHS Compliant: True

Electrical Specifications

• CSA Standard: 1691

Mechanical Specifications

• Cable Range: 2/0 – 4/0 AWG
• Connection Type: Double Set Screw
• Gender: Male

Product Features

• Color: White

Material Specifications

• Contacts: Brass
• Strain Relief: Copper Wire

Standards and Certifications

• NEMA Rating: Type 3R
• UL: 1691, 508 – 35k A / 600V Short Circuit Current Rating
