Features

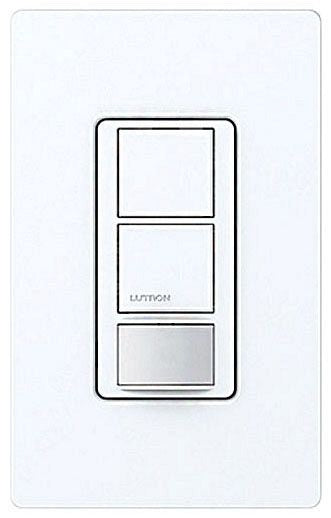

• Includes (1) Lutron Maestro Dual Circuit Motion 6A Sensor Switch; Gloss Finish
• Controls (2) individual circuits, each rated up to 6A lighting, 4.4A (1/6HP) fans motors, or 4.4A combined fan/light
• Ground or Neutral required; 120-277V
• (2) Single Pole circuits; Wire-lead installation
• Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers
• 180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage); Tamper-resistant lens
• Smart Ambient Light Detection (ALD) can be programmed so lights stay off if enough natural light is present in the room
• Easy button programming to customize timeout, sensor mode, or sensitivity
• Complies with Title 20/24 Section 110.9 for “automatic shutoff”
• Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
• Combines two switches with an in-wall, passive infrared (PIR) occupancy or partial-on sensor
• The sensor is intended for either control of two circuits or bi-level control of two circuits, as required by certain energy codes
• Passive infrared sensor with exclusive Lutron XCT Technology for minor motion detection
• 180 degree sensor field-of-view
• Tamper-resistant PIR lens
• U[ tp 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage
• Smart Ambient Light Detection (ALD) mode uses adaptive algorithm: Sensor learns the user's preferred light level over time
• Can be set to auto-on/auto-off or manual-on/auto-off
• Adjustable timeout for each circuit (1, 5, 15, or 30 minutes)
• Sensitivity adjustment (high/low)
• Switches all lighting loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent.

Standards and Certifications

• UL
• NOM
• TITLE20
• TITLE24
• cUL
• Title 20/24

Specifications

• Application: Lighting Control
• Body: Plastic
• Enclosure: Plastic
• Environmental Conditions: 0 to 90% humidity, non-condensing. Indoor use only.
• Load: 6 A@120 to 277 VAC lights/4.4 A@120 VAC fan
• Sensor: Yes
• Supply Voltage: 120 to 277
• Type: Occupancy sensor switch, dual-circuit, single-pole
• Mounting: Wallbox
• Sensing Range: 900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage
• Operating Temperature: 32 to 104 F
