Features

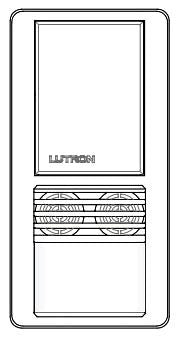

• Includes (1) Lutron Maestro Dual-Tech Motion 6A Vacancy Sensor Switch; Gloss Finish
• Single Pole Only; Rated to work with a single circuit up to 6A lighting, 4.4A (1/6HP) fans motors, or 4.4A combined fan/light
• Ground or Neutral required; 120-277V
• 180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage); tamper resistant lens
• Lutron Dual Sensing Technology: Ultrasonic and PIR (Passive-Infrared) for major, minor, fine and very fine motion detection
• Adaptive zero-cross switching algorithm for extended relay life
• Easy to read Programming buttons directly on sensor
• Complies with Title 20/24, ASHRAE 90.1, and IECC code requirements such as “automatic shutoff”
• Available in 10+ colors
• Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
• Applies Lutron's exclusive XCT Technology (Dual Tech) to the ultrasonic as well as the passive infrared technology in this sensor to create a product that can detect very fine motion, such as typing
• Includes all of the great features found in the rest of the Maestro sensor family, including: adaptive relay switching, smart ambient light detection, and simple button presses for changing settings
• XCT technology for major, minor, fine, and very fine motion detection
• 180 degree field-of-view
• Tamper-resistant PIR lens
• Up to 900 ft2 (81 m2) major motion coverage and 400 ft2 (36 m2) minor motion coverage
• Two ambient light detect (ALD) options: Learning ALD mode: uses adaptive algorithm
• Sensor learns user's preferred light level over time
• Fixed ALD mode: four selectable light level thresholds: Hi, Med, Low, Min
• Meets Title 24/Title 20 requirements for vacancy sensors
• Adjustable timeout for each circuit (1, 5, 15, or 30 minutes)
• Sensitivity adjustment: PIR (Hi, Med, Min), ultrasonic (Hi, Med, Low, Off)
• Switches all lighting loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent
• Switches fan loads at 120 V
• Does not require neutral wiring.

Standards and Certifications

• UL
• NOM
• TITLE20
• TITLE24
• Title 20/24 certified

Specifications

• Application: Lighting Control
• Body: Plastic
• Enclosure: Plastic
• Environmental Conditions: 0 to 90% humidity, non-condensing. Indoor use only.
• Load: 6 A@10-277 VAC lights/4.4 A (0.167 HP)@120 VAC fan
• Supply Voltage: 120 to 277
• Type: Vacancy sensor switch, single-circuit, single-pole
• Indicator: Smart ambient light detection (ALD)/Fixed ambient light detection
• Mounting: Wallbox
• Sensing Range: 900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage
• Operating Temperature: 32 to 104 F
