Description
Features
- Interconnects LX Lighting Control Panels and LX Network Devices
- Cable Carries Both Power and Data in a Single Twisted Pair

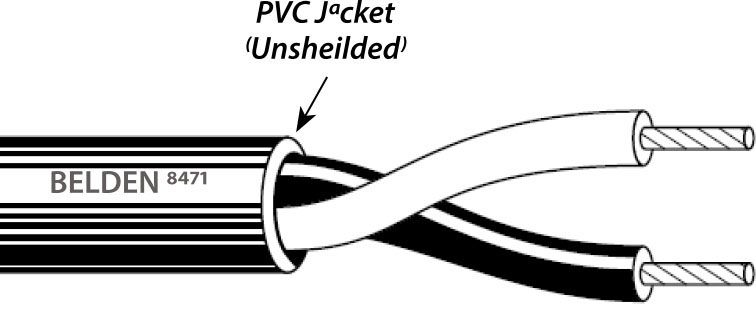

- Belden #8471 - Twisted Pair #16 Tinned Copper
- Single Cable Type Connects to All Types of LX Network Devices
- Echelon Guideline Compliant for LON Networks
- Riser Rated
- Connects to Terminal Blocks or with Twist on Connector
Additional Information
- Temperature Rating -20 to 80 Deg C
- Maximum Pulling Tension 61 Lb
- Minimum Bend Radius 5.1 Inch
Specifications
- Type: Riser
- Conductor Size: 16 AWG
- Cable Outer Diameter: 0.274 Inch
- Number of Conductor Pairs: 1
- Jacket Color: Gray
- Insulation Material: PVC
- Insulation Color Code: Black/White
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- Length: 100 Ft
- Approval: UL, CUL, CSA
- Series/Model: LX
Downloads
Specification/TechnicalWarranty
More Information
Manufacturer Catalog Number
LX8471CBL100
Weight
4.5000
Length
100
