Features

• Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
• One piece contacts reduce friction and overheating
• Unique cord clamp accepts wide range of cord sizes
• Rugged nylon construction resists impact, sunlight, chemicals, and rough use
• Industry exclusive limited lifetime warranty

Specifications

• Country of Origin: Mexico
• RoHS Compliant: True

Standards and Certifications

• ANSI: C-73
• CSA C22.2 No. 42: File LR-406
• NEMA: WD-6
• NOM: 057
• UL498: File E13393
• Warranty: Limited Lifetime Warranty Warranty

Mechanical Specifications

• Amperage: 20 A
• Cord Range: .385 - .780
• Current Interrupting: Certified for current interrupting at full rated current
• Dielectric Voltage: Withstands 2000V per UL498
• Grounding: Non-Grounding
• Pole: 3
• Product ID: Ratings and NEMA I.D. permanently marked on device
• Temperature Rise: Max 30C at 250 cycles OL at 200 pct rated current
• Terminal Accom.: 18-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Torque Range: 10-14 in-lbs
• Voltage: 125/250 VAC
• Wire: 3
• Wire Gauge: 16-10 AWG

Material Specifications

• Assembly Screws: Steel, Zinc Plated
• Back Cover: Thermoplastic
• Blades/Contacts: Solid Brass
• Body Material: Impact Modified Nylon
• Clamp Insert: Nylon
• Color: Black-White
• Cord-Clamp: Nylon
• Terminal Screws: Brass
• Wire Module: Nylon

Product Features

• Brand: Black and White

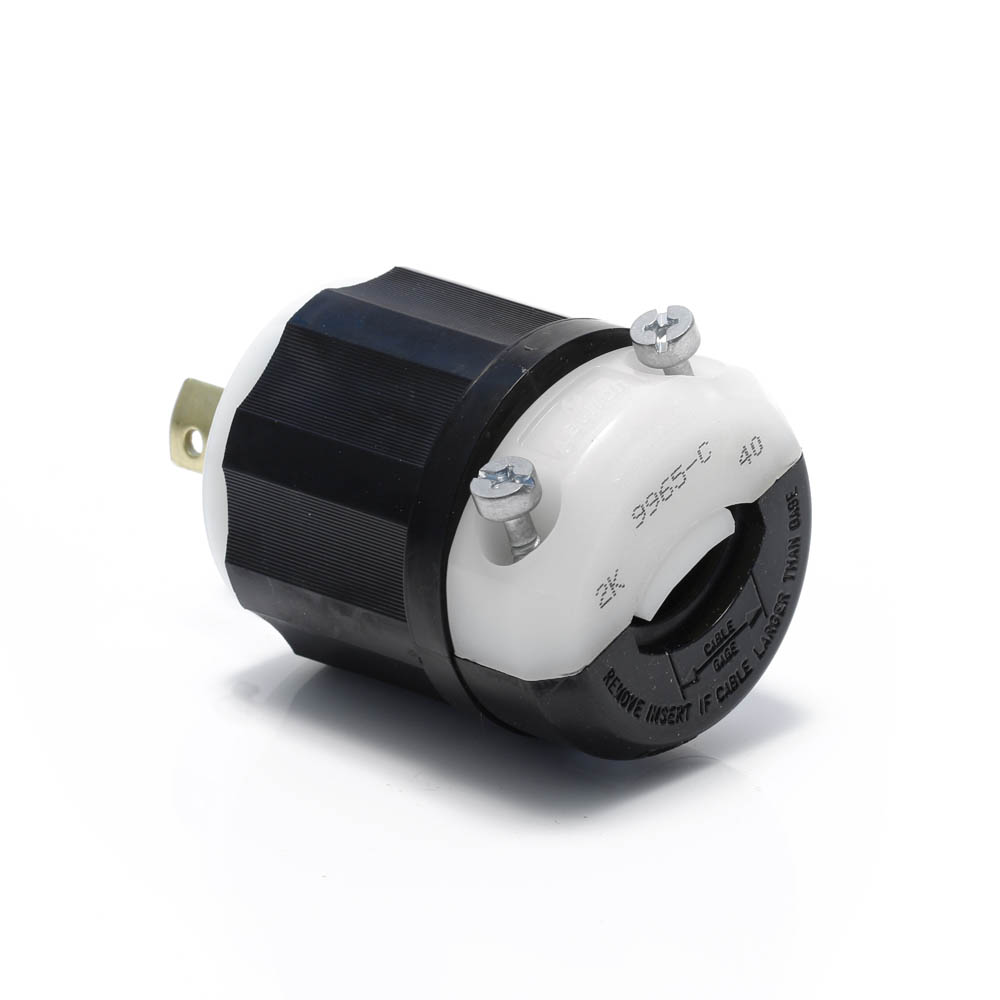

• Device Type: Locking Plug

Environmental Specifications

• Environment: Dry
• Flammability: Rated HB or better UL94
• Operating Temperature: -40°C to 60°C
