Features

• For fast assembly, Black & White devices feature:
•  Backed-out, color-coded brass terminal screws
•  Deep slotted triple drive face module and cord clamp screws
•  Deep wire wells with transparent wiring chambers
• Nylon face module features Amperage, Voltage, and NEMA configuration molded into face for easy identification and replacement.
• Fluted nylon housing makes it easier to grip with gloves and in debris-laden environments
• Thick-walled, super tough nylon housing resists abuse and impact
• Single piece external cord clamp includes catalogue number and NEMA configuration for easy identification

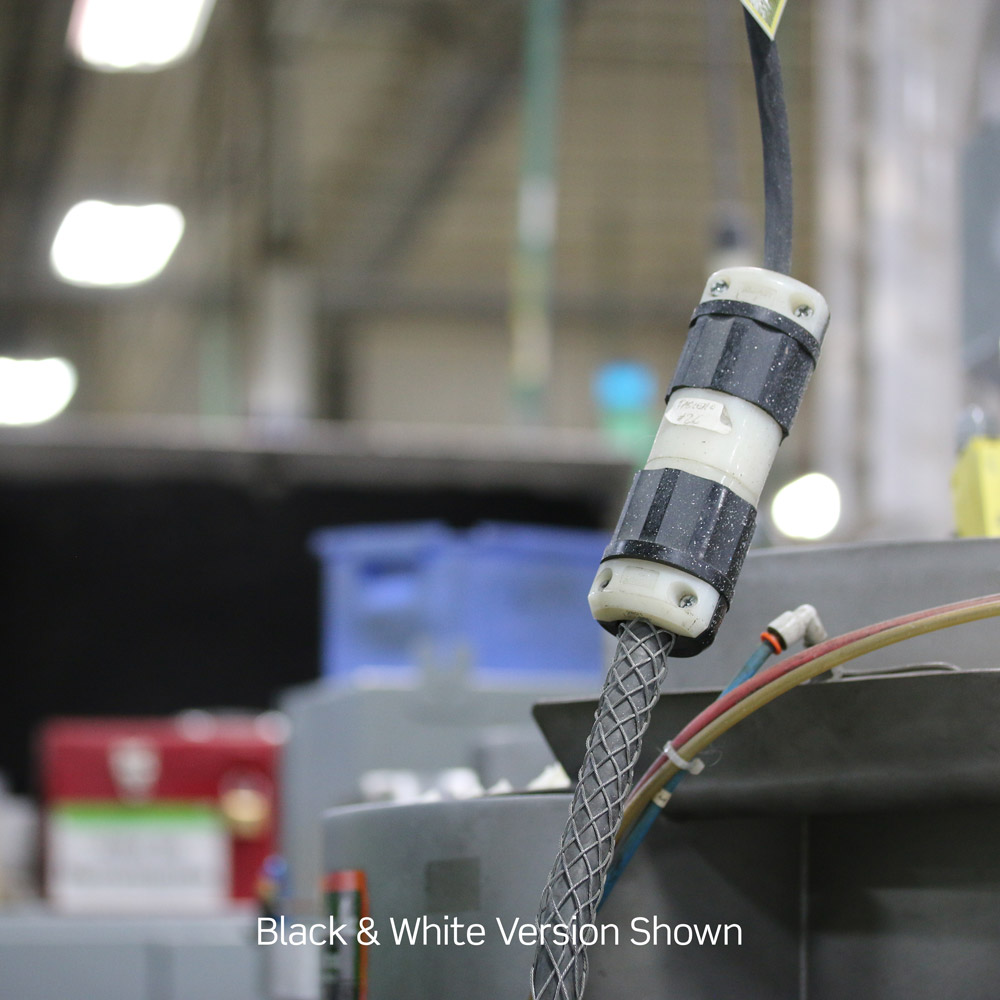

• External cord clamp accepts wire mesh connection grips
• Plugs ship with standard white and black cord clamp. Color-coded cord clamps available to identify amperage or equipment. Choose from blue, green, yellow, red, and orange
• RoHs Compliant
• Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
• One piece contactsreduce friction and overheating
• Unique cord clamp accepts wide range of cord sizes
• Rugged nylon construction resists impact, sunlight, chemicals, and rough use
• Industry exclusive limited lifetime warranty
• Made proudly in the USA

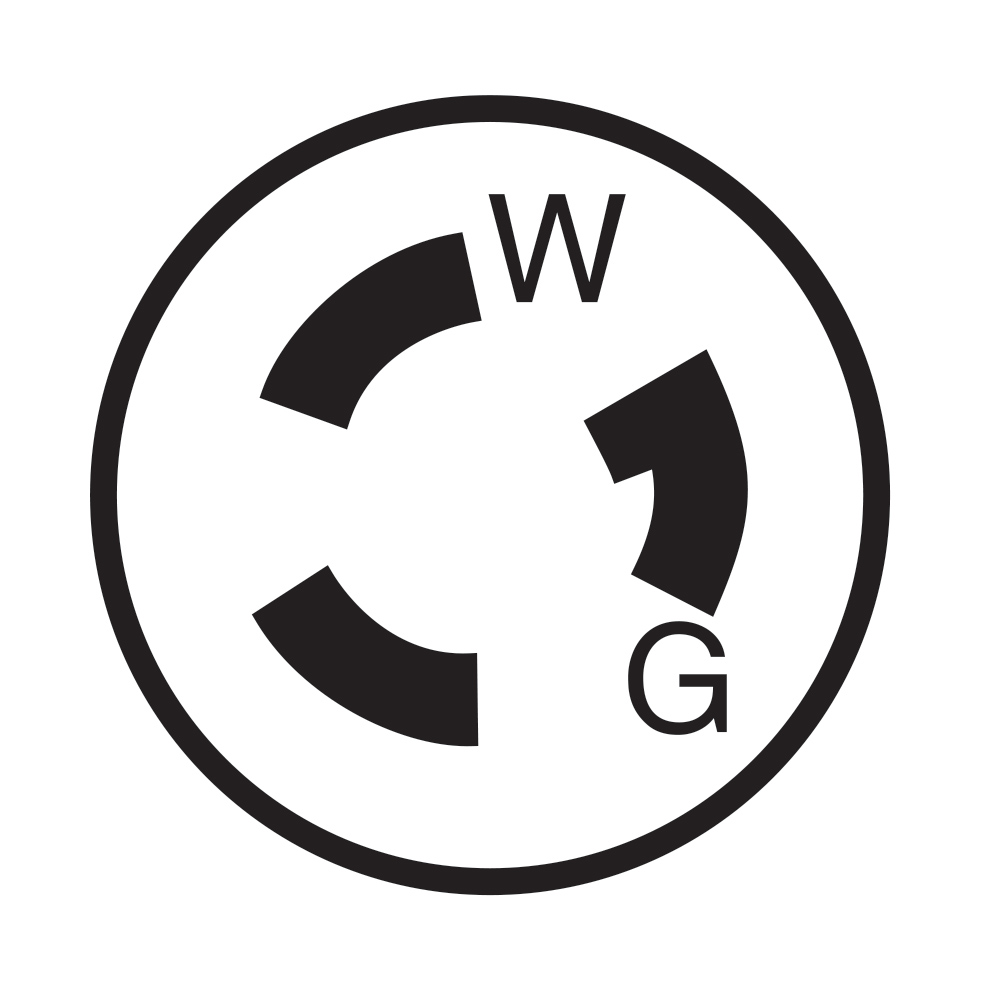

NEMA

• L7-15P

Specifications

• Country of Origin: Mexico
• RoHS Compliant: True

Product Features

• Amperage: 15 A
• Assembly Screws: Steel, Zinc Plated
• Blades/Contacts: Solid Brass
• Body Material: Impact Modified Nylon
• Brand: Black and White
• Color: Black-White
• Cord Range: .240 - .700
• Flammability: Rated HB or better UL94
• Grounding: Grounding
• NEMA: L7-15P
• Pole: 2
• Standards and Certifications: UL/CSA
• Voltage: 277 VAC
• Warranty: Limited Lifetime Warranty Warranty
• Wire: 3
• Wire Gauge: 18-10 AWG

Environmental Specifications

• Environment: Dry
