Features

• Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
• Heavy duty two-piece external cord clamp provides maximum strain relief
• Thermoplastic polyester interior provides heat resistance and impact strength
• Oversized contacts minimize operating temperature
• Standard Product

Specifications

• Country of Origin: Puerto Rico
• Current / Amperage Rating: 50 A
• Dimensions: 2.56 in x 2.56 in x 6.50 in
• Width: 2.700 in
• Each - Width: 2.700 in
• Height: 6.50 in
• Industry Standard(s): Certified to CSA C22.2 No.42;Listed to UL 498
• Length: 2.56 in
• Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better;Environmental - Operating Temperatures - Maximum continuous 75°C minimum –40°C (w/o impact);Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only
• Amperage Rating: 50 A
• Application: Heavy Duty Industrial
• Color: Black, White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Insulation: Insulated Body
• Number of Poles: 3-Pole
• Size: 2.56 in x 2.56 in x 6.50 in
• Special Features: Standard Product
• Standard: Certified to CSA C22.2 No.42;Listed to UL 498

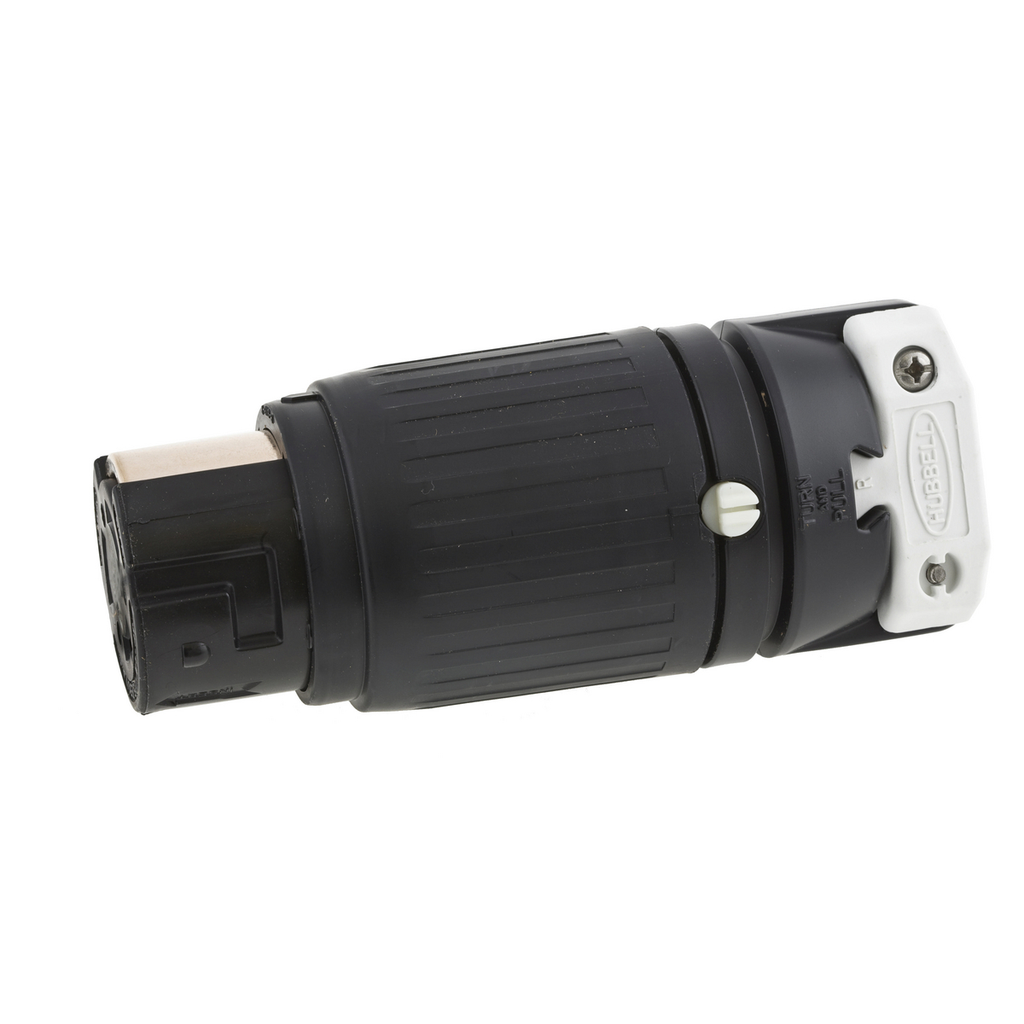

• Type: Connector Body
• Voltage Rating: 250 VDC/600 VAC
• Voltage Rating Description: 250 VDC/600 VAC
• Connectivity: Pressure Terminal Screws
• Dielectric Strength: Withstands 2,000V minimum
• Display Size: Standard
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Weight: 1.05 lb.
• Wire Size: #8 AWG to #4 AWG
• Class Code: A08
• Description - Invoice: LKG CONN, 3P4W, 50A 250VDC/600VAC
• Freight Class Code: 06168002
• Harmonization Code: 8536694020
• Image Actual Or Representative: A
• MSDS Flag: No
• Replaced Catalog Number: 7764C
• Sub Class Code: A08A150
• Cable Range: 0.830 - 1.250 in
• Cord Range: .830"-1.250"(21.08-31.75)
• Material - Mounting Hardware: Cord Mounted
• Cord Diameter: 0.830-1.250 in
• Current Rating: 50 A
• Material: Nylon
• Base Unit of Measure: EA
• BOX SIZE: 2.600x7.100x2.700 (in)
• Carton - Gross Weight per Pack: 11.000 lb.
• Carton - Number of Sub Packs: 10
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 783585237848
• Carton - Total Units: 10 EA
• Case Weight: 3.891 lb.
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Pallet Height: 48.000 in
• Pallet Length: 48.000 in
• Pallet Weight: 1530.000 lb.
• Pallet Width: 40.000 in

Certifications

• EU RoHS Indicator: No
