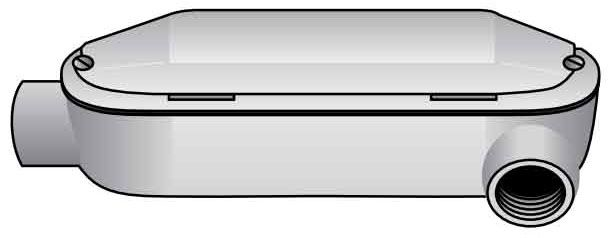

Description
Features
- Roomy Interiors More Wiring Space
- Smooth, Rounded Integral Bushings in Hubs Protect Conductor Insulation
- Accurately Tapped, Tapered Threads for Tight, Rigid Joints and Excellent Ground Continuity
- Suitable for Wet Location when Used with Gasketed Covers
Additional Information
- Applicable Standard Federal Specification A-A-50563, NEMA FB-1/FB-2.10
Specifications
- Constructional Feature: Hazardous Location, Raintight
- Configuration: LL
- Hub Size: 1 Inch
- Number of Hubs: 2
- Hub Location: 90 Deg
- Access Opening: Left Side
- Capacity: 31 Cu Inch
- Enclosure: Class I Div 2
- Material: Malleable Iron (Body), Neoprene (Gasket), Stainless Steel (Screw)
- Finish: Electro Zinc Plated Dichromate Epoxy Powder Coated
- Size: 8.94 Inch L x 3.25 Inch W x 2.38 Inch H
- Approval: UL 514A, CSA C22.2, NEC
- Series/Model: LL6X
Downloads
CatalogMore Information
Manufacturer Catalog Number
LL6X-100M
Weight
9.0000
Material
Malleable Iron (Body)
Finish
Electro Zinc Plated Dichromate Epoxy
Product Size
2.38 inches
