Features

• A minimum of .040 inch (40 mil) PVC coating is bonded to the exterior.
• Double coated with a nominal .002 inch (2 mil) blue urethane on both the interior and exterior, before PVC coating is applied.
• Pressure-sealing sleeves are designed to protect the connection.
• PVC coated connectors are available in straight, 45 degree and 90 degree configurations
• Ocal uses T&B Industrial Liquidtight fittings to insure quality installations.

Specifications

North American Specifications (UNSPSC)

• UNSPSC: 39121420 Liquid tight connectors
• IGCC: 4585 Liquid tight connectors
• Brand Name: Ocal

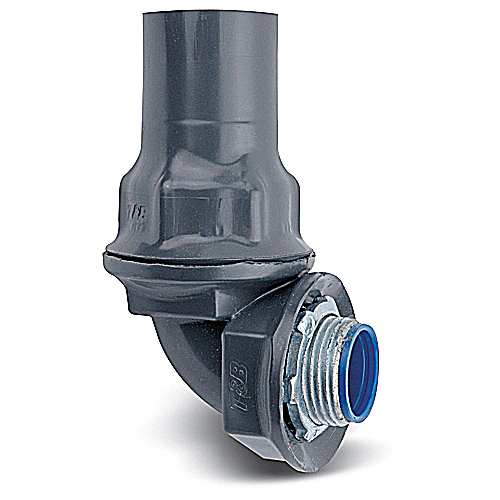

• Type: Liquidtight Conduit Fitting - 90 Degree
• Special Features: Pressure-Sealing Sleeves Protect the Connection
• Application: To Positively Bond Conduit to Box or Enclosure
• Size: 1/2 Inch/16mm
• Connection: 90 Degree
• Material: Steel
• Finish: PVC Coated
• Color: Dark Gray
• Environmental Conditions: Hazardous Locations

European Specifications (ETIM)

• ETIM: EC001180 Screw connection for protective metallic hose
• Nominal diameter: 16mm
• Nominal size in inch: 1/2 inch
• Model: 90°-elbow
• Revolving thread: N
• Construction type: External thread
• Material housing: Steel
• Surface protection: Other

Packaging

• Outer Quantity: 50
• Outer Dimensions (inches): 14.5x7.75x8
• Weight Uom: 0.36 lbs. Each
