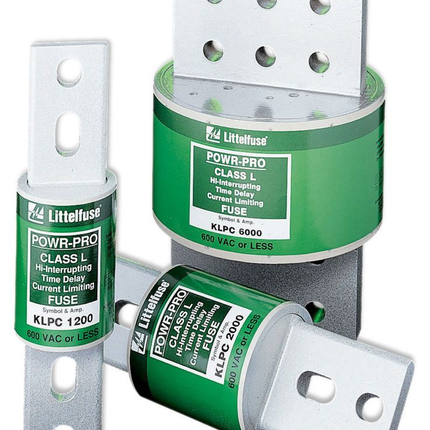

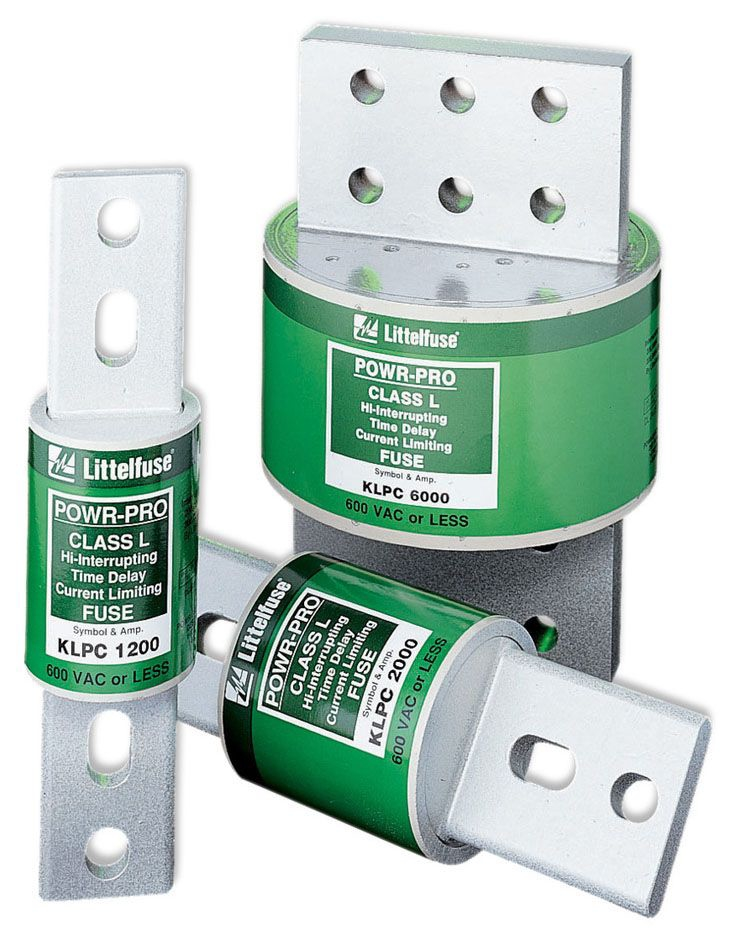

Features

• Eliminate Unnecessary Downtime
• KLPC Series Fuses Time Delay Withstands System Surges and Keeps Circuits in Service
• Best Protection for System Components
• Maximum Current Limitation Means Less Equipment and System Damage When Short Circuits Occur
• Reduced Damage Means that Electrical Service can be Restored Quickly, Reducing Costly Downtime and Often Permitting Equipment Repair Rather than Replacement
• Coordinates with Other System Components
• Eliminate Need to Oversize Fuses
• This May Permit the Use of Smaller Less Expensive Switches and Since the Lower Rated Fuses are More Current Limiting, Equipment Receives Even Better Protection

Additional Information

• Application Service Switch, Switchboard Main and Feeder, Bolted Pressure Contact Switch, Motor Control Center Main, Large Motor Branch Circuit, Molded Case Circuit Breaker Panelboard and Load Center

Specifications

• Type: Class L
• Characteristics: Time Delay
• Voltage Rating: 600 Volt AC, 480 Volt DC
• Current Rating: 800 Amp
• Interrupting Rating: 200 Kiloamp Symmetrical (AC), 20 Kiloamp (DC)
• Terminal Type: Blade
• Diameter: 2-1/2 Inch
• Length: 8-5/8 Inch
• Approval: UL 248-10, CSA, CE, QPL-WF-1814
• Series/Model: KLPC
