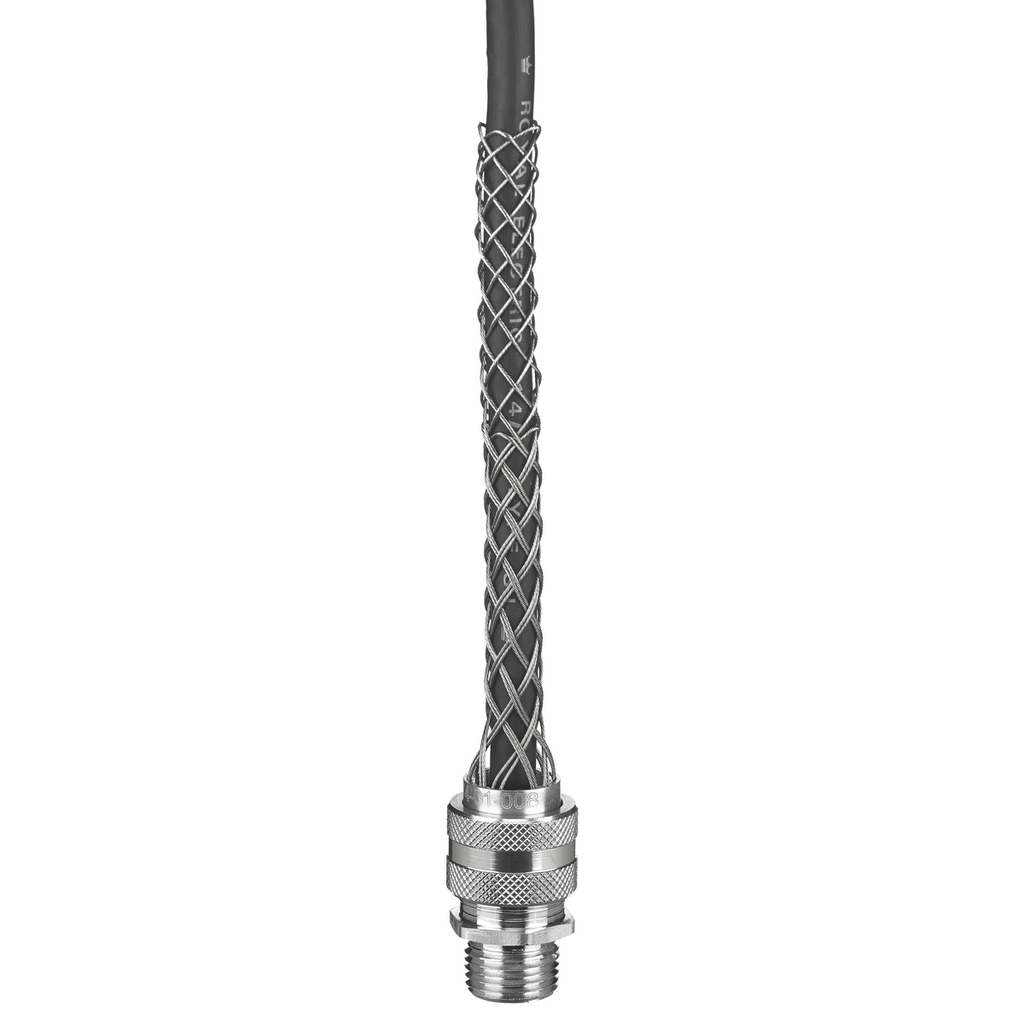

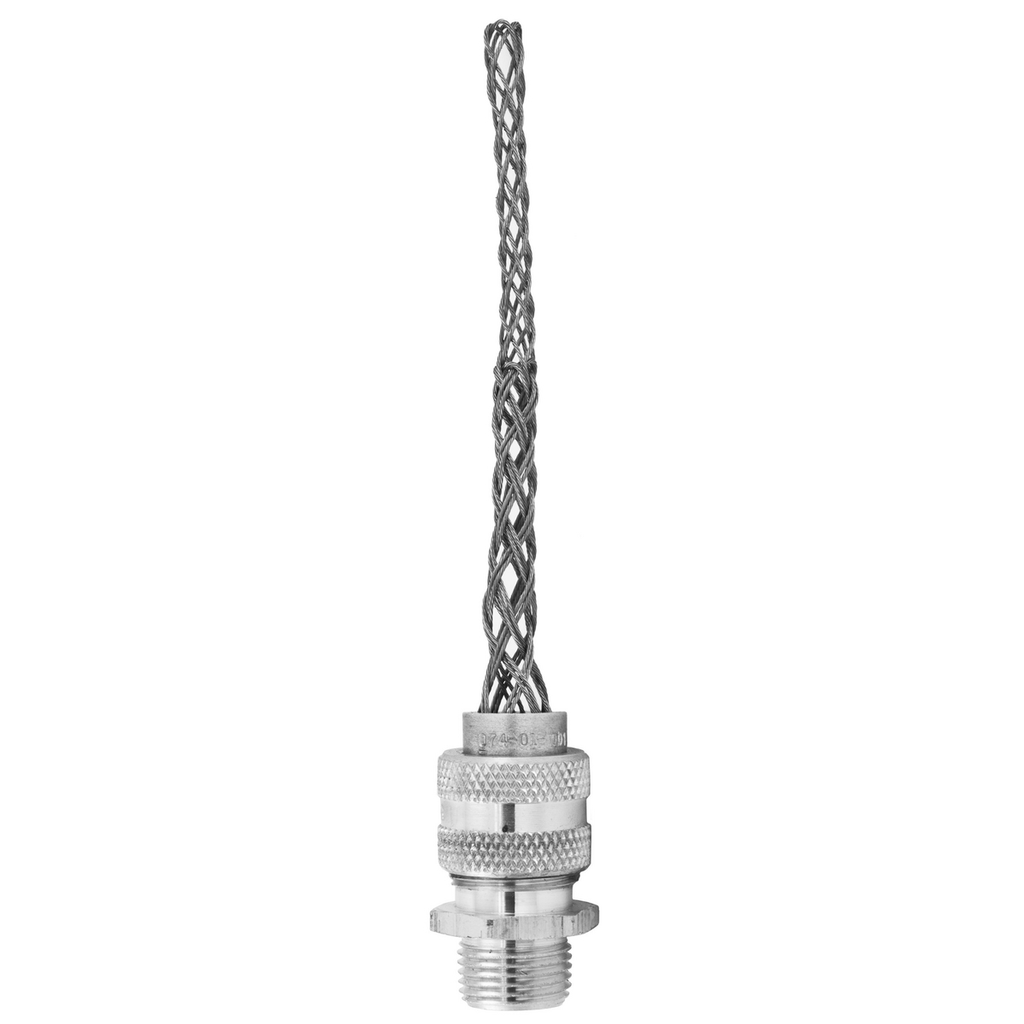

Kellems Wire Management Deluxe Cord Grips - Straight Male with Mesh

This Kellems Wire Management Deluxe Cord Grip is designed for secure cable management in electrical installations, suitable for use by electrical distributors and switchgear suppliers. It features a straight male thread and is intended for insulated cables within the conductor range of 1.562 to 1.687 inches. The product is well-suited for wire and cable applications requiring durable and corrosion-resistant fittings, with suitability for wet locations when used with a listed sealing ring between the box and fitting.

Specifications

• Application: Straight Male - Form 6
• Conductor Range: 1.562-1.687 in (3.97-4.28 mm)
• Number of Conductors: Single
• Material: Aluminum Fittings, Stainless Steel Mesh
• Color: Metallic
• Mounting: Locknut or Tapped Opening
• Width: 3.220 in
• Thread Size: 2" NPT
• Display Size: 2" NPT
• Temperature Rating: -30°F to 240°F (-34°C to 115°C)
• Environmental Conditions: Suitable for use in wet locations when used with a listed sealing ring between box and fitting
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: 07401034
• Made in USA: Yes
• UPC: 783585322155
• Industry Standard(s): UL Listed
• RoHS Compliance: Yes

Features

• Corrosion-resistant stainless steel mesh
• Multiweave grip provides cable arc-of-bend control
• Endless weave design allows easy cable and flexible conduit installation
• UL514B tray cable rated for dry locations
• Suitable for hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 of the NEC
